Whirlpool AR1200XW0 air conditioner heat pump Parts
Here are the diagrams and repair parts for Whirlpool AR1200XW0 air conditioner heat pump, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for AR1200XW0 Air Conditioner Heat Pump

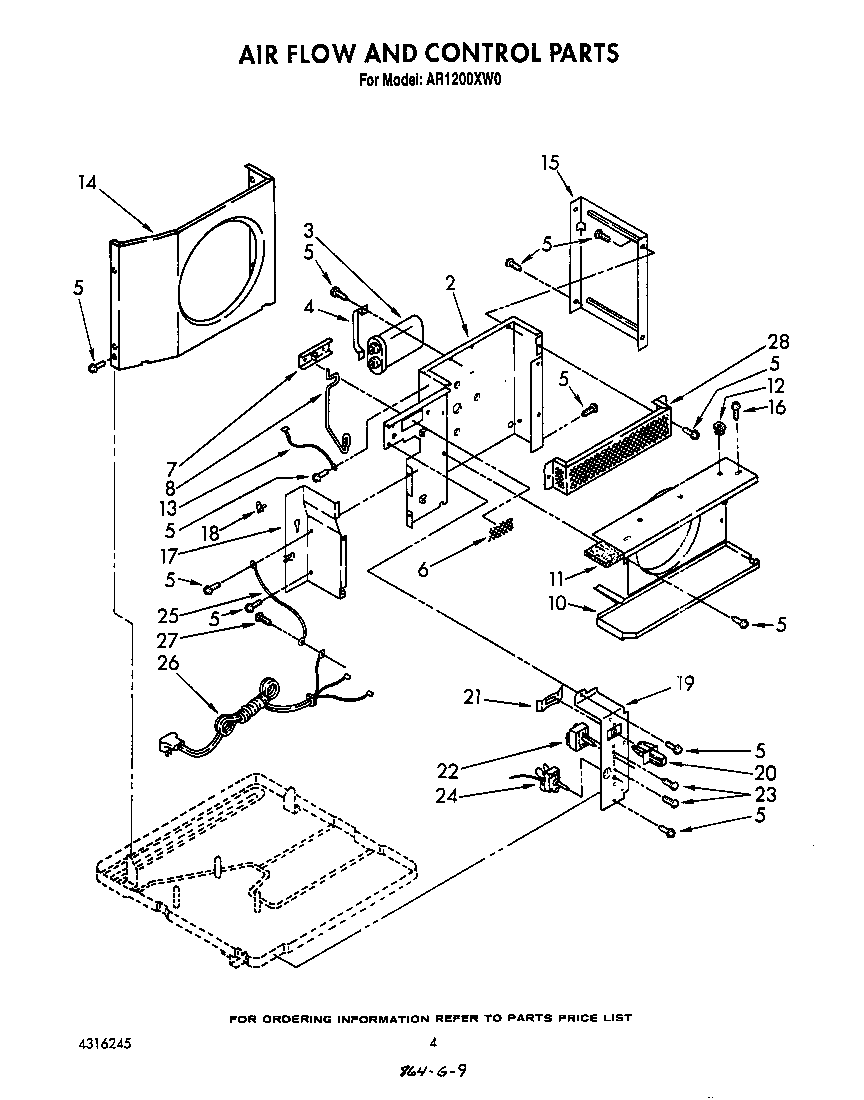

Air flow and control diagram
Shroud
Part #856037
The manufacturer no longer makes this part, and there's no substitute part

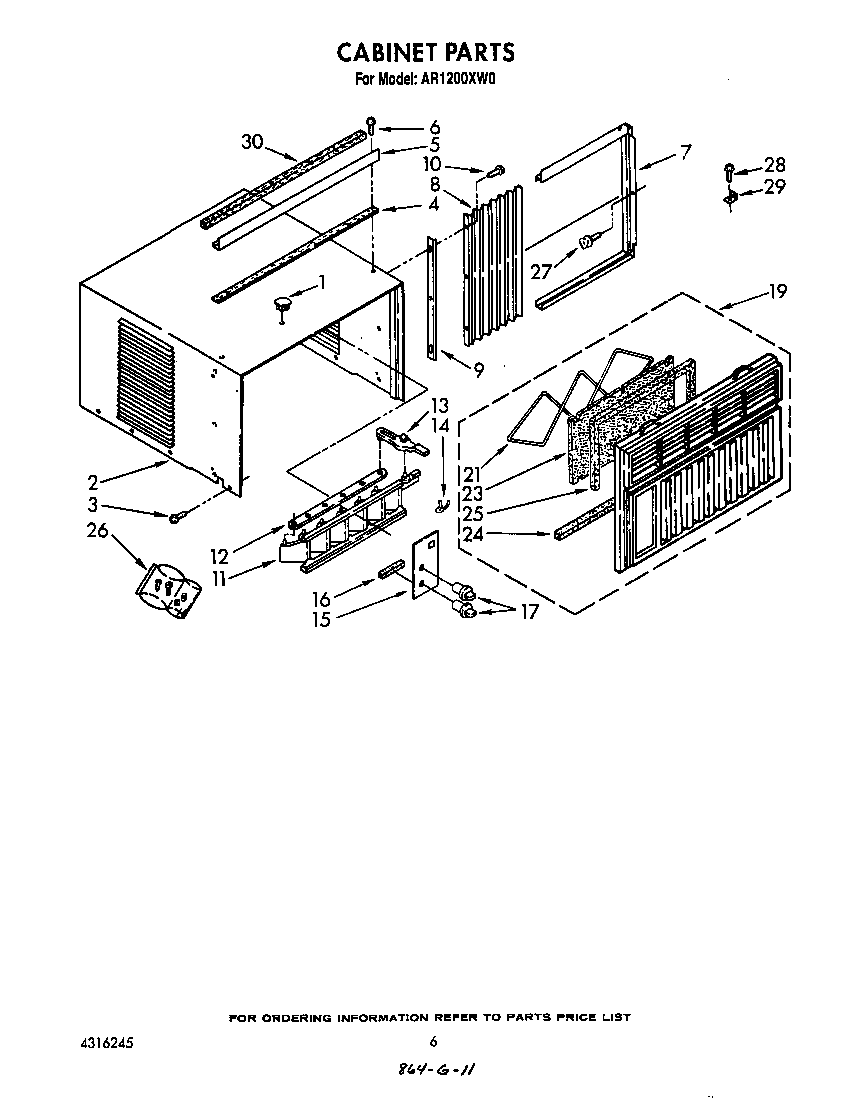

Cabinet diagram
Retainer
Part #644224
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Handle-lvr
Part #645887
The manufacturer no longer makes this part, and there's no substitute part

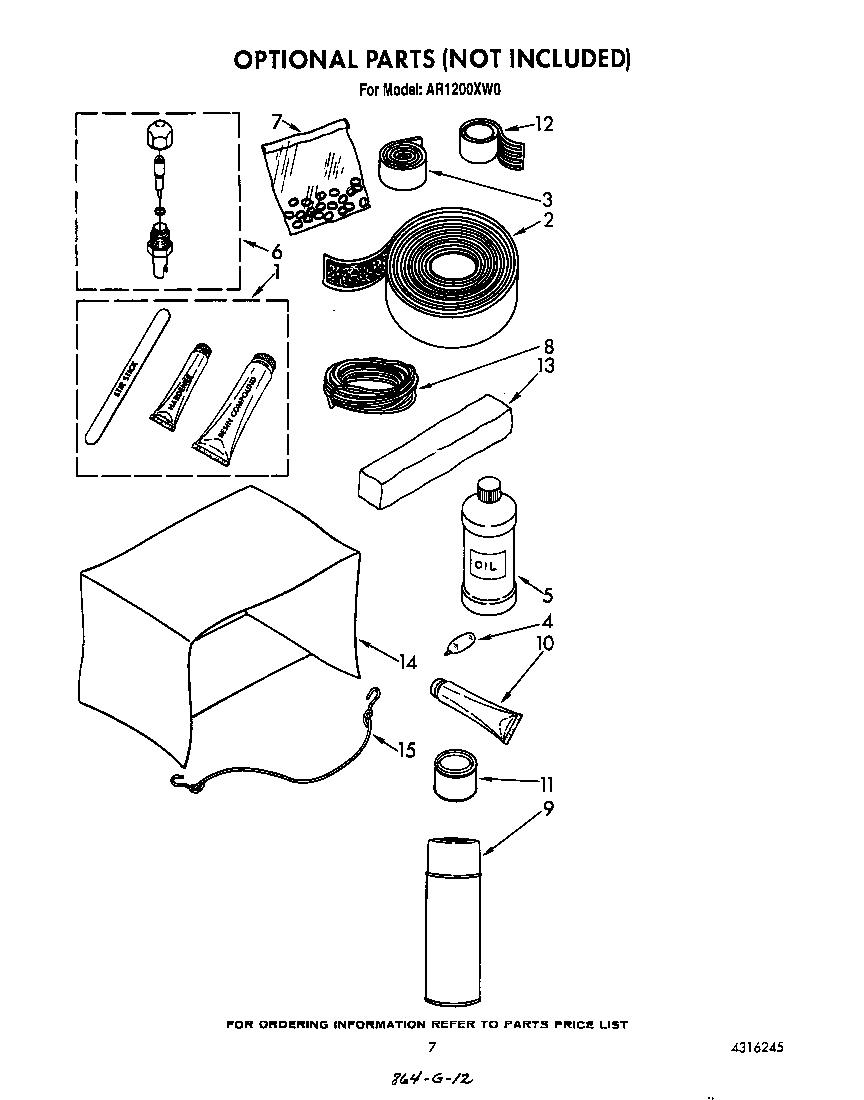

Lit/optional diagram
Lacquer
Part #485426
The manufacturer no longer makes this part, and there's no substitute part
Lit/optional diagram
Wire
Part #10875
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Guide, Operation
Part #LIT1158169
The manufacturer no longer makes this part, and there's no substitute part
Air flow and control diagram
Screen
Part #856929
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Installation Instructions
Part #LIT485706
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Fan Blade
Part #997904
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Fan Blade
Part #997887
The manufacturer no longer makes this part, and there's no substitute part
