Amana
Microwave/Hood Combo

Model # 8072.005 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 8072005 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Temperature Probe M90D23
#65

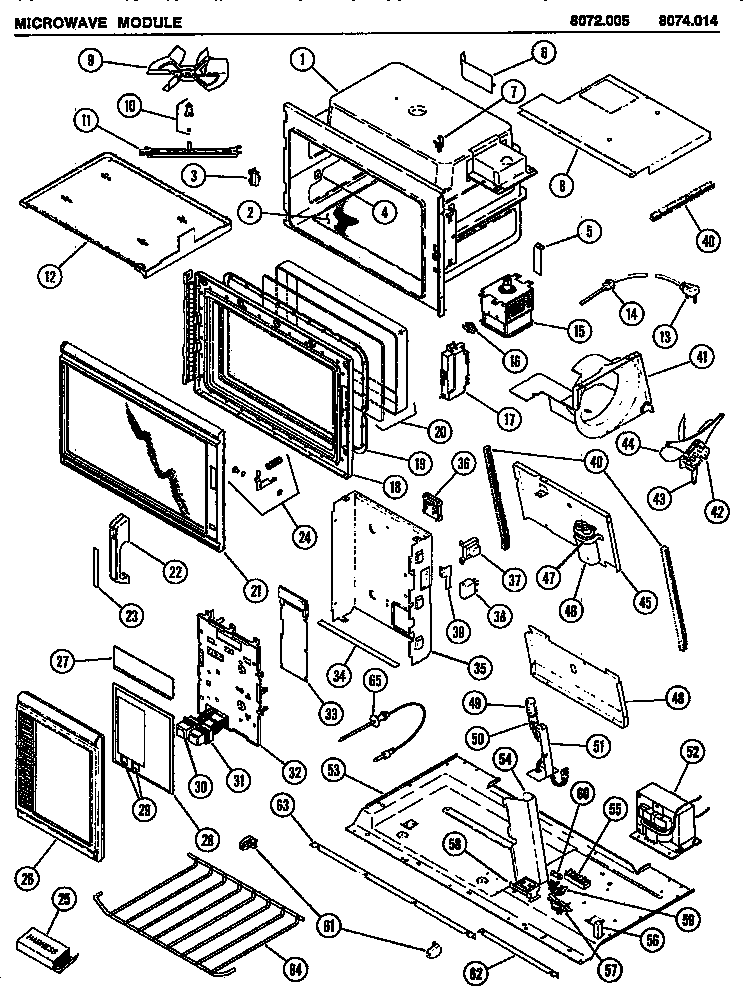

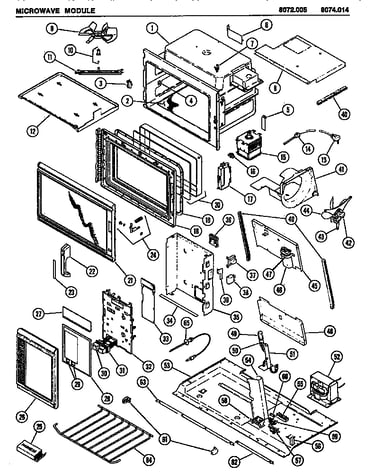

Microwave module diagram

Temperature probe

Part #M90D23

The manufacturer no longer makes this part, and there's no substitute part

Light Switch M14D265
#31A

Microwave module diagram

Light switch

Part #M14D265

The manufacturer no longer makes this part, and there's no substitute part

Nut M1D619
Nut

Part #M1D619

The manufacturer no longer makes this part, and there's no substitute part

Light Lens M51D57
#29A

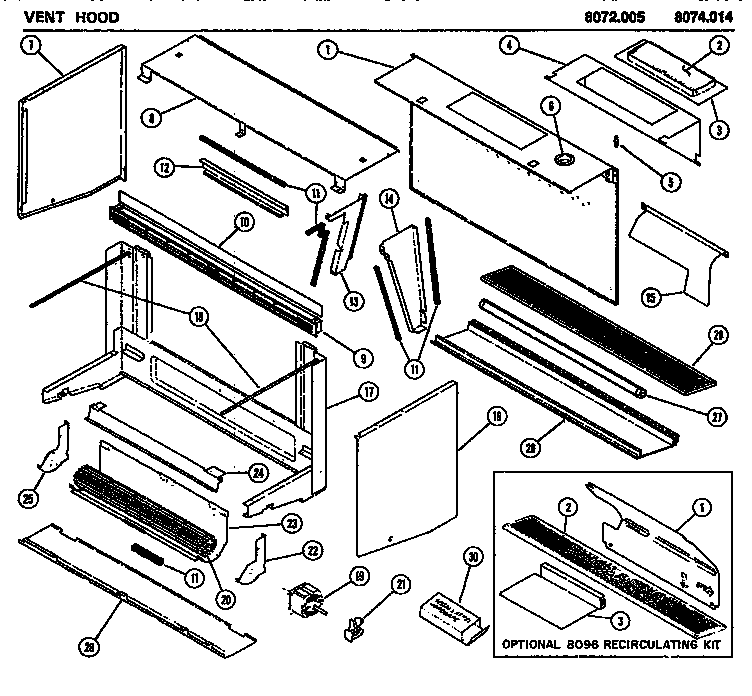

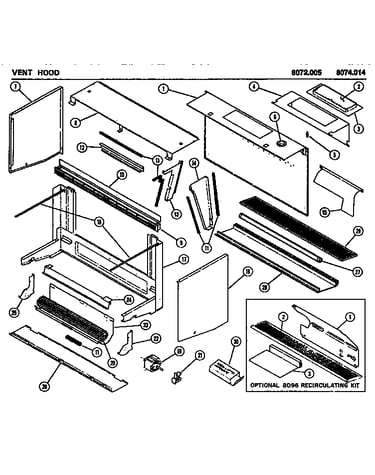

Vent hood diagram

Light lens

Part #M51D57

The manufacturer no longer makes this part, and there's no substitute part

Door Handle Insert M7D588
#23

Microwave module diagram

Door handle insert

Part #M7D588

The manufacturer no longer makes this part, and there's no substitute part

Damper Frame M20D241
#3

Vent hood diagram

Damper frame

Part #M20D241

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Baffle - Top M20D245
#12A

Vent hood diagram

Exhaust baffle - top

Part #M20D245

The manufacturer no longer makes this part, and there's no substitute part

Acrew, Panel Mounting - Back M1D475
Acrew, panel mounting - back

Part #M1D475

The manufacturer no longer makes this part, and there's no substitute part

Screw, Transformer Mtg M1D448
#30B

Vent hood diagram

Screw, transformer mtg

Part #M1D448

The manufacturer no longer makes this part, and there's no substitute part

1/4 Turn Rod M8D285
#18A

Vent hood diagram

1/4 turn rod

Part #M8D285

The manufacturer no longer makes this part, and there's no substitute part
