Model # S-420LP Official Weber gas grill

Here are the diagrams and repair parts for Official Weber S-420LP gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Igniter 70401
#7

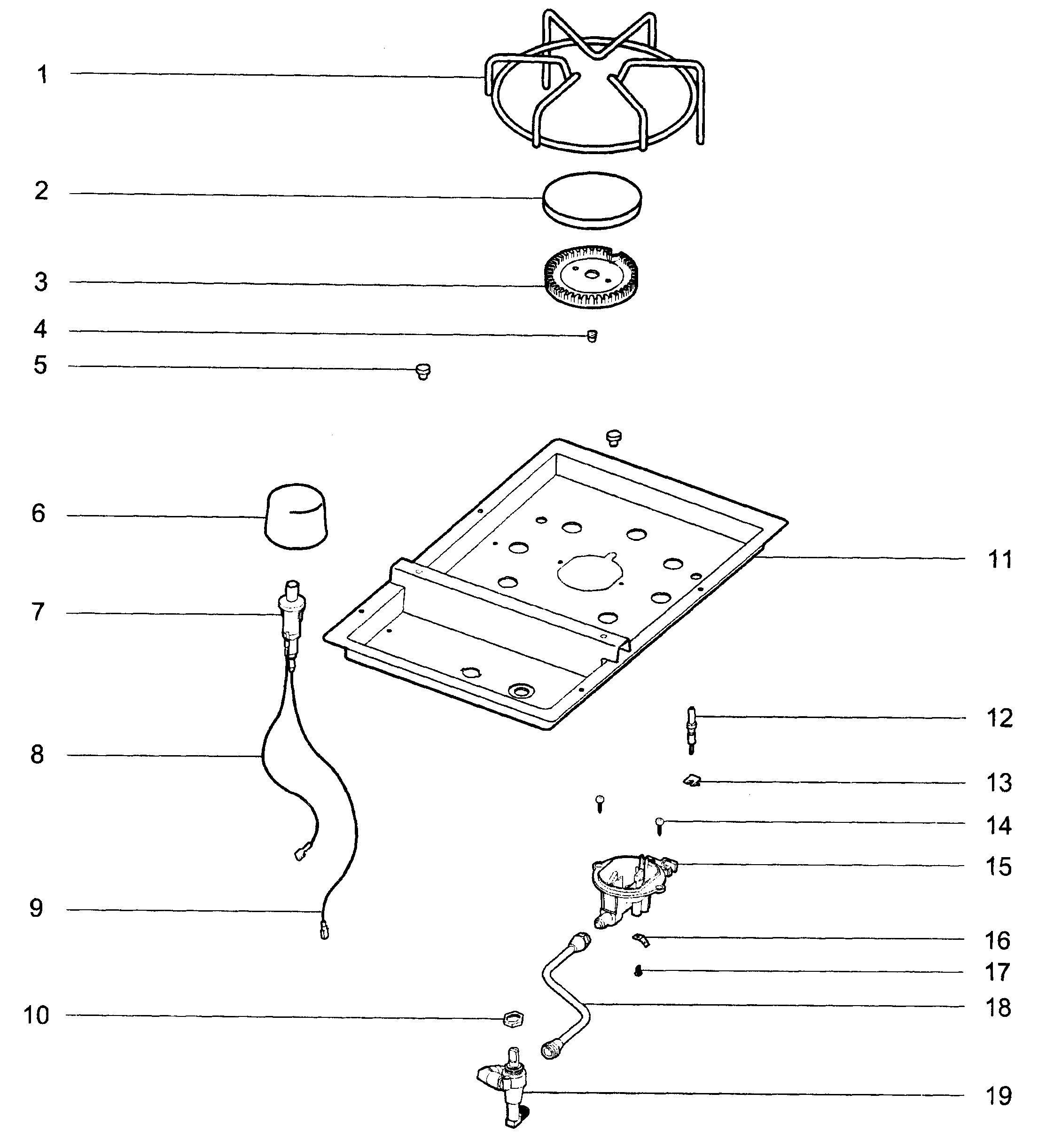

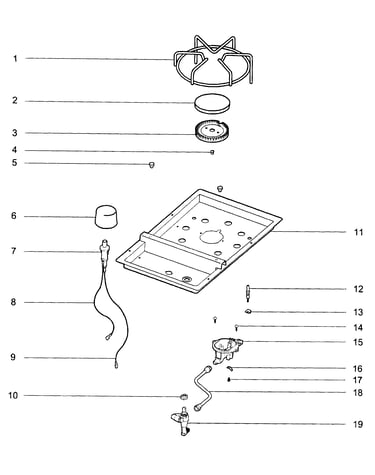

Side burner diagram

Igniter

Part #70401

The manufacturer no longer makes this part, and there's no substitute part

Operating Guide 89964
#NI

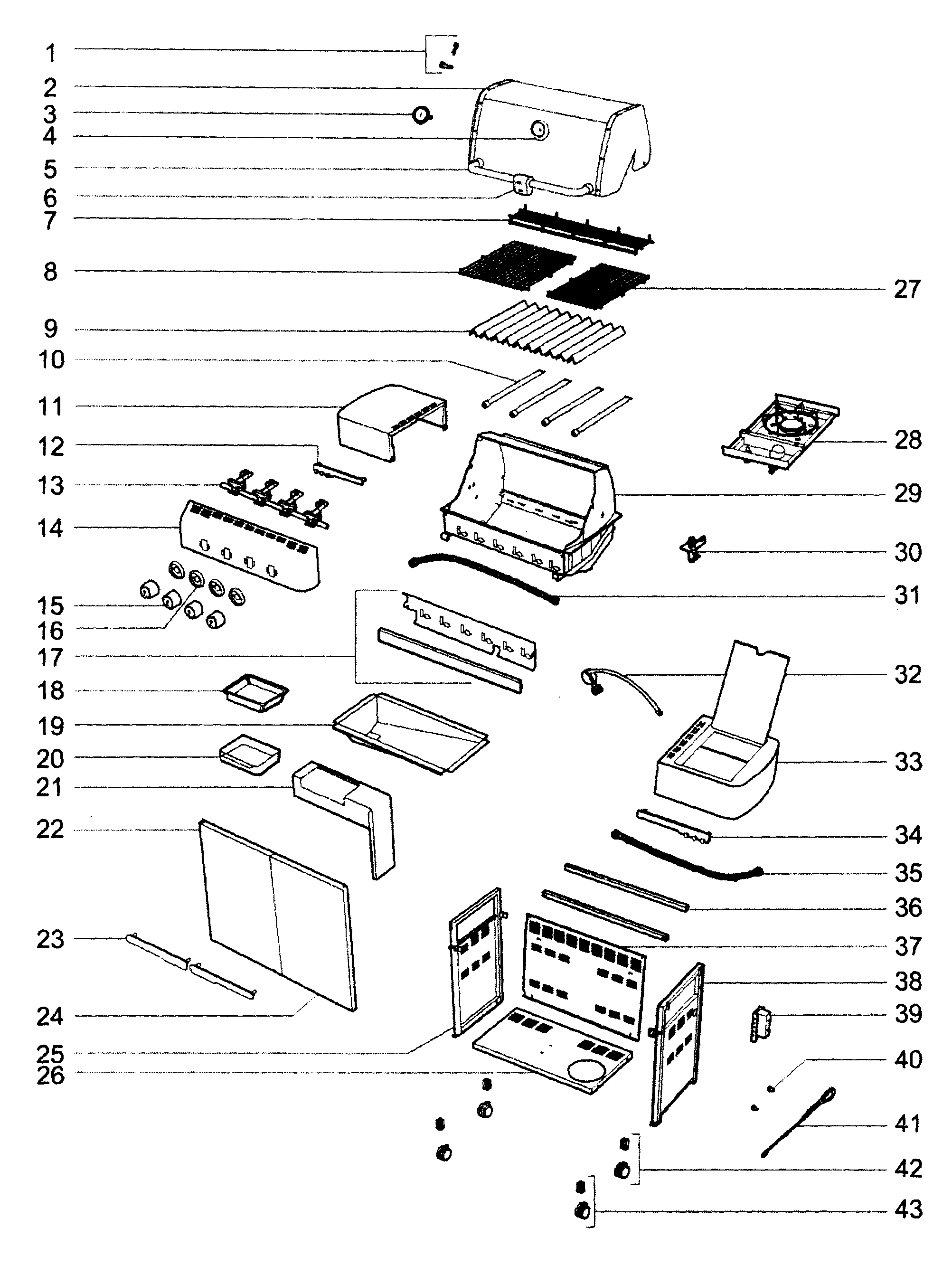

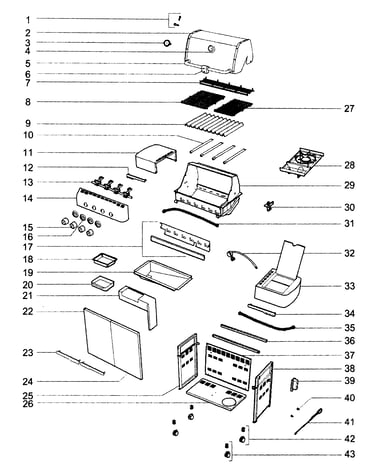

Grill parts diagram

Operating guide

Part #89964

The manufacturer no longer makes this part, and there's no substitute part

Flaverizer Bar, 70376
#9A

Grill parts diagram

Flaverizer bar,

Part #70376

The manufacturer no longer makes this part, and there's no substitute part

Hardware 88063
#21A

Grill parts diagram

Hardware

Part #88063

The manufacturer no longer makes this part, and there's no substitute part

Hose Regulator 25332
#32

Grill parts diagram

Hose regulator

Part #25332

The manufacturer no longer makes this part, and there's no substitute part

Clip 42300
#13

Side burner diagram

Clip

Part #42300

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 70332
#25A

Grill parts diagram

Door hinge

Part #70332

The manufacturer no longer makes this part, and there's no substitute part

Hardware 67765
#28A

Grill parts diagram

Hardware

Part #67765

The manufacturer no longer makes this part, and there's no substitute part

Griddle 7404
#NI

Grill parts diagram

Griddle

Part #7404

The manufacturer no longer makes this part, and there's no substitute part

Hardware 60481
#29B

Grill parts diagram

Hardware

Part #60481

The manufacturer no longer makes this part, and there's no substitute part
