Model # 38YXA030 SERIES330 Official Carrier heat pump

Here are the diagrams and repair parts for Official Carrier 38YXA030-SERIES330 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |

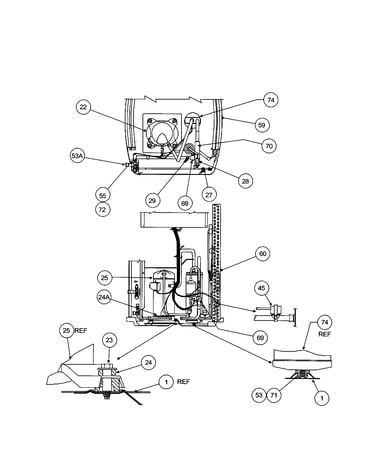

Contactor HN51KB024

#42

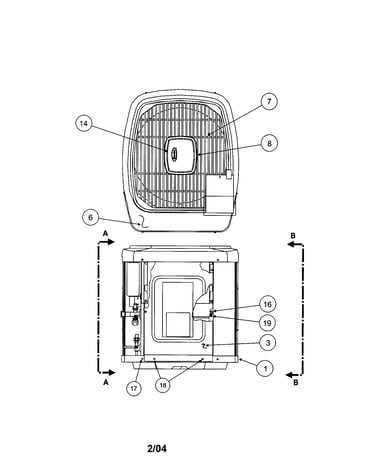

All parts diagram

Contactor

Part #HN51KB024

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Capacitor Strap 317739-302

#37

All parts diagram

Central air conditioner capacitor strap

Part #317739-302

$11.74
In Stock

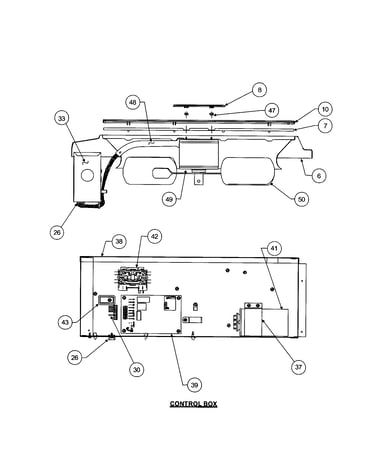

Defrost Pcb CESO130076-00

#39

All parts diagram

Defrost pcb

Part #CESO130076-00

Replaced by #HK32EA008

?
Manufacturer substitution
This part replaces CESO130076-00. Substitute parts can look different from the original.
$223.93 |
$10.00 OFF Phone Price : $233.93
In Stock
Check Valve 321097-201

#56

All parts diagram

Check valve

Part #321097-201

$33.47
In Stock
Delay Kit KAATD0101TDR

#91

All parts diagram

Delay kit

Part #KAATD0101TDR

$403.47
In Stock
Harness 317497-701

#35

All parts diagram

Harness

Part #317497-701

$52.62
In Stock

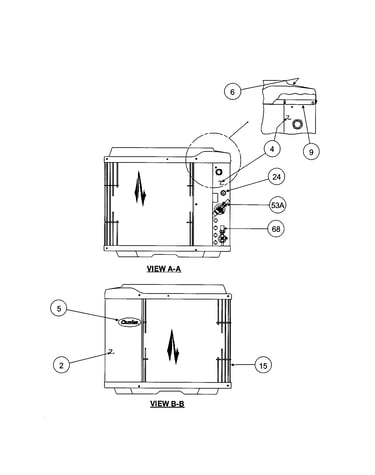

Inlet Grille 324591-402

#15

All parts diagram

Inlet grille

Part #324591-402

$374.33
In Stock
Piston Ret 319073-201
Piston ret

Part #319073-201

$11.69
In Stock
Relay HN61KK324

#136

All parts diagram

Relay

Part #HN61KK324

$109.26
In Stock
Washer Kit 324392-751
Washer kit

Part #324392-751

$31.89
In Stock
