Model #315270850 Craftsman drill

Here are the diagrams and repair parts for Craftsman 315270850 drill, as well as links to manuals and error code tables, if available.


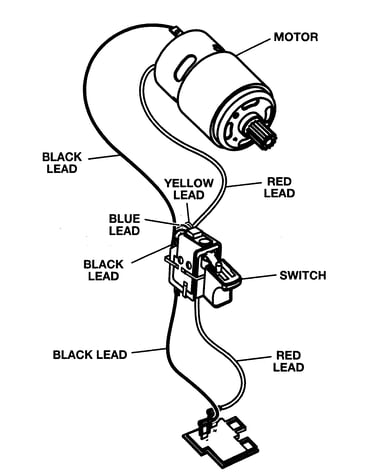

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 32 parts

    Ring

    #3

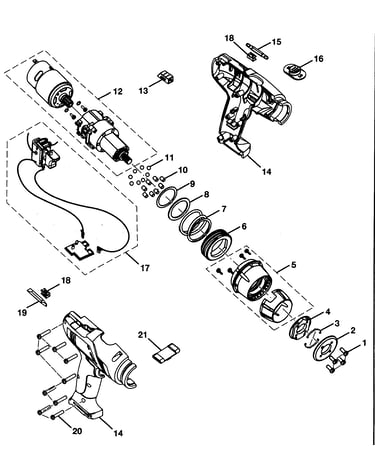

    Housing assy Diagram

    Ring

    Part #6399201
    This item is not returnable
    $2.31

    In Stock

    Owner's Manual

    #NI

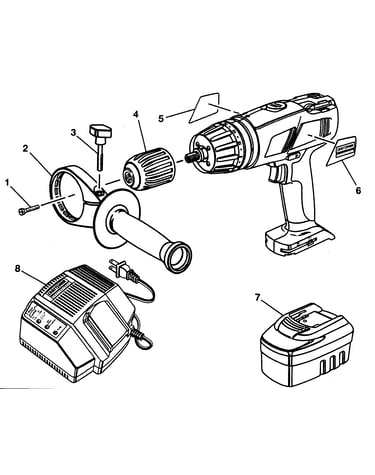

    Drill Diagram

    Owner's manual

    Part #983000726
    This item is not returnable
    $2.16

    In Stock

    Power Tool Steel Ball

    #11

    Housing assy Diagram

    Power tool steel ball

    Part #6721901
    This item is not returnable
    $2.71 |
    12% OFF MSRP:$3.09

    In Stock

    Drill Chuck Screw

    #1

    Drill Diagram

    Drill chuck screw

    Part #6613402
    This item is not returnable
    $5.20

    In Stock

    Power Tool Screw

    #20

    Housing assy Diagram

    Power tool screw

    Part #660208052
    ?
    Manufacturer substitution
    This part replaces 6620805. Substitute parts can look different from the original.
    This part replaces 6620805
    This item is not returnable
    $2.55

    In Stock

    Clip

    #18

    Housing assy Diagram

    Clip

    Part #6320601

    The manufacturer no longer makes this part, and there's no substitute part

    Bit

    #19

    Housing assy Diagram

    Bit

    Part #670824-003
    ?
    Manufacturer substitution
    This part replaces 670824003. Substitute parts can look different from the original.
    This part replaces 670824003
    This item is not returnable
    $2.16

    In Stock

    Mounting Plate

    #2

    Housing assy Diagram

    Mounting plate

    Part #6840401

    The manufacturer no longer makes this part, and there's no substitute part

    Holder Spring

    #4

    Housing assy Diagram

    Holder spring

    Part #540379001

    The manufacturer no longer makes this part, and there's no substitute part

    Lever Assembly

    #13

    Housing assy Diagram

    Lever assembly

    Part #3000904

    The manufacturer no longer makes this part, and there's no substitute part
