Model # 47195610 Official Craftsman high-pressure power washer

Here are the diagrams and repair parts for Official Craftsman 47195610 high-pressure power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Gun Hose 7362
#32

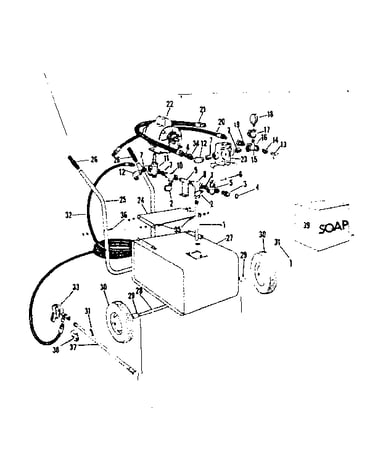

Replacement parts diagram

Gun hose

Part #7362

The manufacturer no longer makes this part, and there's no substitute part

Hypro Pump C5320
#23

Replacement parts diagram

Hypro pump

Part #C5320

The manufacturer no longer makes this part, and there's no substitute part

Fitting M12F34
#3

Replacement parts diagram

Fitting

Part #M12F34

The manufacturer no longer makes this part, and there's no substitute part

Sub-asb., S. S. Stem & S. S. Guide 7482ASB.
#13

Spray gun diagram

Sub-asb., s. s. stem & s. s. guide

Part #7482ASB.

The manufacturer no longer makes this part, and there's no substitute part

Extension 30GB-O
#37B

Replacement parts diagram

Extension

Part #30GB-O

The manufacturer no longer makes this part, and there's no substitute part

Soap Tank 7346W
#27

Replacement parts diagram

Soap tank

Part #7346W

The manufacturer no longer makes this part, and there's no substitute part

Swivel Assembly 10314
#38

Replacement parts diagram

Swivel assembly

Part #10314

The manufacturer no longer makes this part, and there's no substitute part

Pressure Gauge 9G
#18

Replacement parts diagram

Pressure gauge

Part #9G

The manufacturer no longer makes this part, and there's no substitute part

Inlet Body 7533SS
#12

Spray gun diagram

Inlet body

Part #7533SS

The manufacturer no longer makes this part, and there's no substitute part

Extension 18GB-O
#37A

Replacement parts diagram

Extension

Part #18GB-O

The manufacturer no longer makes this part, and there's no substitute part
