Model # TL10.0I-3 Official Weider auto incline programmable treadmill

Here are the diagrams and repair parts for Official Weider TL100I-3 auto incline programmable treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

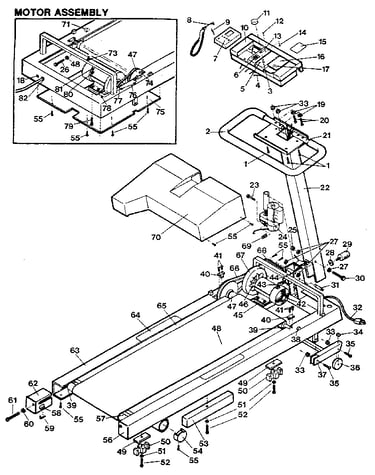

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |

Silicone,uni 070307

#NI

All parts diagram

Silicone,uni

Part #070307

Replaced by #219170

?
Manufacturer substitution
This part replaces 070307. Substitute parts can look different from the original.
BEST SELLER
$23.69
17% OFF Phone Price : $28.69
In Stock
Wire,14-3,79 031147
#32

Unit parts diagram

Wire,14-3,79

Part #031147

Replaced by #031229

?
Manufacturer substitution
This part replaces 031147. Substitute parts can look different from the original.
$11.39
15% OFF Phone Price : $13.39
Back Order
Treadmill Washer 014063
#60

Unit parts diagram

Treadmill washer

Part #014063

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Treadmill Walking Belt Alignment Tool Holder 016028
#58

Unit parts diagram

Treadmill walking belt alignment tool holder

Part #016028

This item is not returnable
In Stock
Screw,hhcs,b 013270
#52

Unit parts diagram

Screw,hhcs,b

Part #013270

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014041
#80

Unit parts diagram

Exercise equipment flat washer

Part #014041

This item is not returnable
In Stock
Pin,clevis,3 015046
#23

Unit parts diagram

Pin,clevis,3

Part #015046

This item is not returnable
In Stock
Exercise Equipment Screw 013206
#61

Unit parts diagram

Exercise equipment screw

Part #013206

This item is not returnable
In Stock
Pivot Washer, 1/2-in 014101
#27

Unit parts diagram

Pivot washer, 1/2-in

Part #014101

This item is not returnable
In Stock
Nut,h Nyl Lo 012081
#25

Unit parts diagram

Nut,h nyl lo

Part #012081

This item is not returnable
In Stock
