Model # 5KFPM770SWH0 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid 5KFPM770SWH0 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 63 parts |

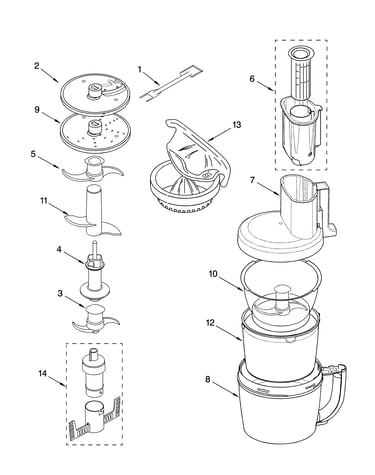

Attachment parts diagram

Food processor scraper

Part #8211760

$25.79 |

16% OFF Phone Price : $30.79

In Stock

Qty

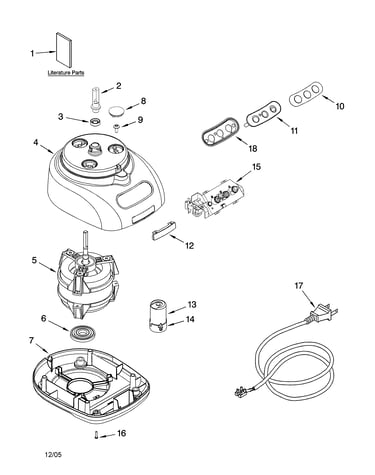

Motor and housing parts diagram

Sleeve shaft

Part #8211849

The manufacturer no longer makes this part, and there's no substitute part

Attachment parts diagram

Pusher

Part #8212020

The manufacturer no longer makes this part, and there's no substitute part

Motor and housing parts diagram

Housing

Part #8212068

The manufacturer no longer makes this part, and there's no substitute part

#8B

Attachment parts diagram

Bowl

Part #8212066

The manufacturer no longer makes this part, and there's no substitute part

#1A

Motor and housing parts diagram

Repair parts list

Part #8212052

The manufacturer no longer makes this part, and there's no substitute part

Attachment parts diagram

Bowl cover

Part #8212062

The manufacturer no longer makes this part, and there's no substitute part

#11A

Motor and housing parts diagram

Cover

Part #8212094

The manufacturer no longer makes this part, and there's no substitute part

#NI

Attachment parts diagram

Bowl

Part #8212059

The manufacturer no longer makes this part, and there's no substitute part

Motor and housing parts diagram

Cover

Part #8212084

The manufacturer no longer makes this part, and there's no substitute part
