Model #HDR-CX190/R Sony digital camcorder

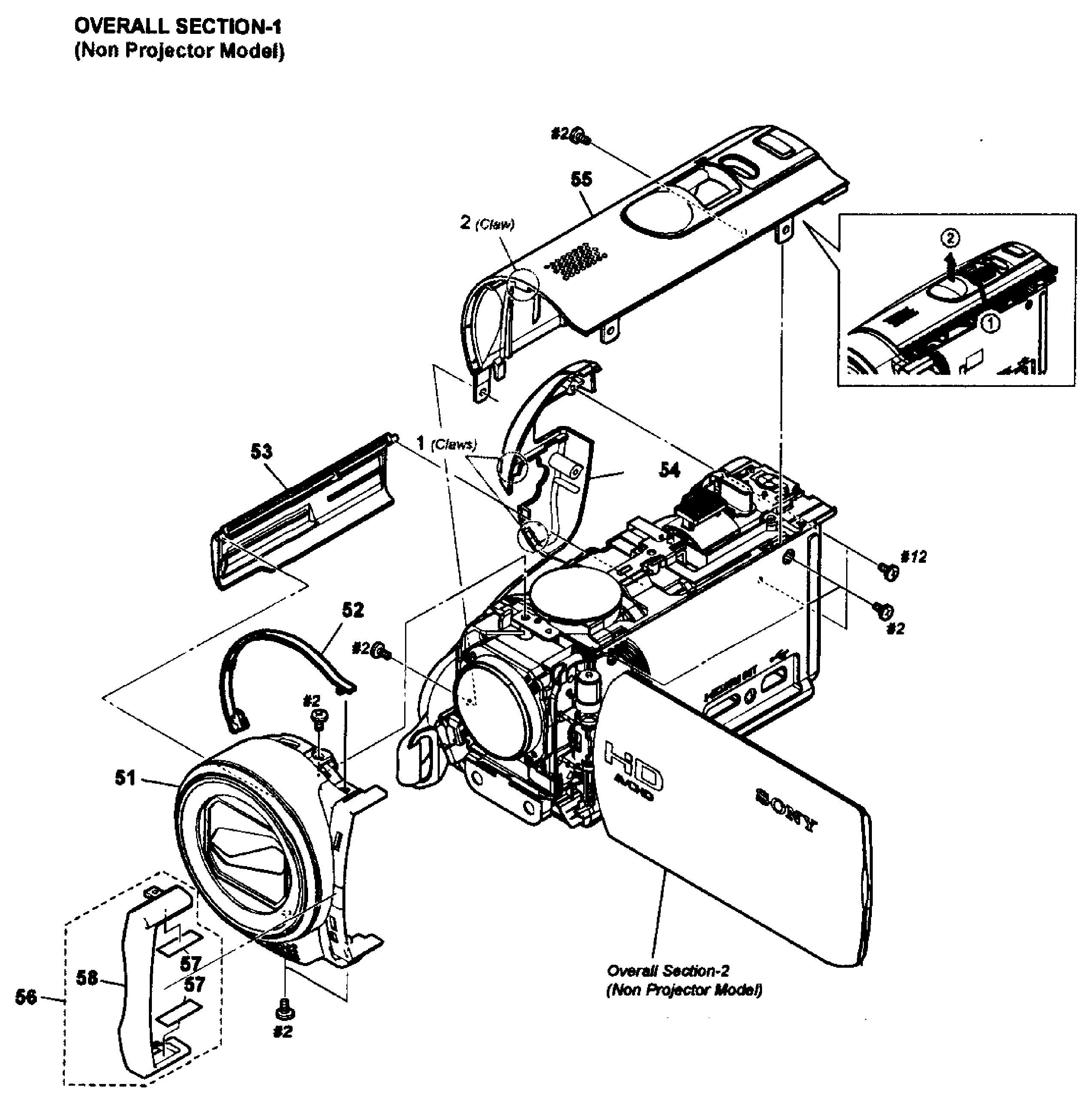

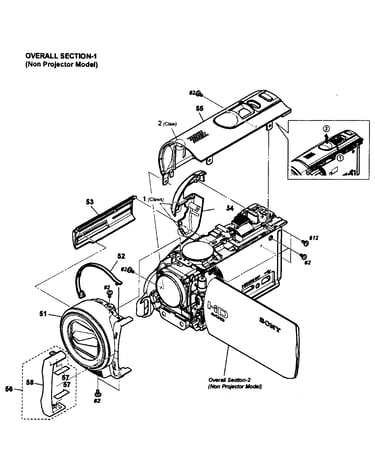

Here are the diagrams and repair parts for Sony HDR-CX190-R digital camcorder, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 78 parts

Harness

#215

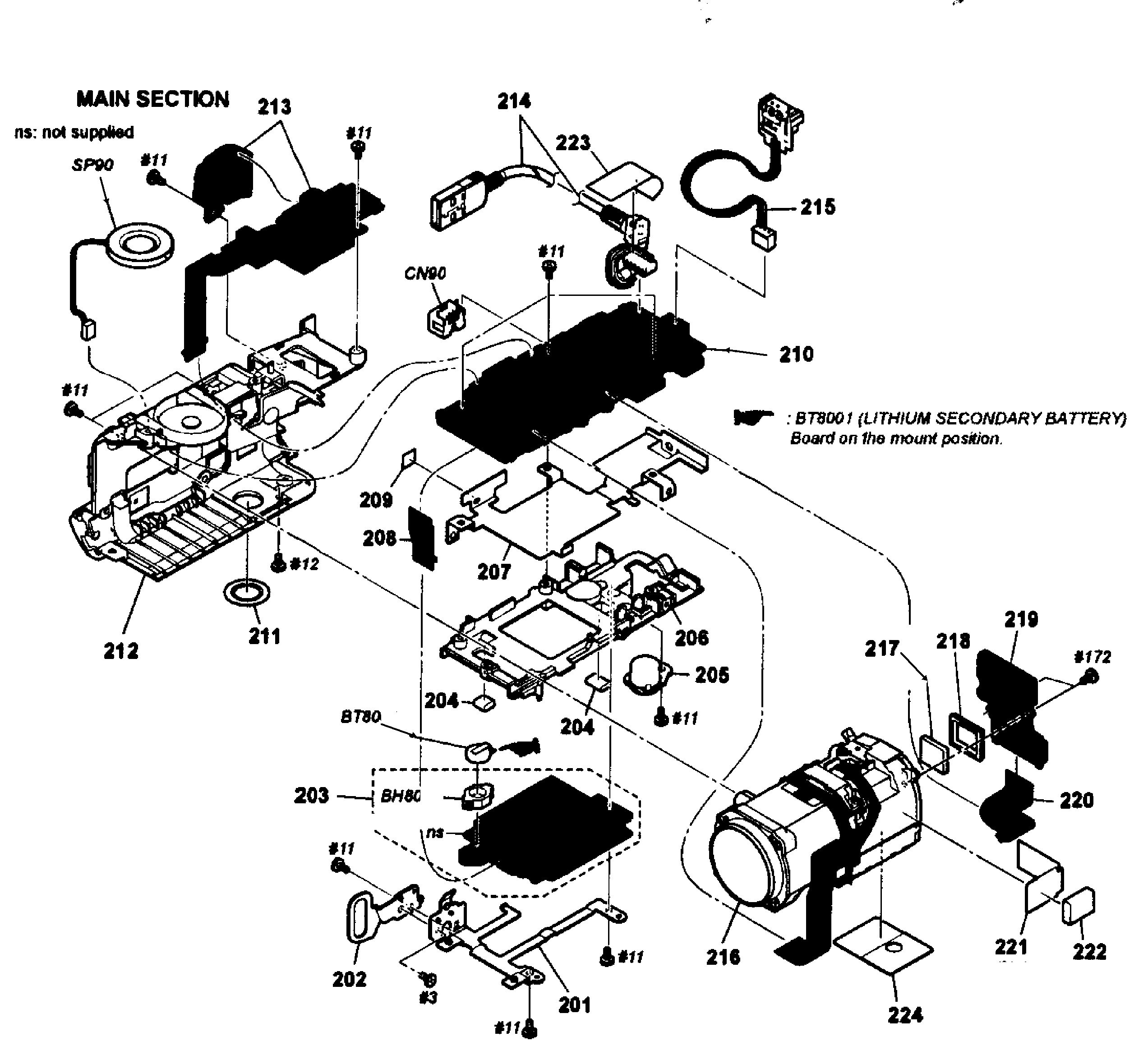

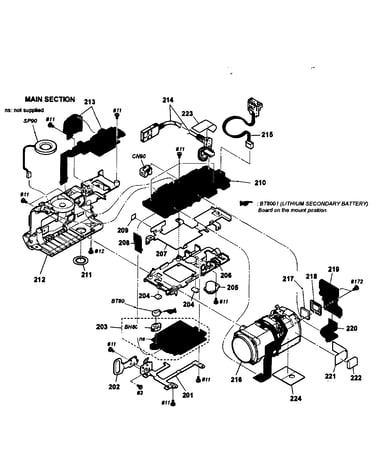

Main assy Diagram

Harness

Part #196812611
$15.95

In Stock

Magnet

#359

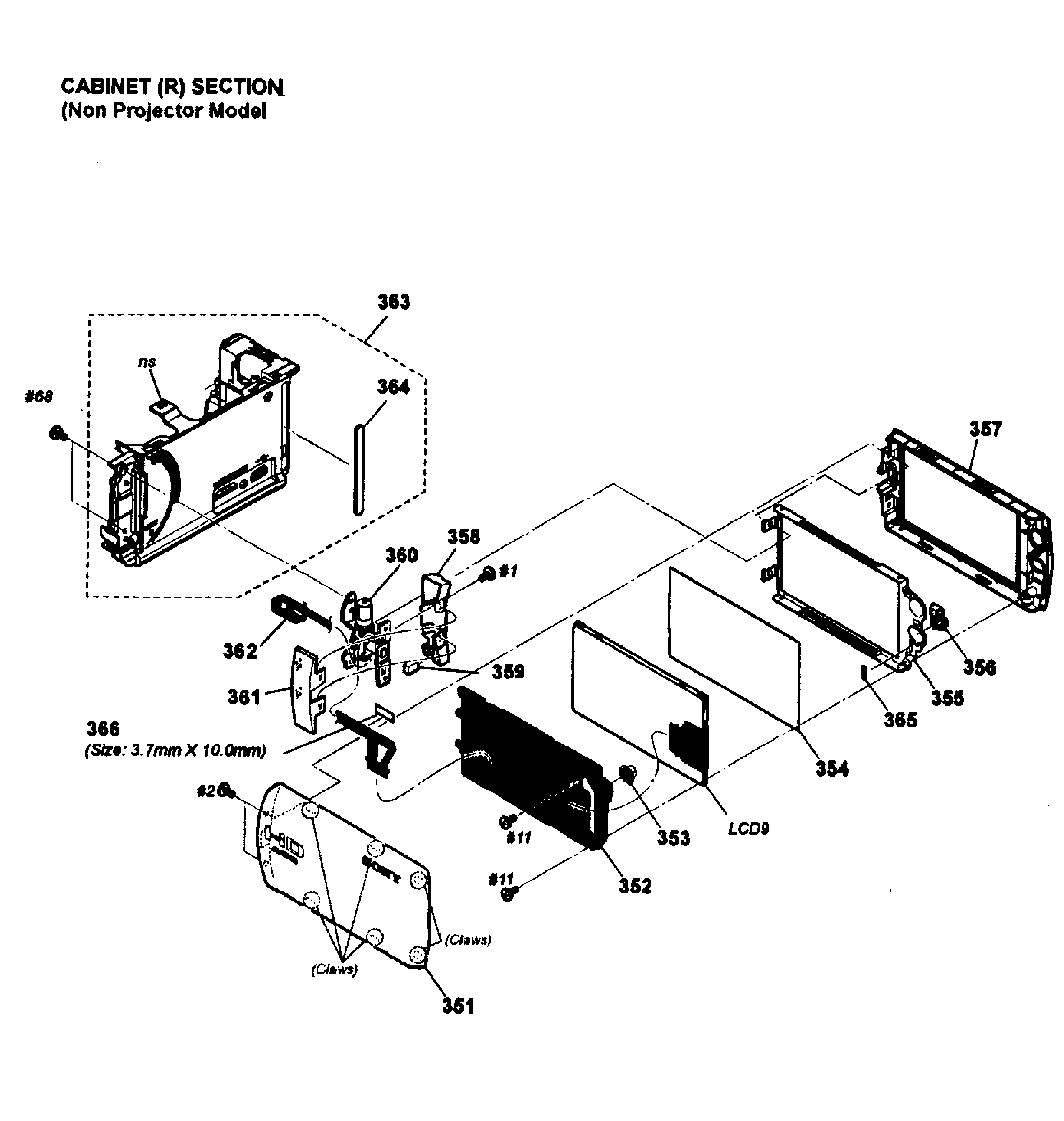

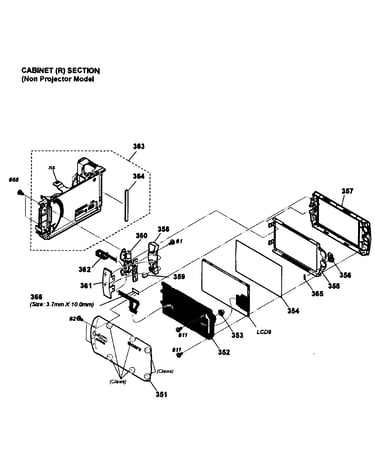

Right/lcd assy Diagram

Magnet

Part #147150411
$10.31

In Stock

Sw Block

#213

Main assy Diagram

Sw block

Part #148997211
$123.73

In Stock

Plate, Ms

#201

Main assy Diagram

Plate, ms

Part #441211801
$8.74

In Stock

PCB - MS475

#203

Main assy Diagram

Pcb - ms475

Part #A1851283A
$43.30

In Stock

Joystick

#353

Right/lcd assy Diagram

Joystick

Part #420971501
$8.03

In Stock

Cabinet

#357

Right/lcd assy Diagram

Cabinet

Part #441194601
$18.61

In Stock

Light Sheet

#365

Right/lcd assy Diagram

Light sheet

Part #441434201
This item is not returnable
$2.16

In Stock

CUSHION, MICROPHONE

#151

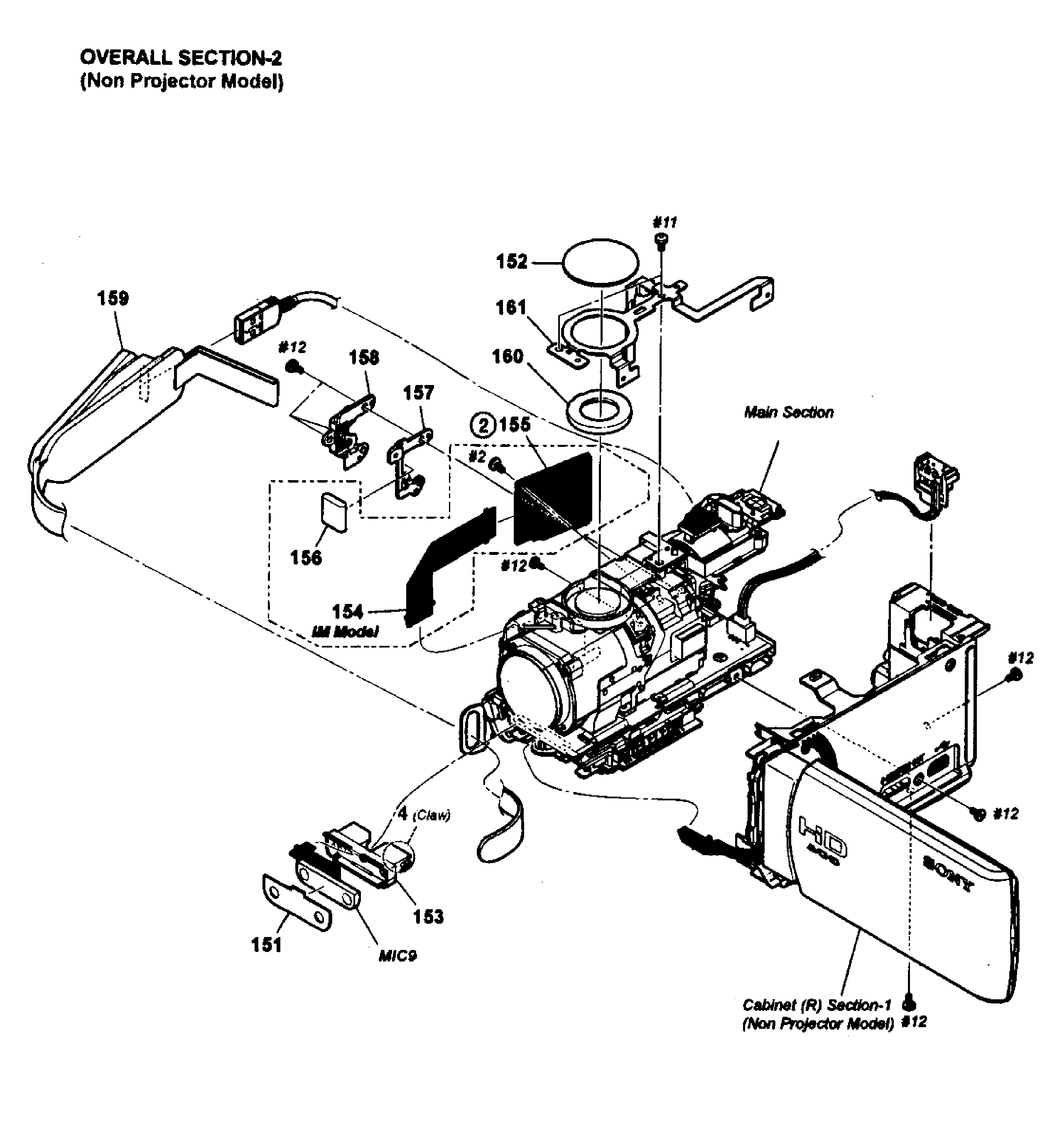

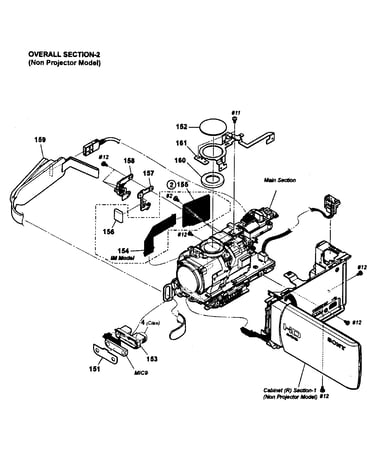

Left assy Diagram

Cushion, microphone

Part #441211601
This item is not returnable
$2.16

In Stock

Sheet, Ms

#209

Main assy Diagram

Sheet, ms

Part #441212501
This item is not returnable
$2.16

In Stock
