Maytag
Countertop Microwave

Model # DM46H-3 Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM46H-3 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

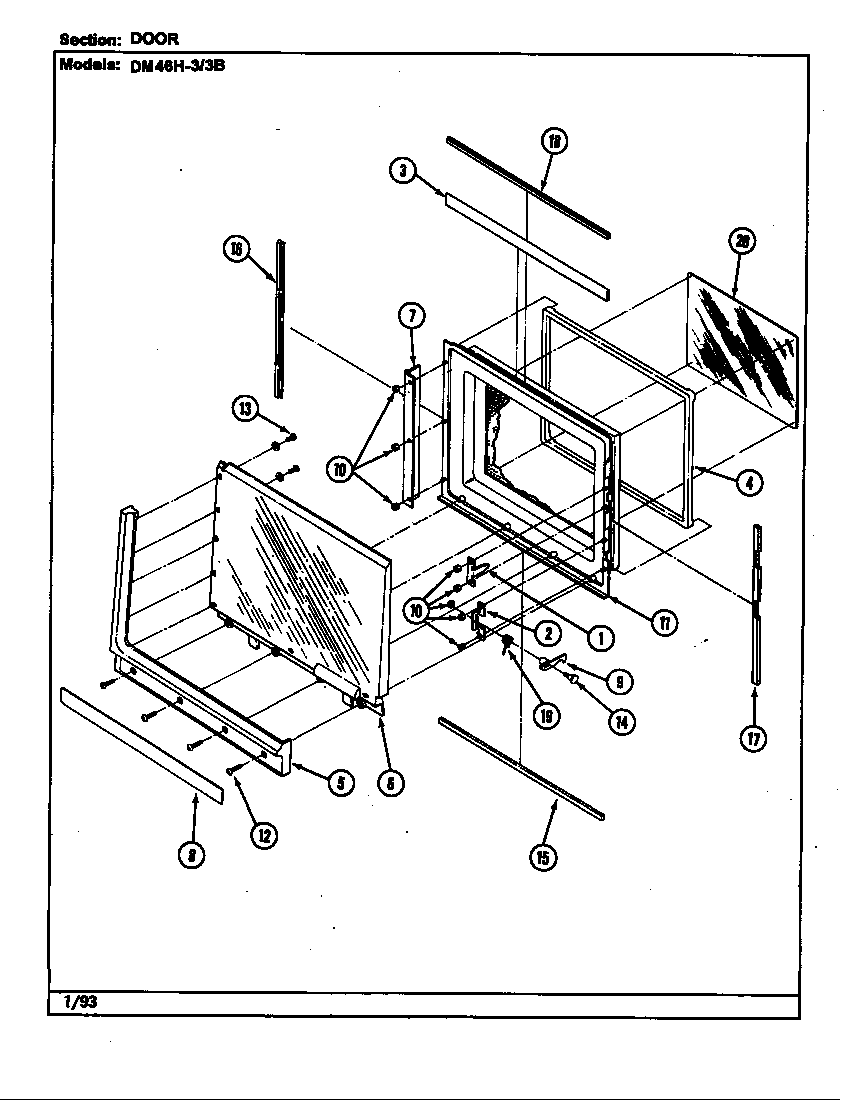

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Screw 03020068
#28

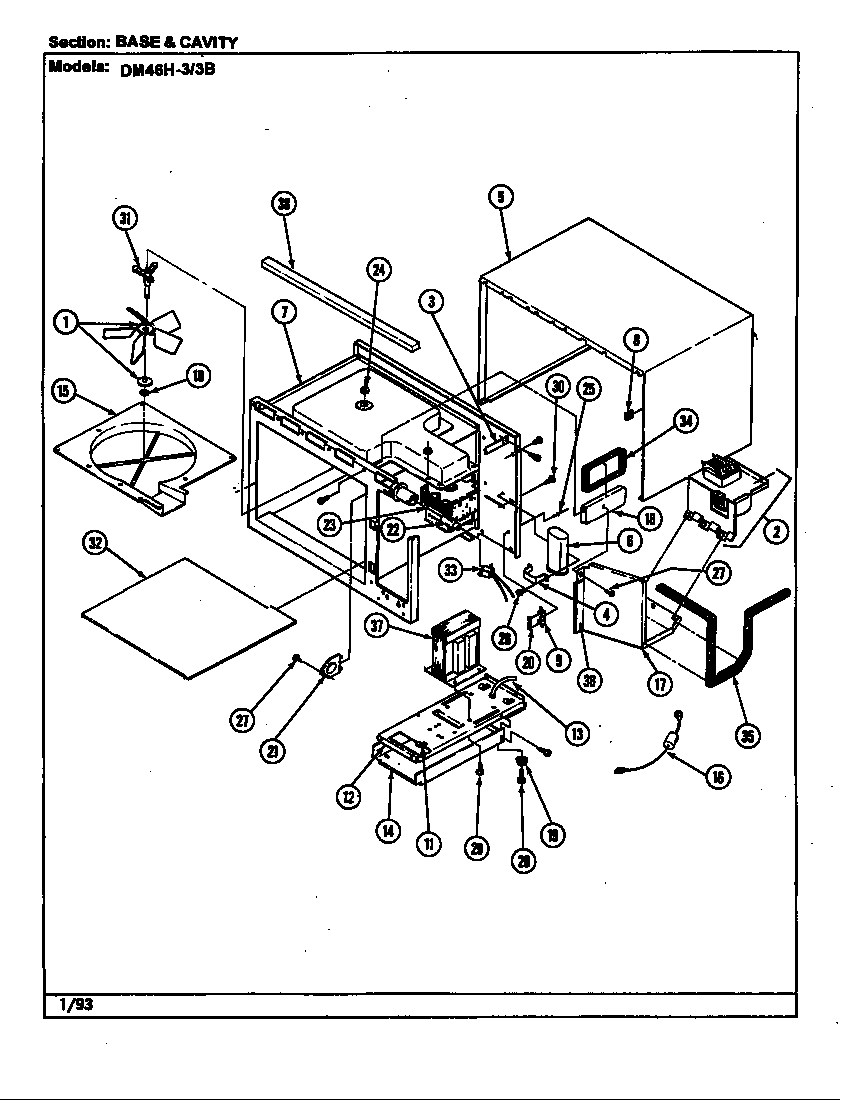

Base & cavity diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
Screw 03020041
#9

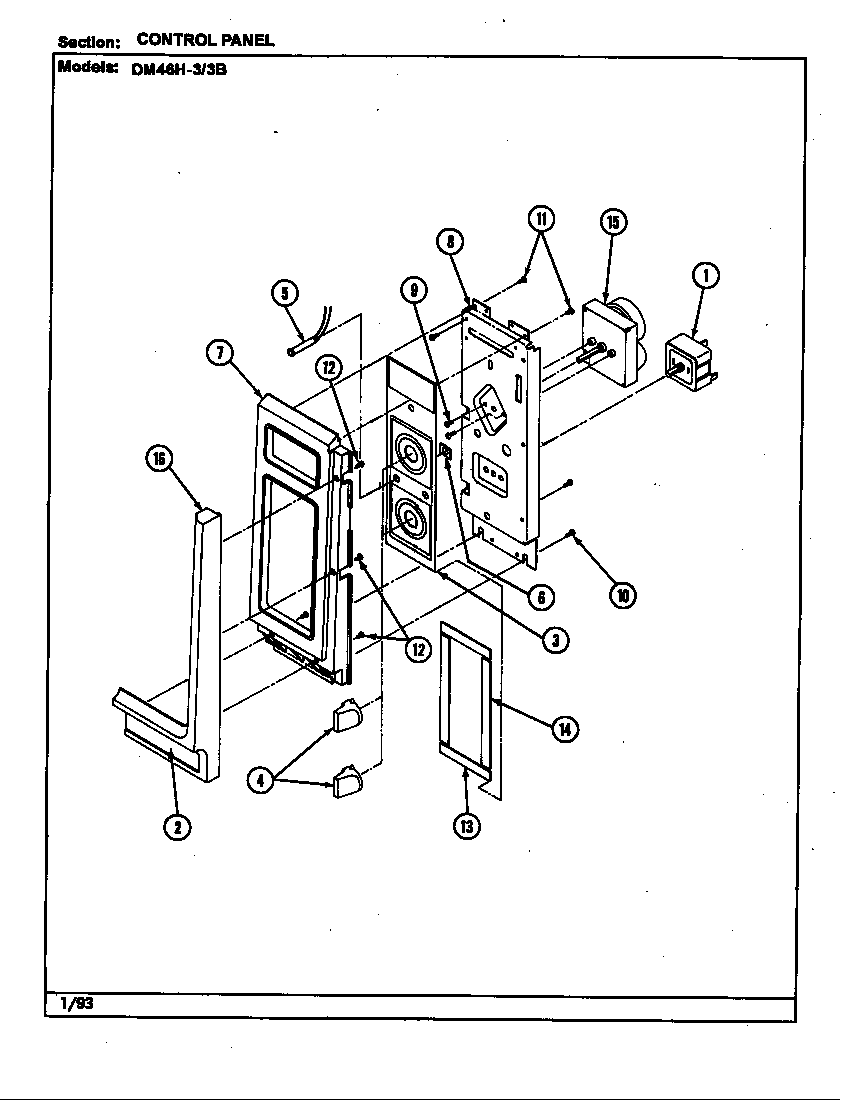

Control panel diagram

Screw

Part #03020041

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 03020041. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw 03010144
#30

Base & cavity diagram

Screw

Part #03010144

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 03010144. Substitute parts can look different from the original.
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock
Foam Tape 02310070
#35

Base & cavity diagram

Foam tape

Part #02310070

The manufacturer no longer makes this part, and there's no substitute part

Foam Tape 02310071
#36

Base & cavity diagram

Foam tape

Part #02310071

The manufacturer no longer makes this part, and there's no substitute part

"t" Fitting (flange) N/P
"t" fitting (flange)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 01060024
#22

Base & cavity diagram

Light bulb

Part #01060024

The manufacturer no longer makes this part, and there's no substitute part

Mag Support 02170112
#18

Base & cavity diagram

Mag support

Part #02170112

The manufacturer no longer makes this part, and there's no substitute part

Blower Housing 02170119
#2D

Base & cavity diagram

Blower housing

Part #02170119

The manufacturer no longer makes this part, and there's no substitute part

Timer Knob 02330048
#4

Control panel diagram

Timer knob

Part #02330048

The manufacturer no longer makes this part, and there's no substitute part
