ICP N4H436AKB100 split-system heat pump Parts
Here are the diagrams and repair parts for ICP N4H436AKB100 split-system heat pump, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for N4H436AKB100 Split-System Heat Pump

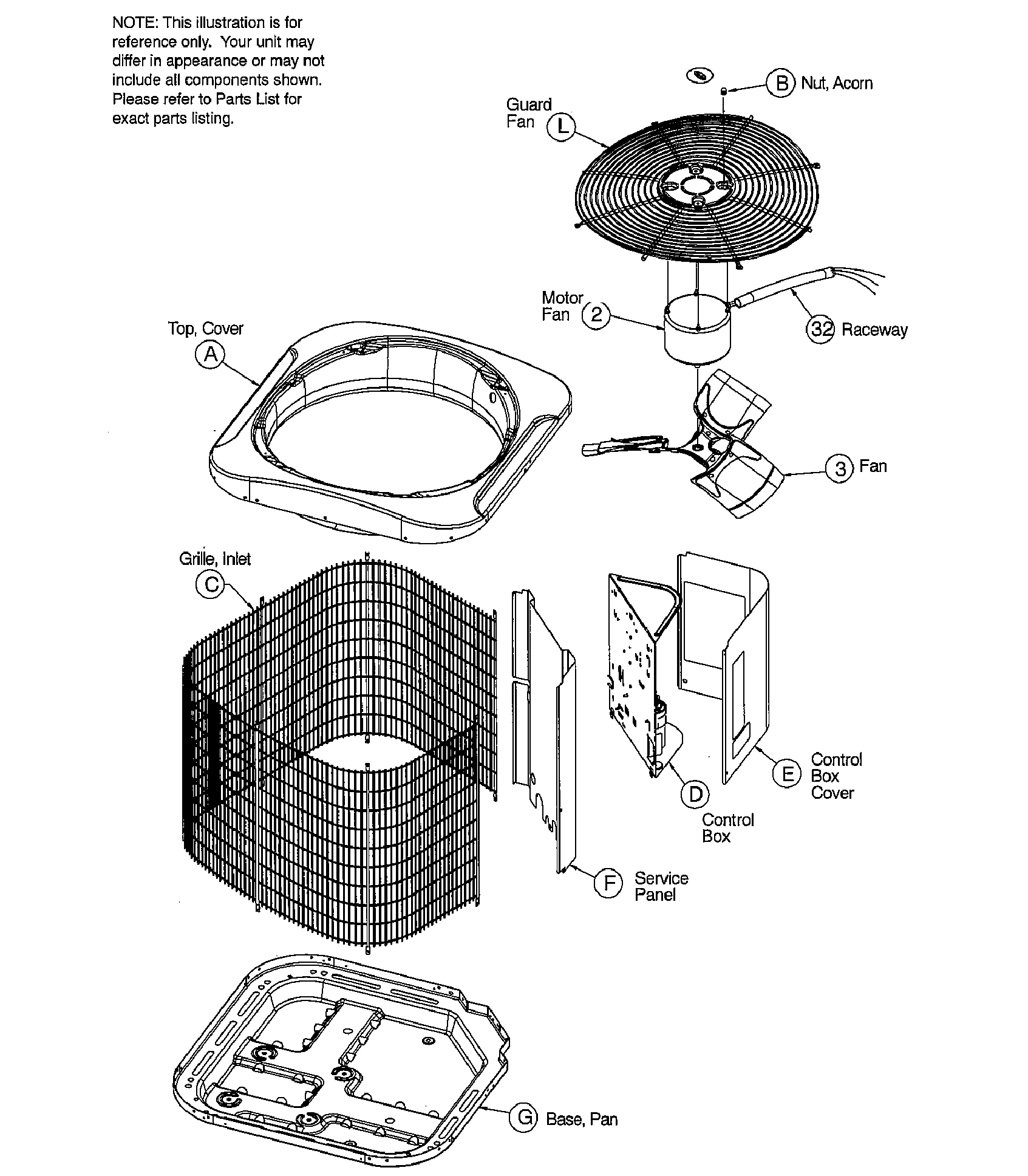

Outer parts diagram
Harnes,ctr
In Stock$46.75
Qty

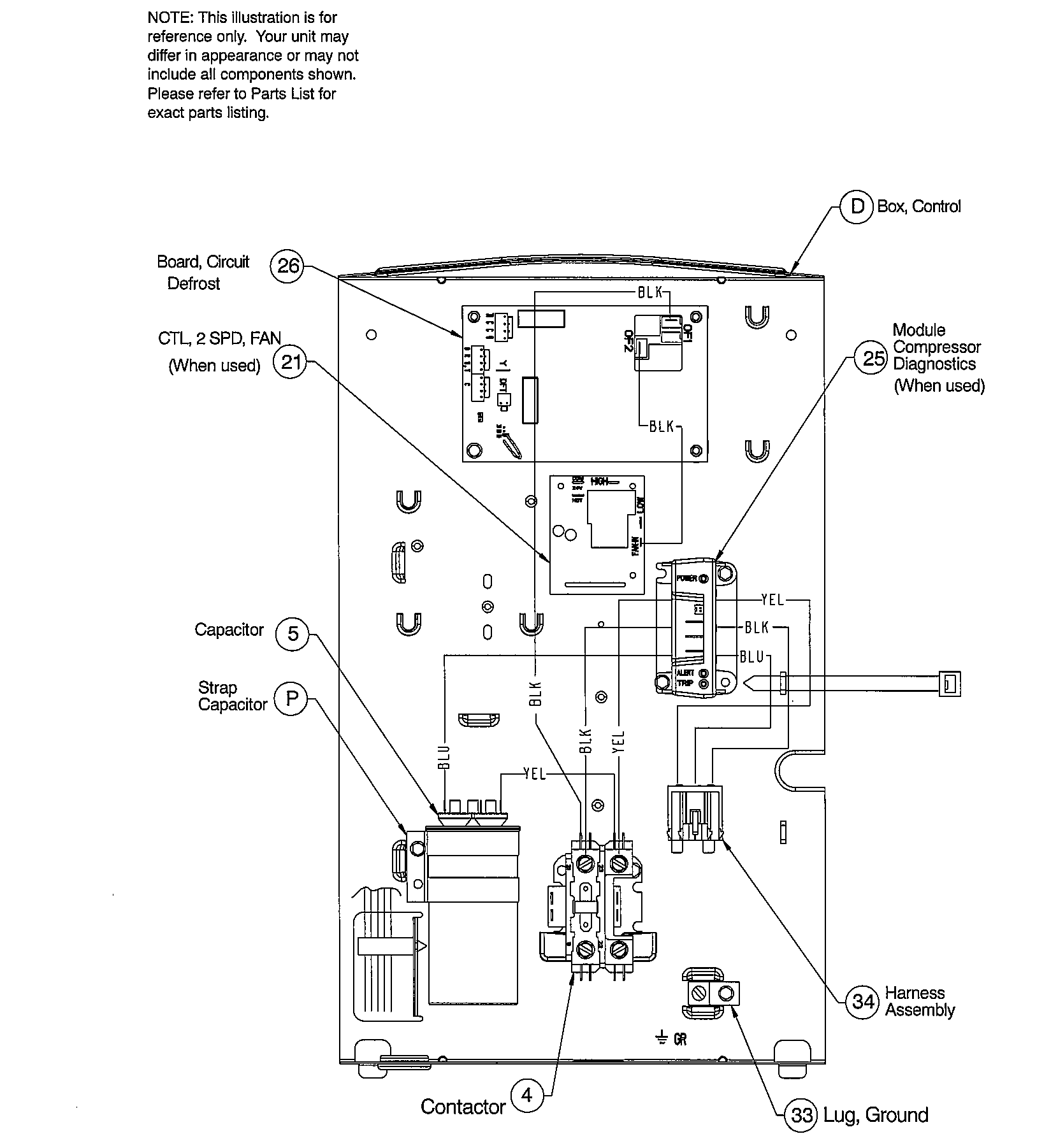

Control panel diagram
Central Air Conditioner Contactor
In Stock$74.067% OFF Phone Price : $80.06
QtyOuter parts diagram
Kit
Part #1174192
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Lug Ground

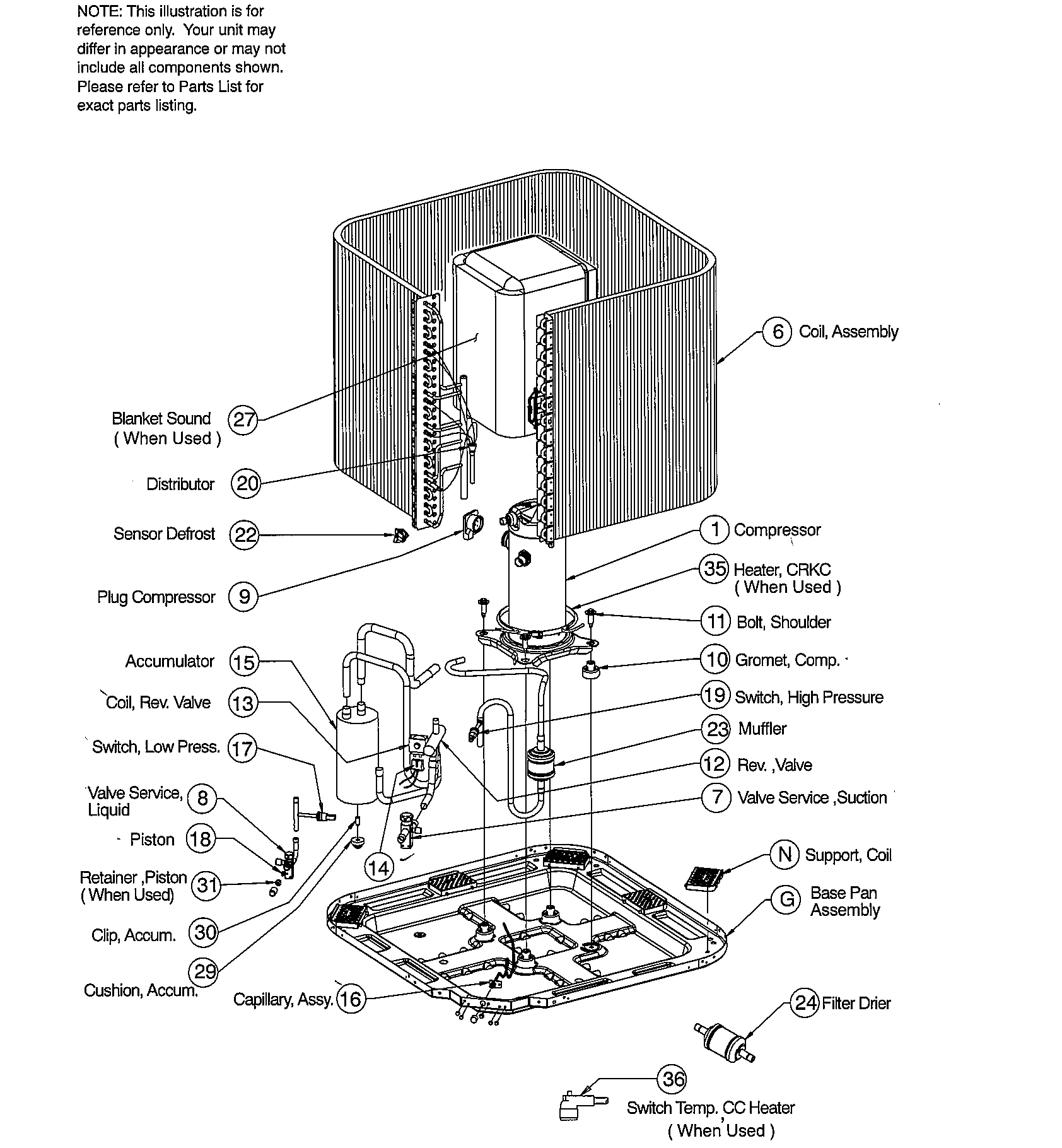

In Stock$24.35QtyInner parts diagram
Valve
Part #1172726Replaced by #1185862
Manufacturer substitutionThis part replaces 1172726. Substitute parts can look different from the original.In Stock$111.96QtyInner parts diagram
Valve
Part #1173629Replaced by #1185865
Manufacturer substitutionThis part replaces 1173629. Substitute parts can look different from the original.In Stock$41.1113% OFF Phone Price : $47.11QtyInner parts diagram
Condenser Coil
Part #1174931
The manufacturer no longer makes this part, and there's no substitute part
Outer parts diagram
Installation Manual
Part #42801510001
The manufacturer no longer makes this part, and there's no substitute part
Outer parts diagram
Warranty
Part #40106401001
The manufacturer no longer makes this part, and there's no substitute part
Outer parts diagram
Screw
Part #1174676
The manufacturer no longer makes this part, and there's no substitute part
