Kenwood
DVD Player

Model # DV-605 Official Kenwood dvd/vcd cd player

Here are the diagrams and repair parts for Official Kenwood DV-605 dvd/vcd cd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Integrated Circuit LB1641
#NI

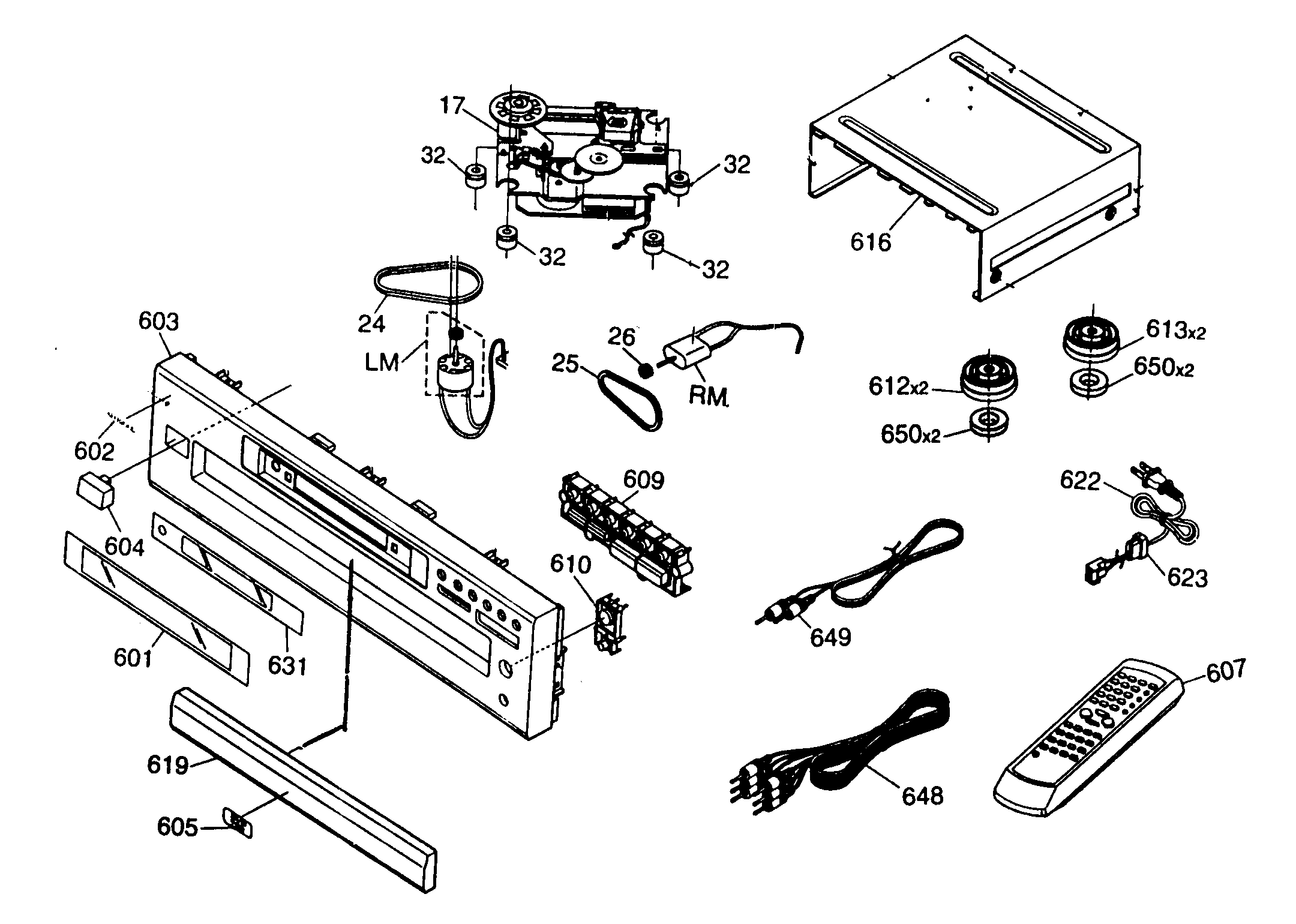

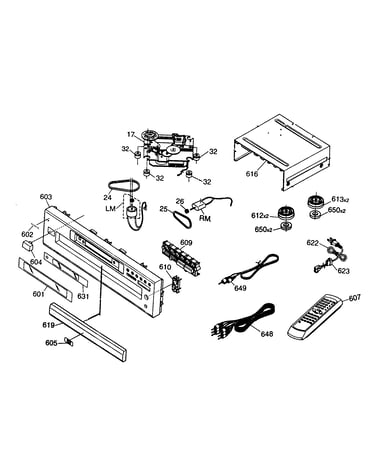

Cabinet parts diagram

Integrated circuit

Part #LB1641

The manufacturer no longer makes this part, and there's no substitute part

Badge B43-0302-04
#602

Cabinet parts diagram

Badge

Part #B43-0302-04

The manufacturer no longer makes this part, and there's no substitute part

Gear D13-2588-08
#NI

Cabinet parts diagram

Gear

Part #D13-2588-08

The manufacturer no longer makes this part, and there's no substitute part

Window B10-3892-08
#601

Cabinet parts diagram

Window

Part #B10-3892-08

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual B60-5265-08
#NI

Cabinet parts diagram

Owner's manual

Part #B60-5265-08

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord E30-7250-08
Ac cord

Part #E30-7250-08

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate B43-0333-08
#605

Cabinet parts diagram

Logo plate

Part #B43-0333-08

The manufacturer no longer makes this part, and there's no substitute part

Belt D16-0784-08
#25

Cabinet parts diagram

Belt

Part #D16-0784-08

The manufacturer no longer makes this part, and there's no substitute part

Motor T42-1121-08
#RM

Cabinet parts diagram

Motor

Part #T42-1121-08

The manufacturer no longer makes this part, and there's no substitute part

Cover A01-3854-08
#616

Cabinet parts diagram

Cover

Part #A01-3854-08

The manufacturer no longer makes this part, and there's no substitute part
