Kenmore
Countertop Microwave

Model #4018923590 Kenmore microwave

Here are the diagrams and repair parts for Kenmore 4018923590 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 62 parts

    Wire Harness

    #34

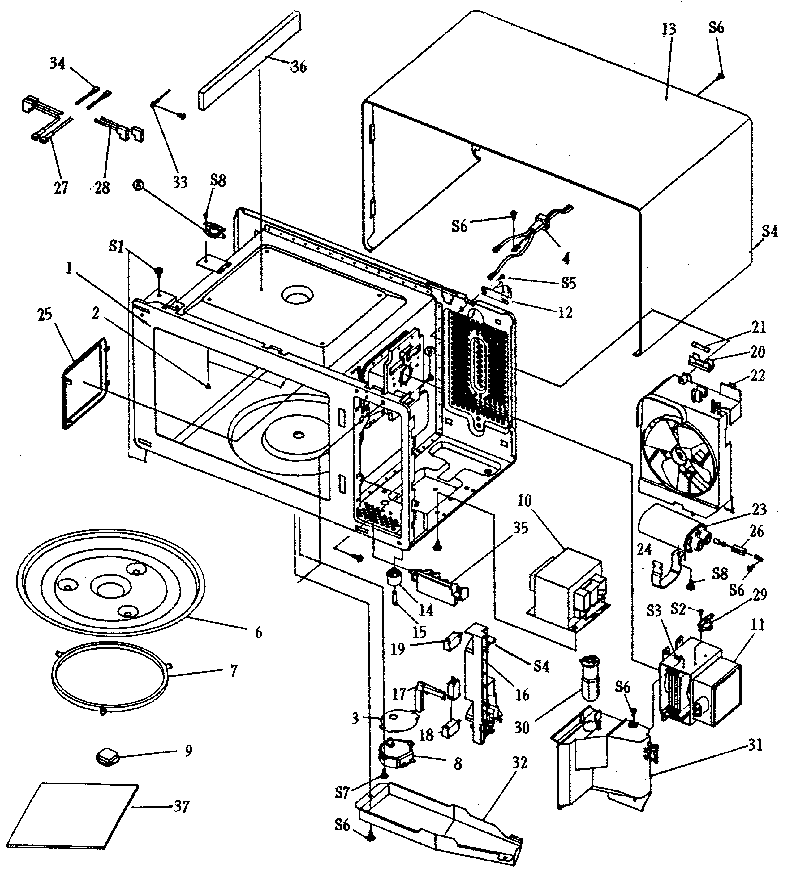

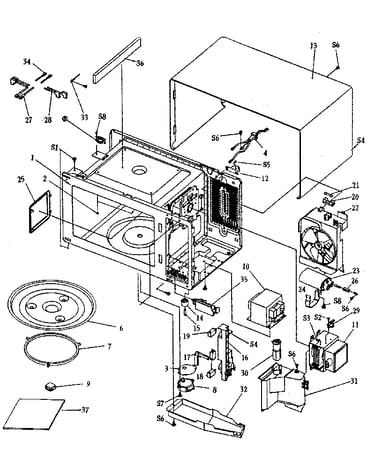

    Cavity Diagram

    Wire harness

    Part #503285
    This item is not returnable
    $2.29

    In Stock

    Hinge

    #8

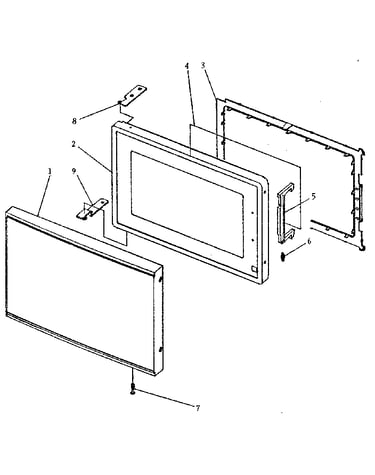

    Door Diagram

    Hinge

    Part #503263
    $10.99

    In Stock

    Cushion

    #36

    Cavity Diagram

    Cushion

    Part #503267
    This item is not returnable
    $2.29

    In Stock

    Screw 3x6

    #39

    Cavity Diagram

    Screw 3x6

    Part #502547
    $8.49

    In Stock

    Outer Panel

    #13

    Cavity Diagram

    Outer panel

    Part #503254
    $64.99

    In Stock

    Screw A

    #41

    Cavity Diagram

    Screw a

    Part #503272
    This item is not returnable
    $2.49

    In Stock

    Film Window

    #4

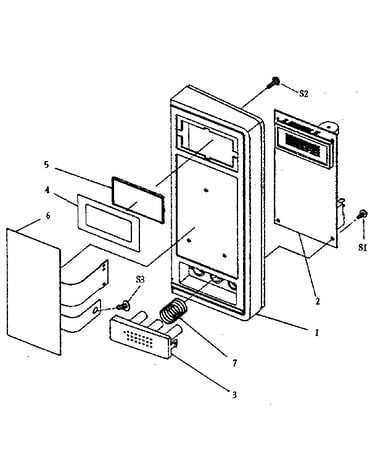

    Control Diagram

    Film window

    Part #503253
    This item is not returnable
    $2.29

    In Stock

    Clamp Lockng

    #12

    Cavity Diagram

    Clamp lockng

    Part #503258
    $9.49

    In Stock

    Lower Hinge

    #9

    Door Diagram

    Lower hinge

    Part #503264
    $19.99

    In Stock

    Wire Lead B

    #28

    Cavity Diagram

    Wire lead b

    Part #503287
    $8.99

    In Stock
