Model # 113197732 Official Craftsman radial saw

Here are the diagrams and repair parts for Official Craftsman 113197732 radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

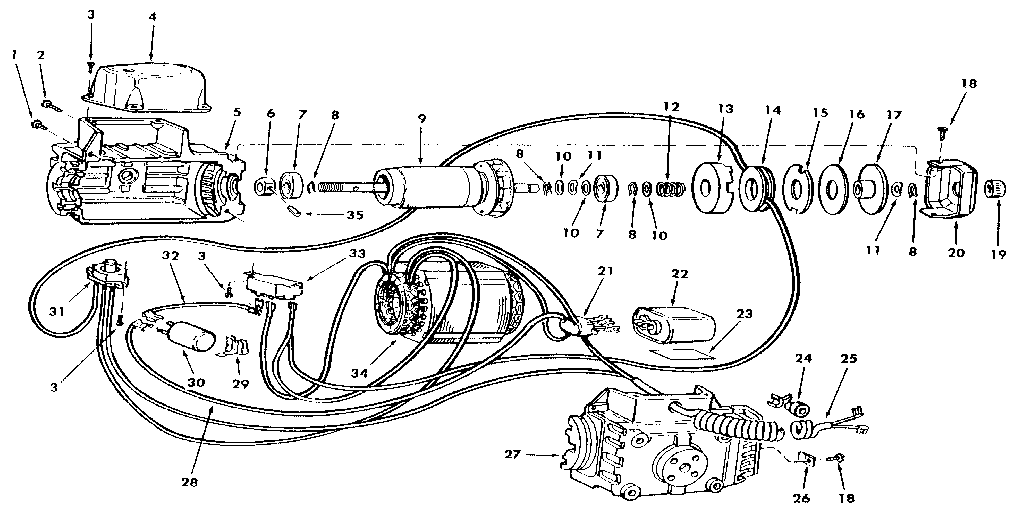

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 268 parts  |
Lock Nut STD541431
Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Bolt 109163
#49

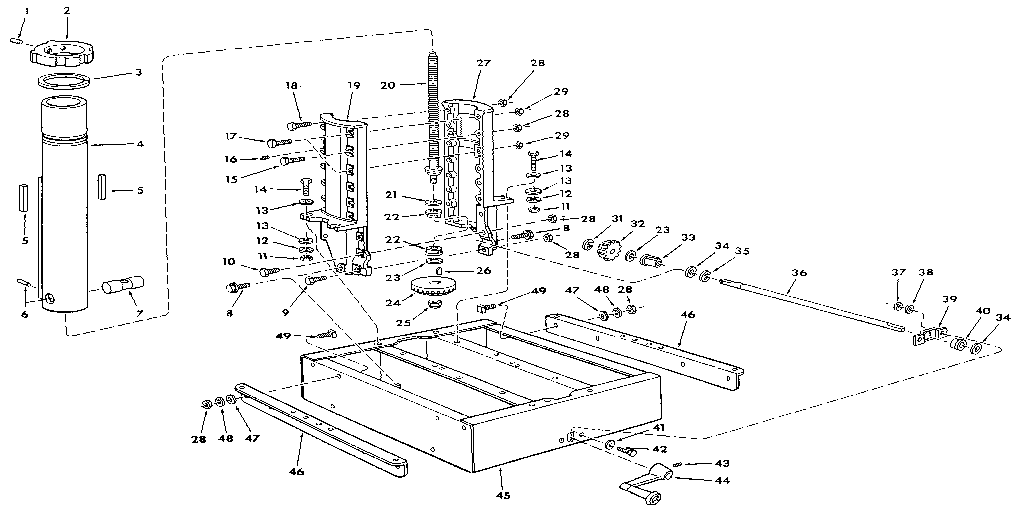

Figure 3 - base assembly diagram

Bolt

Part #109163

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Screw 9416187
#8

Figure 3 - base assembly diagram

Screw

Part #9416187

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#12

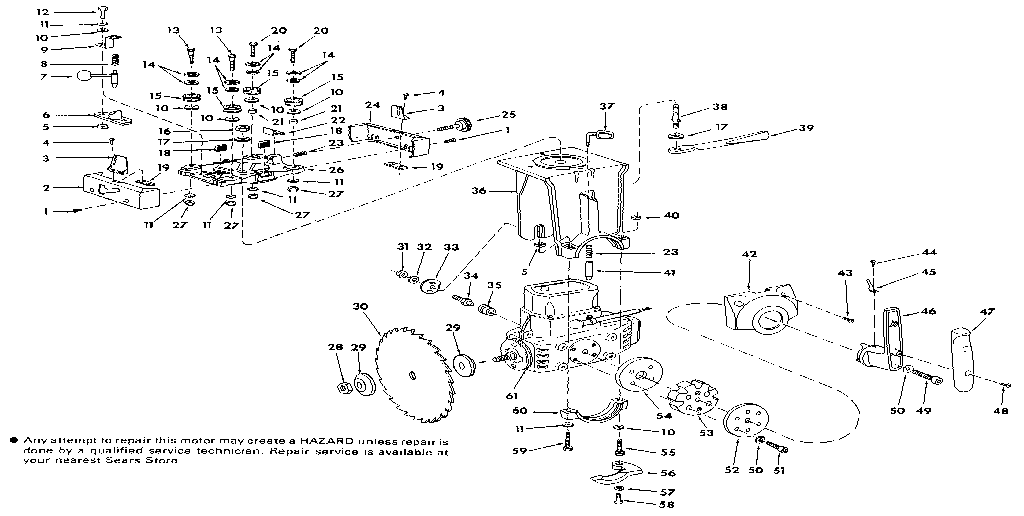

Figure 2 - yoke assembly diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Wrench 63682
#53

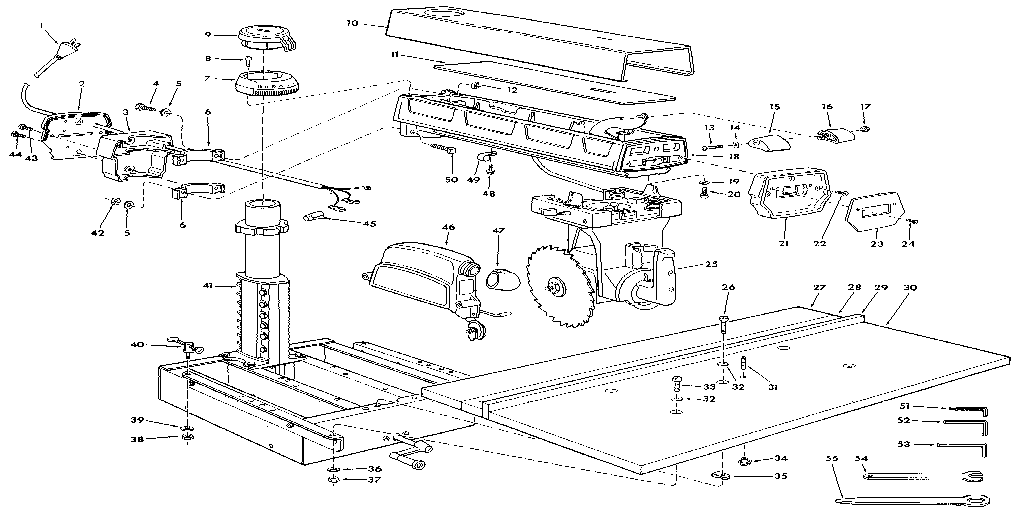

Figure 1 diagram

Radial arm saw hex wrench

Part #63682

The manufacturer no longer makes this part, and there's no substitute part

Screw 9421628
#49

Figure 2 - yoke assembly diagram

Screw

Part #9421628

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#28

Figure 2 - yoke assembly diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing (replaces 819039) 63777
#15

Figure 2 - yoke assembly diagram

Radial arm saw carriage bearing (replaces 819039)

Part #63777

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Handle Screw 60338
#48

Figure 2 - yoke assembly diagram

Radial arm saw handle screw

Part #60338

The manufacturer no longer makes this part, and there's no substitute part
