Model #2582373680 Kenmore gas outdoor grill

Here are the diagrams and repair parts for Kenmore 2582373680 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 120 parts

    Sholdr Bolt

    #30

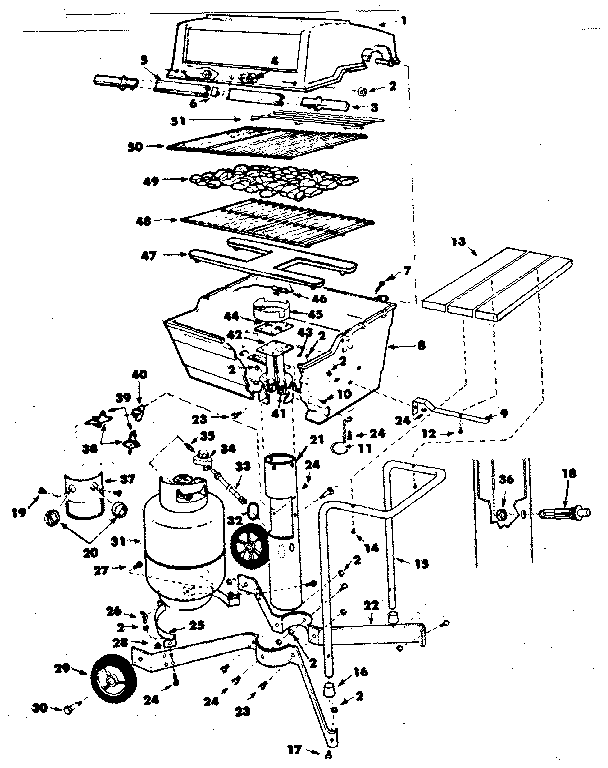

    Grill, burner section and cart Diagram

    Sholdr bolt

    Part #10240-6

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut

    #NI

    All parts Diagram

    Hex nut

    Part #7718

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Bolt, 5-pack

    #24

    Grill, burner section and cart Diagram

    Hex bolt, 5-pack

    Part #STD522506
    ?
    Manufacturer substitution
    This part replaces STD522506. Substitute parts can look different from the original.
    This part replaces STD522506
    This item is not returnable
    $2.43

    In Stock

    Cotter Pin

    #7

    Grill, burner section and cart Diagram

    Cotter pin

    Part #STD560907

    The manufacturer no longer makes this part, and there's no substitute part

    Bolt

    #27

    Grill, burner section and cart Diagram

    Bolt

    Part #Y-12540

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut

    #105

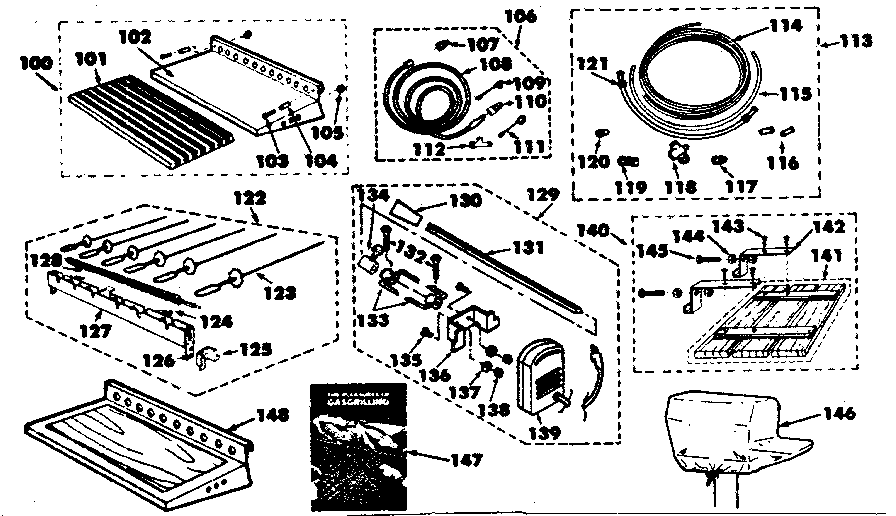

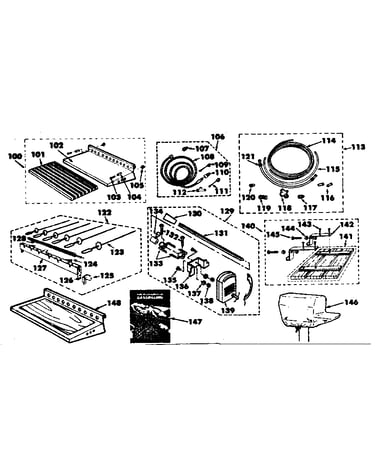

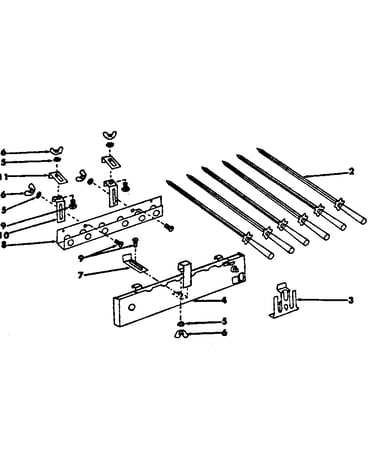

    Optional accessories Diagram

    Hex nut

    Part #STD541110

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer

    #137

    Optional accessories Diagram

    Lock washer

    Part #STD551108

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #43

    Grill, burner section and cart Diagram

    Screw

    Part #Y-12648

    The manufacturer no longer makes this part, and there's no substitute part

    Gas Grill H-Burner

    #47

    Grill, burner section and cart Diagram

    Gas grill h-burner

    Part #10390312
    ?
    Manufacturer substitution
    This part replaces 10390-31. Substitute parts can look different from the original.
    This part replaces 10390-31
    $60.99

    In Stock

    Board

    #101

    Optional accessories Diagram

    Board

    Part #10711-49

    The manufacturer no longer makes this part, and there's no substitute part
