Model # RR54D/P7149004M Official Amana microwave

Here are the diagrams and repair parts for Official Amana RR54D-P7149004M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 183 parts  |
Screw M0216515
#105

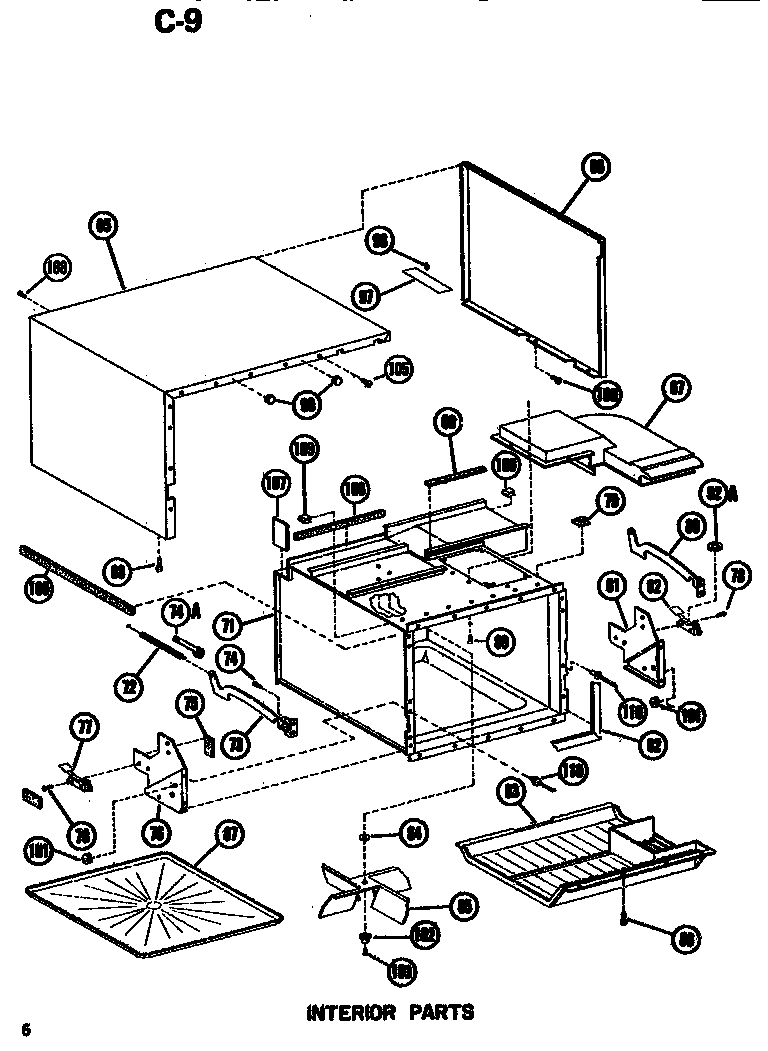

Interior diagram

Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Torx Screw M0216616
#100

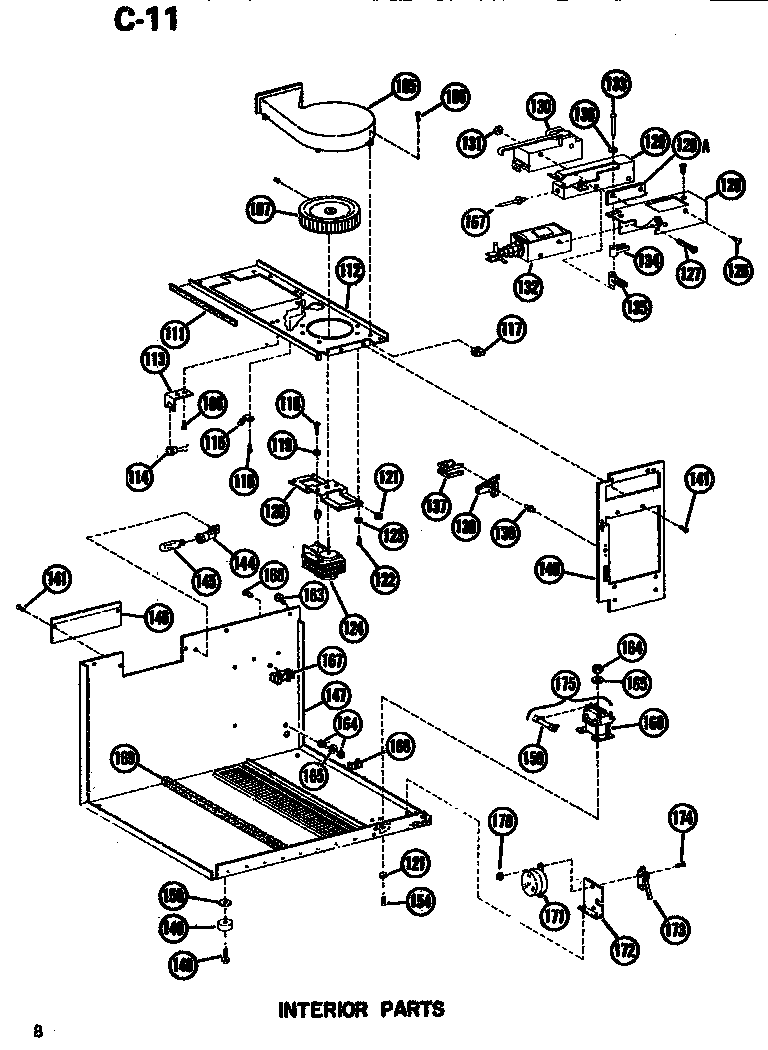

Interior diagram

Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut M0282005
Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw M0229916
#32

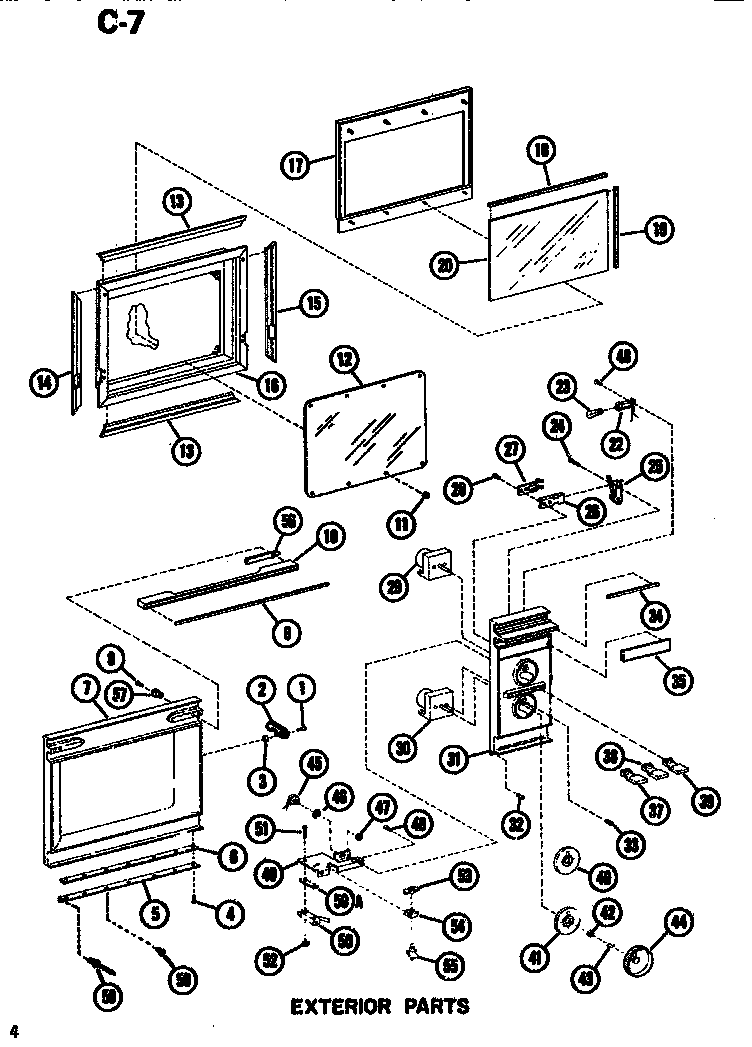

Exterior diagram

Screw

Part #M0229916

Replaced by #M0229916

?
Manufacturer substitution
This part replaces M0229916. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Door Bushing B5745801
#57

Exterior diagram

Door bushing

Part #B5745801

The manufacturer no longer makes this part, and there's no substitute part

Shim A3127101
#6A

Exterior diagram

Shim

Part #A3127101

The manufacturer no longer makes this part, and there's no substitute part

Bulb A3167503
#145

Interior diagram

Bulb

Part #A3167503

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Switch Mounting C3667603
#49

Exterior diagram

Bracket, switch mounting

Part #C3667603

The manufacturer no longer makes this part, and there's no substitute part

Line Filter B5707601
#216

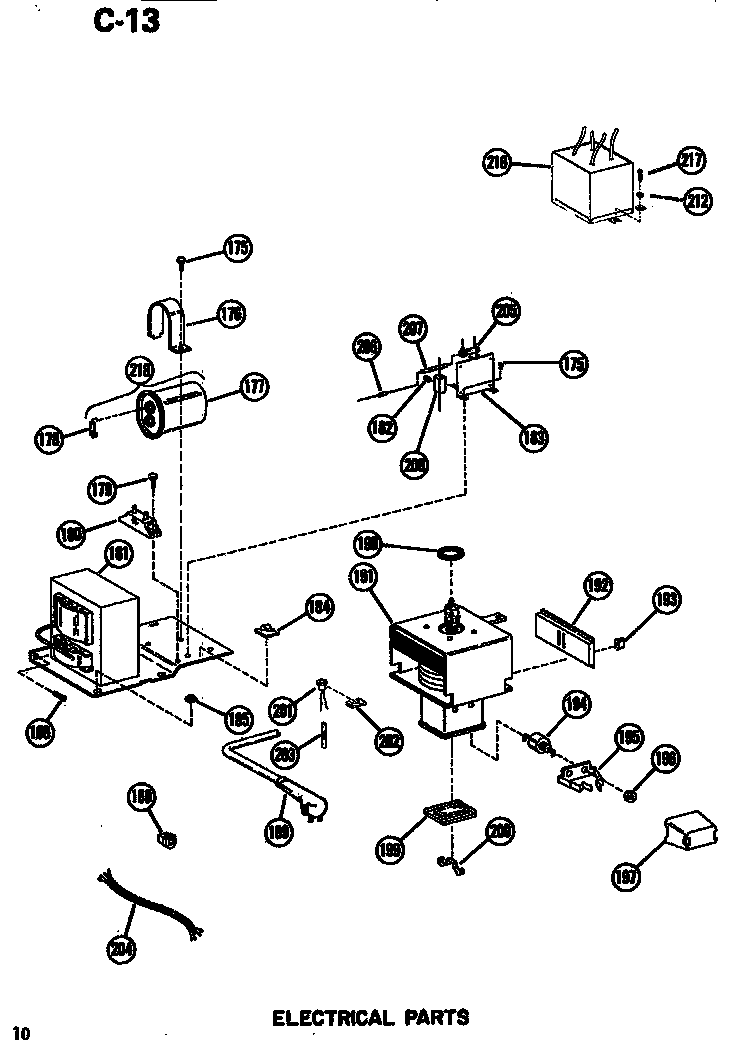

Electrical diagram

Line filter

Part #B5707601

The manufacturer no longer makes this part, and there's no substitute part

Clip M0270530
#136

Interior diagram

Clip

Part #M0270530

The manufacturer no longer makes this part, and there's no substitute part
