Kenmore
Countertop Microwave

Model #5668824680 Kenmore microwave

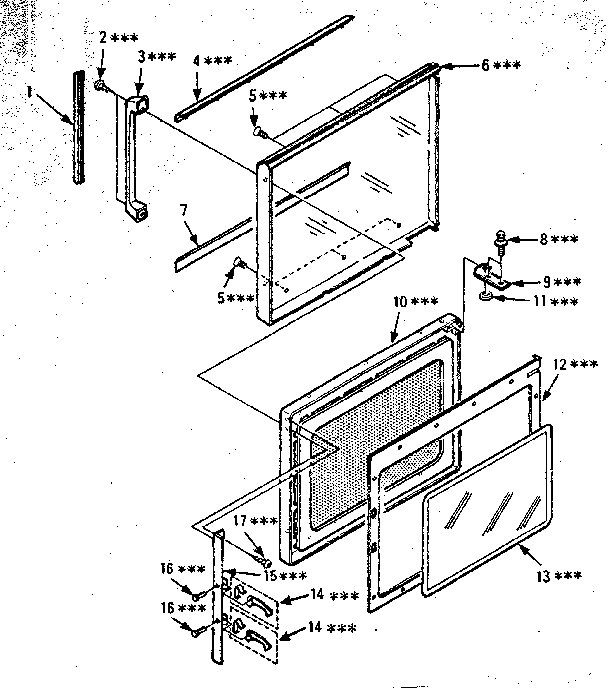

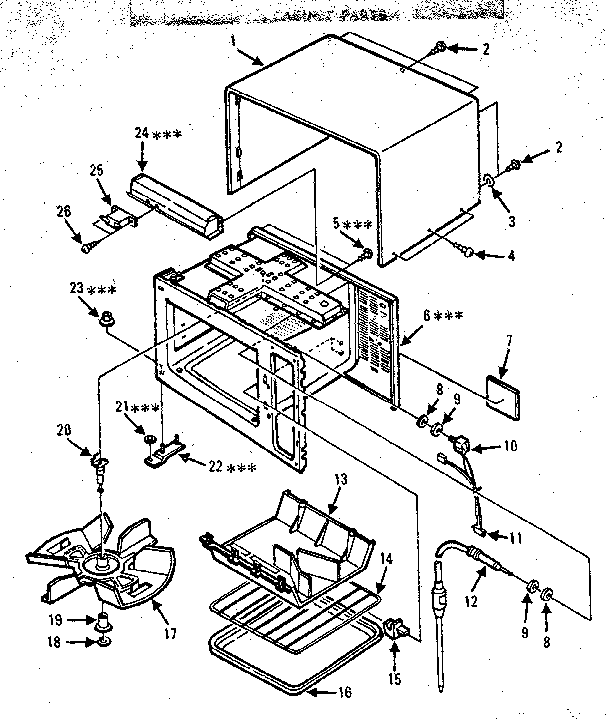

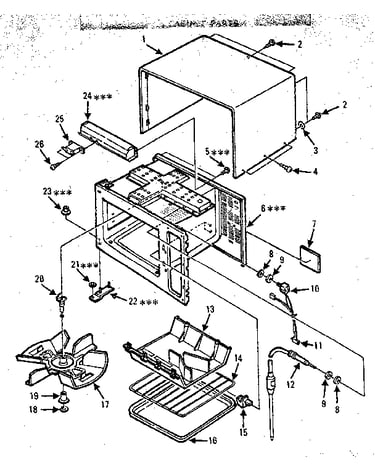

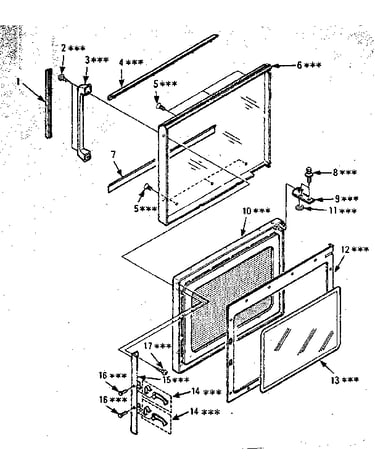

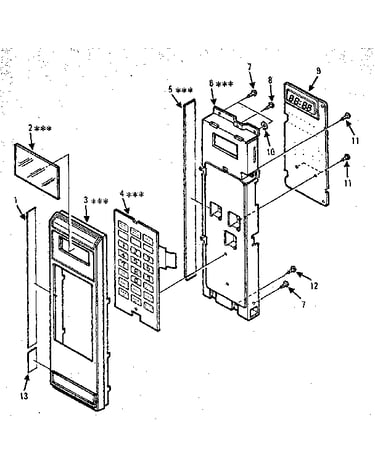

Here are the diagrams and repair parts for Kenmore 5668824680 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 165 parts

    Microwave Fuse, 15-amp#11

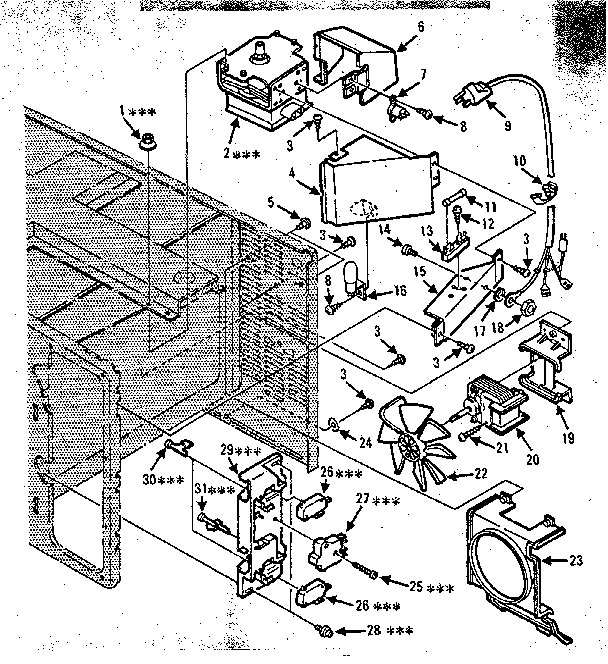

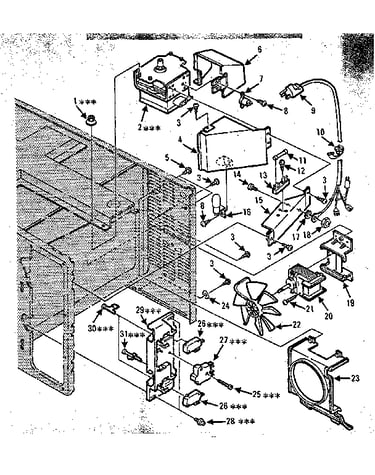

    Switches and microwave parts Diagram

    Microwave fuse, 15-amp

    Part #11255

    The manufacturer no longer makes this part, and there's no substitute part

    Microwave Magnetron Thermostat#7

    Switches and microwave parts Diagram

    Microwave magnetron thermostat

    Part #14531

    The manufacturer no longer makes this part, and there's no substitute part

    Microwave Fuse Holder#13

    Switches and microwave parts Diagram

    Microwave fuse holder

    Part #13553

    The manufacturer no longer makes this part, and there's no substitute part

    Diode#5I

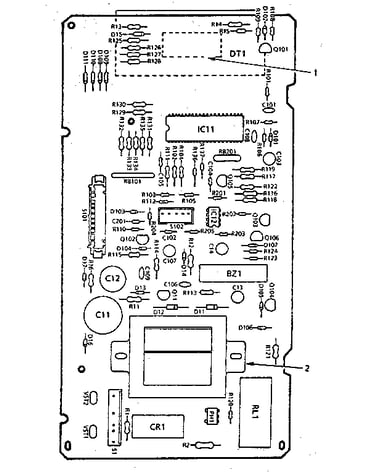

    Power and control circuit board Diagram

    Diode

    Part #13512

    The manufacturer no longer makes this part, and there's no substitute part

    Capacitor#6K

    Power and control circuit board Diagram

    Capacitor

    Part #12544

    The manufacturer no longer makes this part, and there's no substitute part

    Capacitor#4

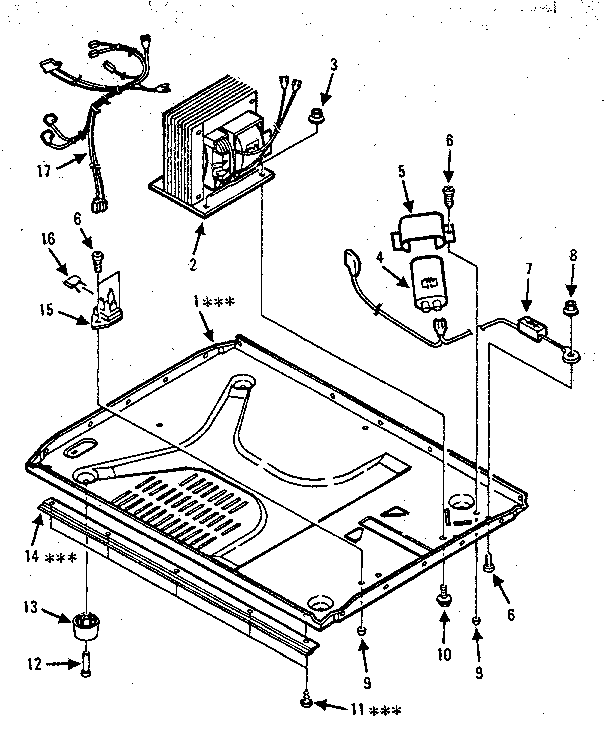

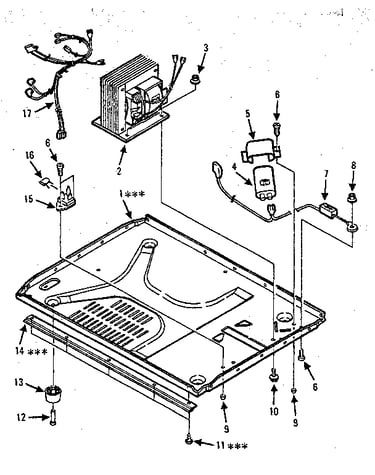

    Microwave parts Diagram

    Capacitor

    Part #400238

    The manufacturer no longer makes this part, and there's no substitute part

    Intg Circuit#3C

    Power and control circuit board Diagram

    Intg circuit

    Part #11557

    The manufacturer no longer makes this part, and there's no substitute part

    Intg Circuit#3A

    Power and control circuit board Diagram

    Intg circuit

    Part #13041

    The manufacturer no longer makes this part, and there's no substitute part

    Resistor

    See All Related Diagrams

    Resistor

    Part #12135

    The manufacturer no longer makes this part, and there's no substitute part

    Capacitor

    See All Related Diagrams

    Capacitor

    Part #11564

    The manufacturer no longer makes this part, and there's no substitute part
