Model # AX-625 Official Brother electric typewriter

Here are the diagrams and repair parts for Official Brother AX-625 electric typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

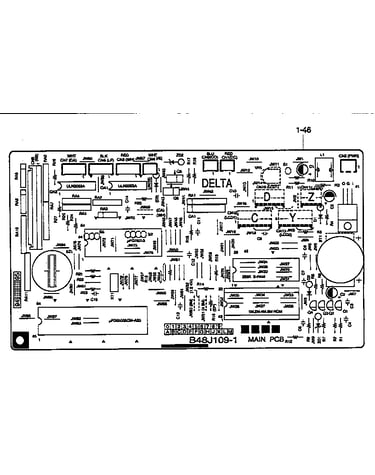

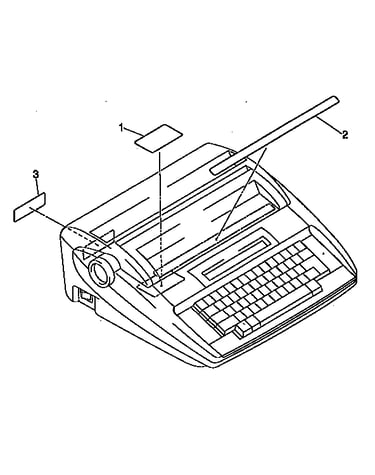

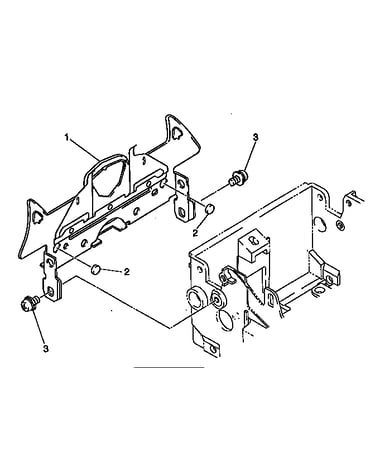

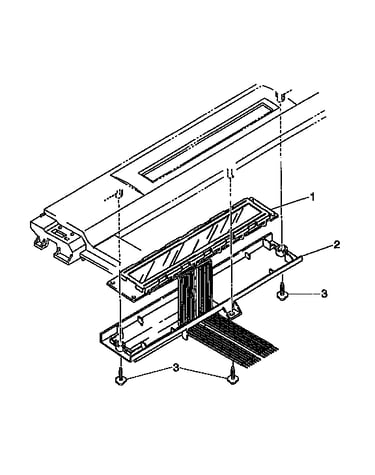

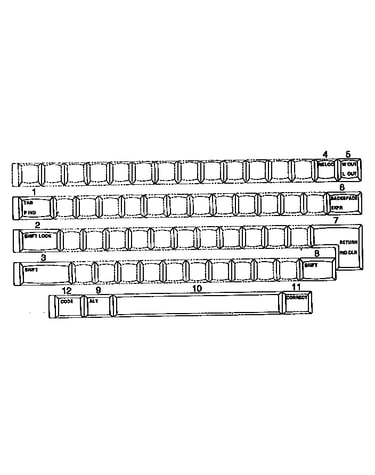

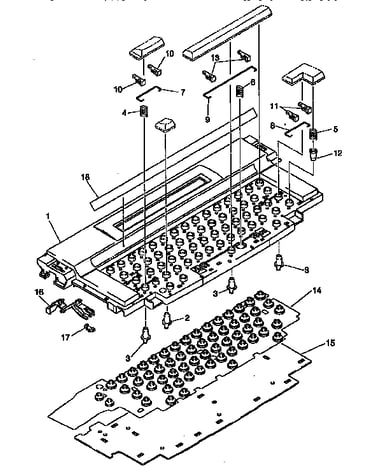

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Screw 085411615
#4

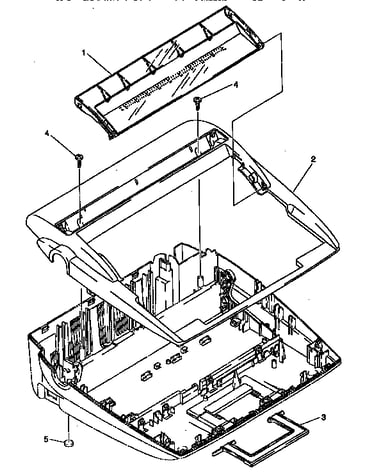

Covers diagram

Screw

Part #085411615

The manufacturer no longer makes this part, and there's no substitute part

Paper Pan Hold Plate UC4828000
#7

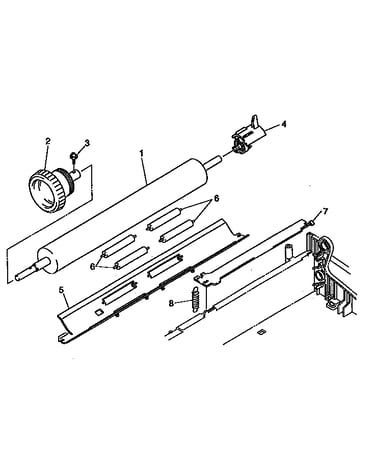

Platen mechanism diagram

Paper pan hold plate

Part #UC4828000

The manufacturer no longer makes this part, and there's no substitute part

Key UC3063078
#34

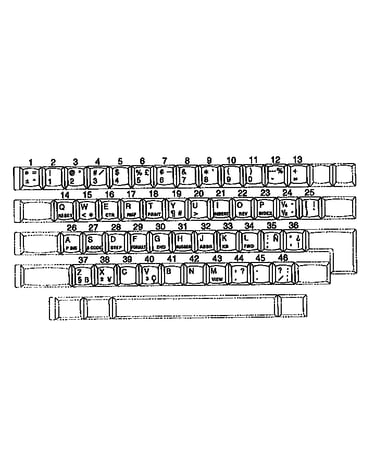

Character keys - usa eng diagram

Key

Part #UC3063078

The manufacturer no longer makes this part, and there's no substitute part

Rack UC4830000
#4

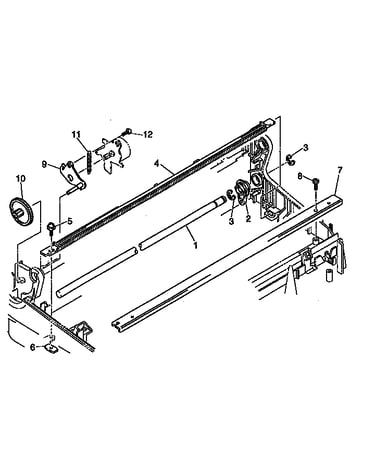

Chassis attachments diagram

Rack

Part #UC4830000

The manufacturer no longer makes this part, and there's no substitute part

Transformer UC2854000
#1A

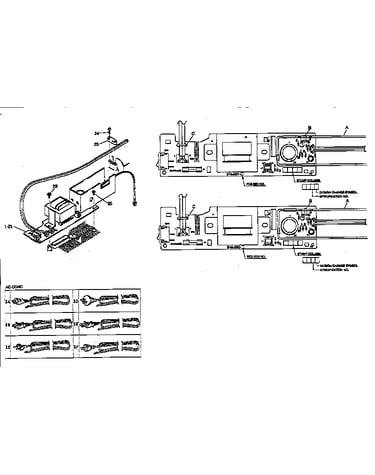

Pcb assembly diagram

Transformer

Part #UC2854000

The manufacturer no longer makes this part, and there's no substitute part

Adapter ZX-104
#104

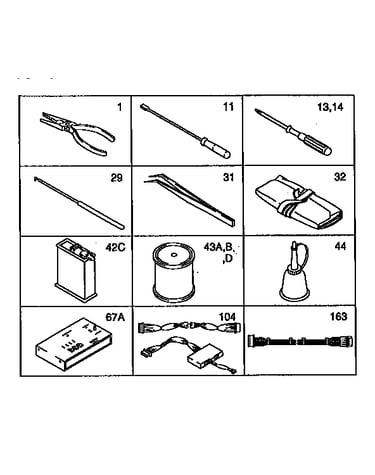

Adjusting tool kit diagram

Adapter

Part #ZX-104

The manufacturer no longer makes this part, and there's no substitute part

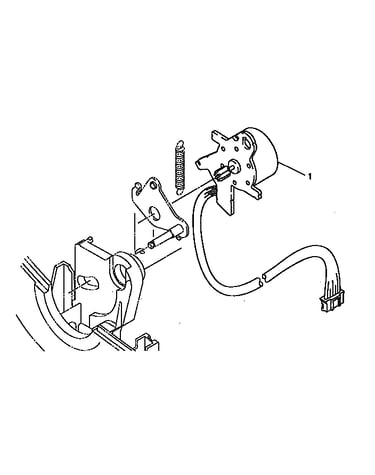

Motor UC5348001
#9

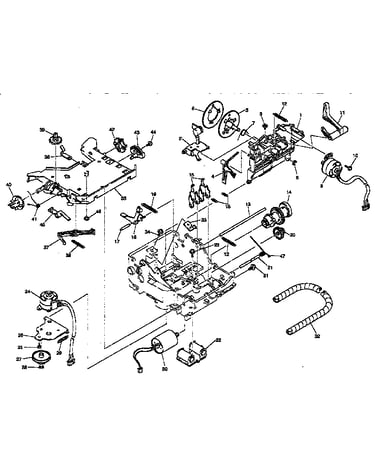

Daisy wheel assembly diagram

Motor

Part #UC5348001

The manufacturer no longer makes this part, and there's no substitute part

Key 583332077
#45

Character keys - usa eng diagram

Key

Part #583332077

The manufacturer no longer makes this part, and there's no substitute part

Holder Assembly UC5327001
#1-34

Daisy wheel assembly diagram

Holder assembly

Part #UC5327001

The manufacturer no longer makes this part, and there's no substitute part

Hook ZX-29
#29

Adjusting tool kit diagram

Hook

Part #ZX-29

The manufacturer no longer makes this part, and there's no substitute part
