Model # 5316 Official Milwaukee 1-1/2" thunderbolt rotary hammer

Here are the diagrams and repair parts for Official Milwaukee 5316 1-1/2" thunderbolt rotary hammer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

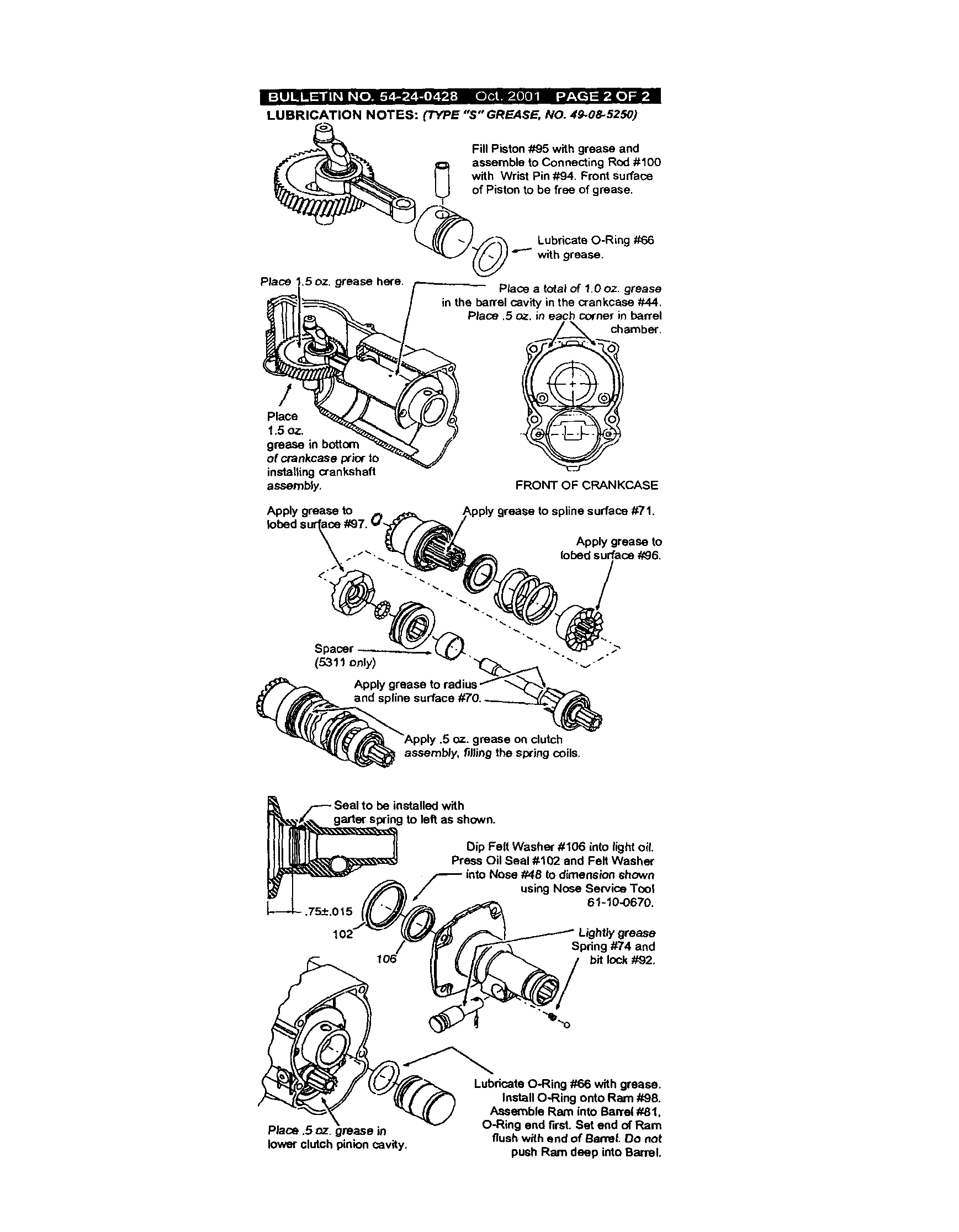

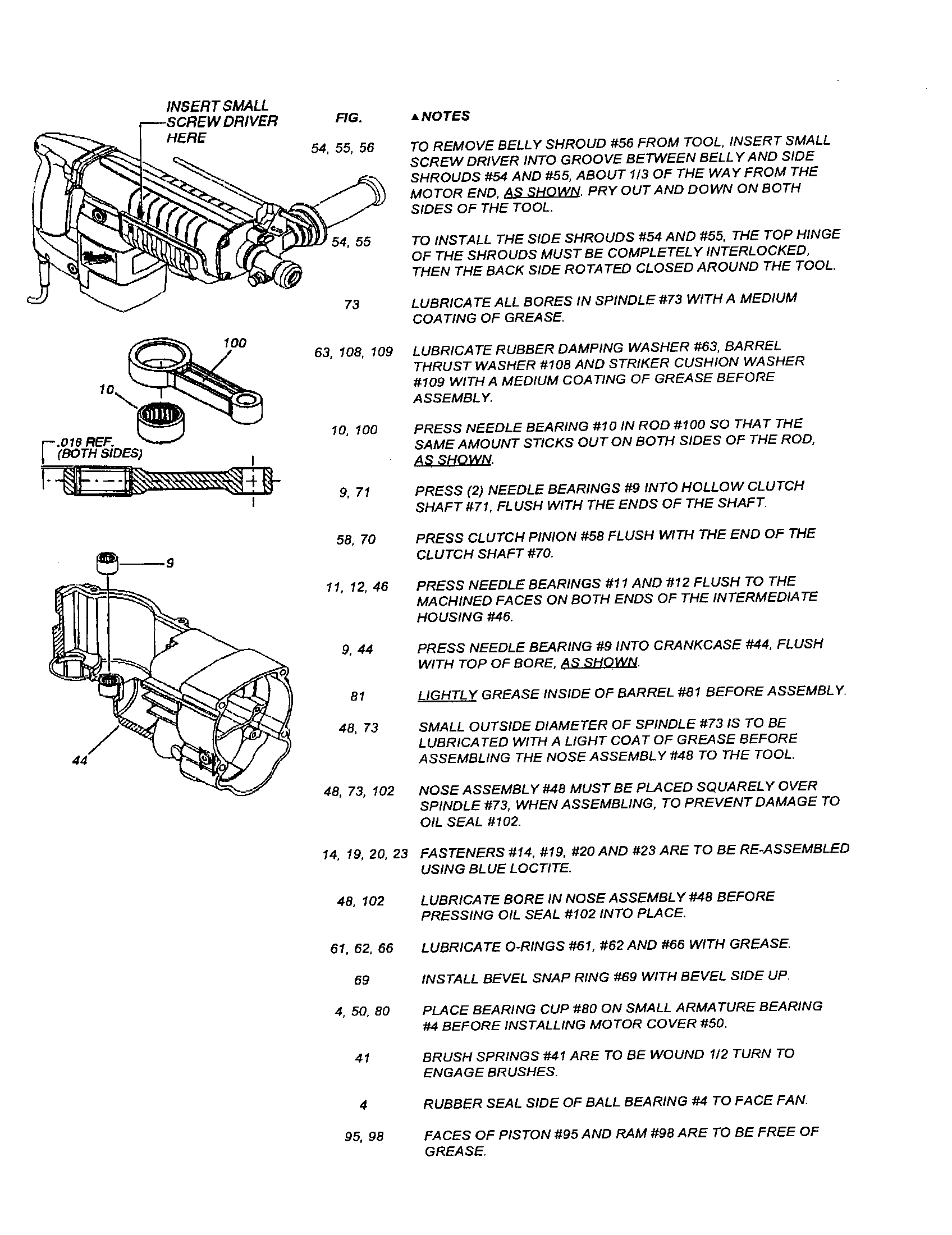

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
O-ring (included In 1-1/2" Hammer Service Kit) 34-40-7330
#65

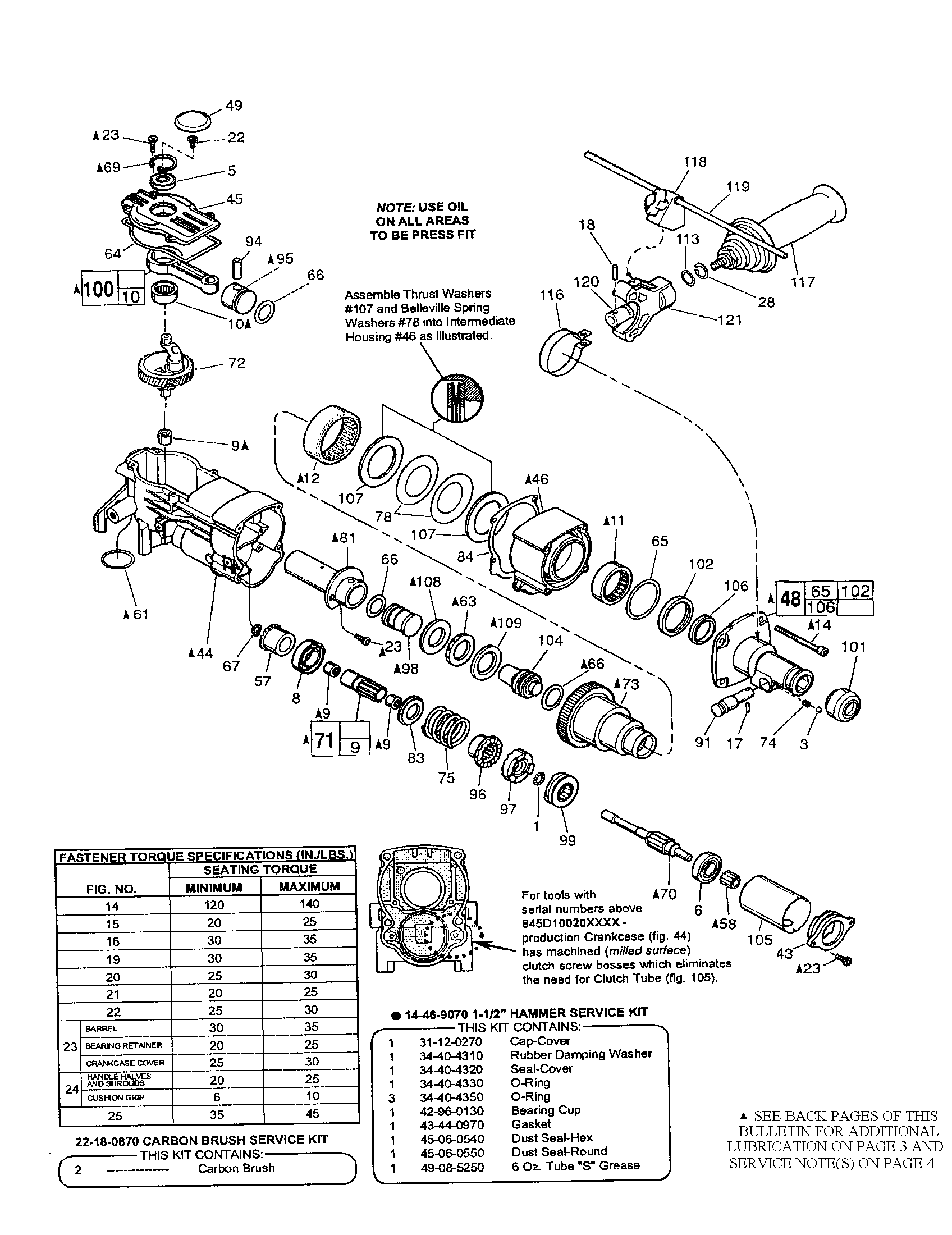

Crankcase/crankshaft diagram

O-ring (included in 1-1/2" hammer service kit)

Part #34-40-7330

The manufacturer no longer makes this part, and there's no substitute part

Ram (see Service Note On Pg. 4) 44-82-0170
#98

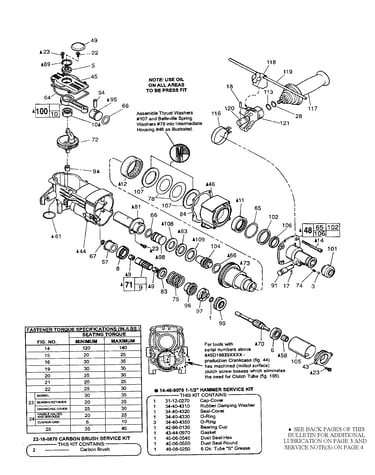

Crankcase/crankshaft diagram

Ram (see service note on pg. 4)

Part #44-82-0170

The manufacturer no longer makes this part, and there's no substitute part

M6 X 1.0 X 120 Pan Hd. Slt. Tapt. T-27 (4) 05-81-0920
#16

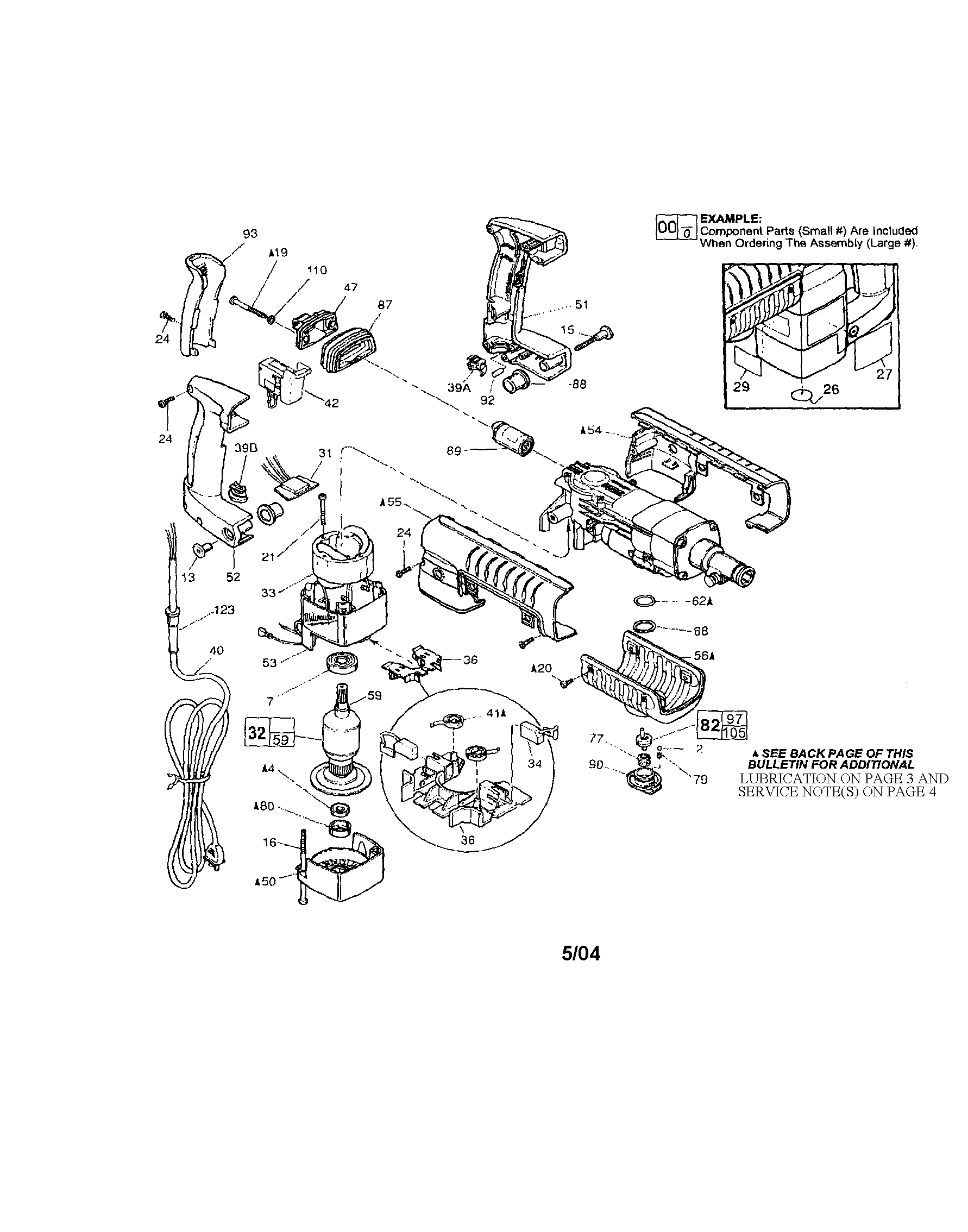

Shroud/handle/cord diagram

M6 x 1.0 x 120 pan hd. slt. tapt. t-27 (4)

Part #05-81-0920

The manufacturer no longer makes this part, and there's no substitute part

M6 X 1.0 X 70 Skt. Hd. Cap Screw T-27 (see Service Note On Pg. 4)(4) 05-81-0830
#14

Crankcase/crankshaft diagram

M6 x 1.0 x 70 skt. hd. cap screw t-27 (see service note on pg. 4)(4)

Part #05-81-0830

The manufacturer no longer makes this part, and there's no substitute part

Shift Ring 44-90-4400
#99

Crankcase/crankshaft diagram

Shift ring

Part #44-90-4400

The manufacturer no longer makes this part, and there's no substitute part

Striker 45-56-2610
#104

Crankcase/crankshaft diagram

Striker

Part #45-56-2610

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp Half 31-17-0260
#39A

Shroud/handle/cord diagram

Cord clamp half

Part #31-17-0260

The manufacturer no longer makes this part, and there's no substitute part

Band Retainer 44-86-0620
#120

Crankcase/crankshaft diagram

Band retainer

Part #44-86-0620

The manufacturer no longer makes this part, and there's no substitute part

Bit Lock 44-20-0222
#91

Crankcase/crankshaft diagram

Bit lock

Part #44-20-0222

The manufacturer no longer makes this part, and there's no substitute part

Barrel (see Service Note On Pg. 4) 42-98-0200
#81

Crankcase/crankshaft diagram

Barrel (see service note on pg. 4)

Part #42-98-0200

The manufacturer no longer makes this part, and there's no substitute part
