CONFIRM THE PART FITS

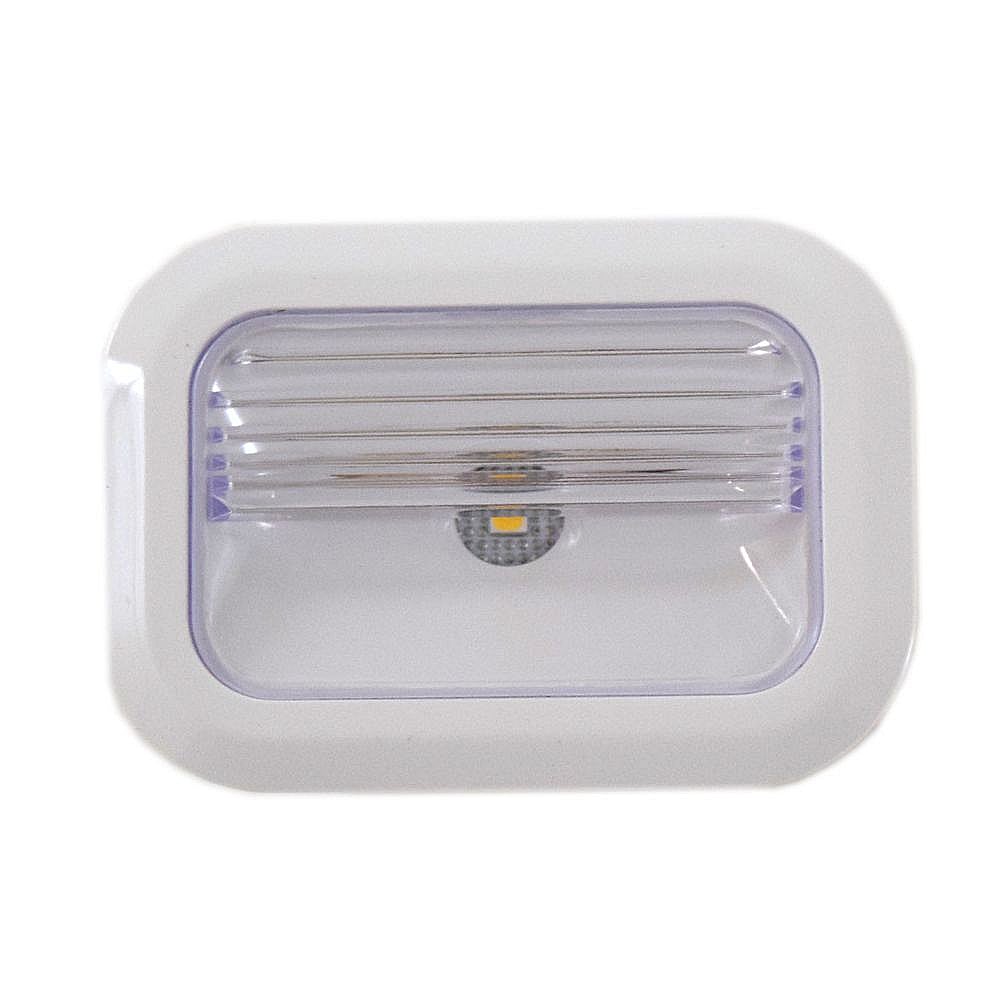

Refrigerator Light Board (replaces W10412708, W11205083) W10695459
Part #W10695459
Part Information
This light board (part number W10695459) is for refrigerators.
Light board W10695459 fits behind the light lens and has LED lights that illuminate the interior of the refrigerator or freezer compartments.
Unplug the refrigerator before installing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $73.61 |Â10% OFFÂ Was : $82.00
- $157.25 |Â6% OFFÂ Phone Price : $167.25
- $163.66 |Â6% OFFÂ Phone Price : $173.66
- $73.61 |Â10% OFFÂ Was : $82.00
- $209.01 |Â5% OFFÂ Phone Price : $219.01
- $273.19 |Â$10.00 OFFÂ Phone Price : $283.19
- $336.82 |Â$10.00 OFFÂ Phone Price : $346.82
- $207.25 |Â5% OFFÂ Phone Price : $217.25
- $198.16 |Â5% OFFÂ Phone Price : $208.16
- $140.73 |Â17% OFFÂ Was : $170.00
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #GSS26C4XXA02 Whirlpool side-by-side refrigerator | GSS26C4XXA02 | Refrigerator liner parts |
Model #KRFF707ESS01 KitchenAid bottom-mount refrigerator | KRFF707ESS01 | Freezer liner parts |
Model #KRFC604FSS01 KitchenAid bottom-mount refrigerator | KRFC604FSS01 | Freezer liner parts |
Model #WRX735SDBH00 Whirlpool refrigerator | WRX735SDBH00 | Cabinet parts |
Model #WRV996FDEH00 Whirlpool bottom-mount refrigerator | WRV996FDEH00 | Freezer liner parts |
Model #KFFS20EYMS02 KitchenAid bottom-mount refrigerator | KFFS20EYMS02 | Liner parts |
Model #ISC23CNEXW00 Ikea side-by-side refrigerator | ISC23CNEXW00 | Freezer liner parts |
Model #6WSC20C6XY02 Whirlpool side-by-side refrigerator | 6WSC20C6XY02 | Refrigerator liner parts |
Model #10651159112 Kenmore Elite side-by-side refrigerator | 10651159112 | Refrigerator liner parts |
Model #10651189112 Kenmore Elite side-by-side refrigerator | 10651189112 | Refrigerator liner parts |
Reviews
LED light replacement
Really easy fix just make sure you have a really thin putty knife to push in the clips to pop out the old LED light might have to cut some refrigerator foam out to get to the connector have a pair of needle nose pliers handy that's all I needed to change it took about 15 minutes
Jeff, Holbrook,PA
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Connectors were too big to fit in refrigerator
The light I was replacing was hard-wired so I had to cut the small plug off and use the provided wire connectors. It was very hard to reach since wires are short and located back in the top of the freezer compartment. Once I finally had the connectors attached, they were too big to fit back in the recess where the light snaps in, so I had to use electrical tape to hold it in place. Light works, but it isn't properly set all the way in place.
TimD, Oregon
2 people thought this review was helpful.
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Wrong connector.
The picture on the internet shows that it comes with a black connector, however when the part arrived it had a white connector which would not fit into the female connector on my refrigerator. According to Whirlpool this is the new replacement part so I needed to find somebody that will solder the old connector onto the new part.
![Photo 1 Photo 1](http://res.cloudinary.com/powerreviews/image/upload/f_auto,q_auto,h_768,w_auto/d_portal-no-product-image_ttlfpi.svg/prod/n1vcmgr28lii1n4cf209.jpg)
Tony, Johns Creek, GA.
2 people thought this review was helpful.
- Ease of Installation
- Difficult
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
Perfect replacement
Part was easy to replace. Just wish original part lasted longer than 2 years.
ejmc3, Virginia
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
