Primary Function: The control board manages the functions of the wall oven, including heating and temperature regulation.
Installation & Compatibility
Compatible Models: Fits various Frigidaire appliance models; please confirm this part is correct for your model before ordering.
Installation Difficulty: Medium — Requires electrical knowledge to perform tasks such as disconnecting power and wiring.
Tools Required: Screwdriver, multimeter (optional for diagnostics)
Additional Information

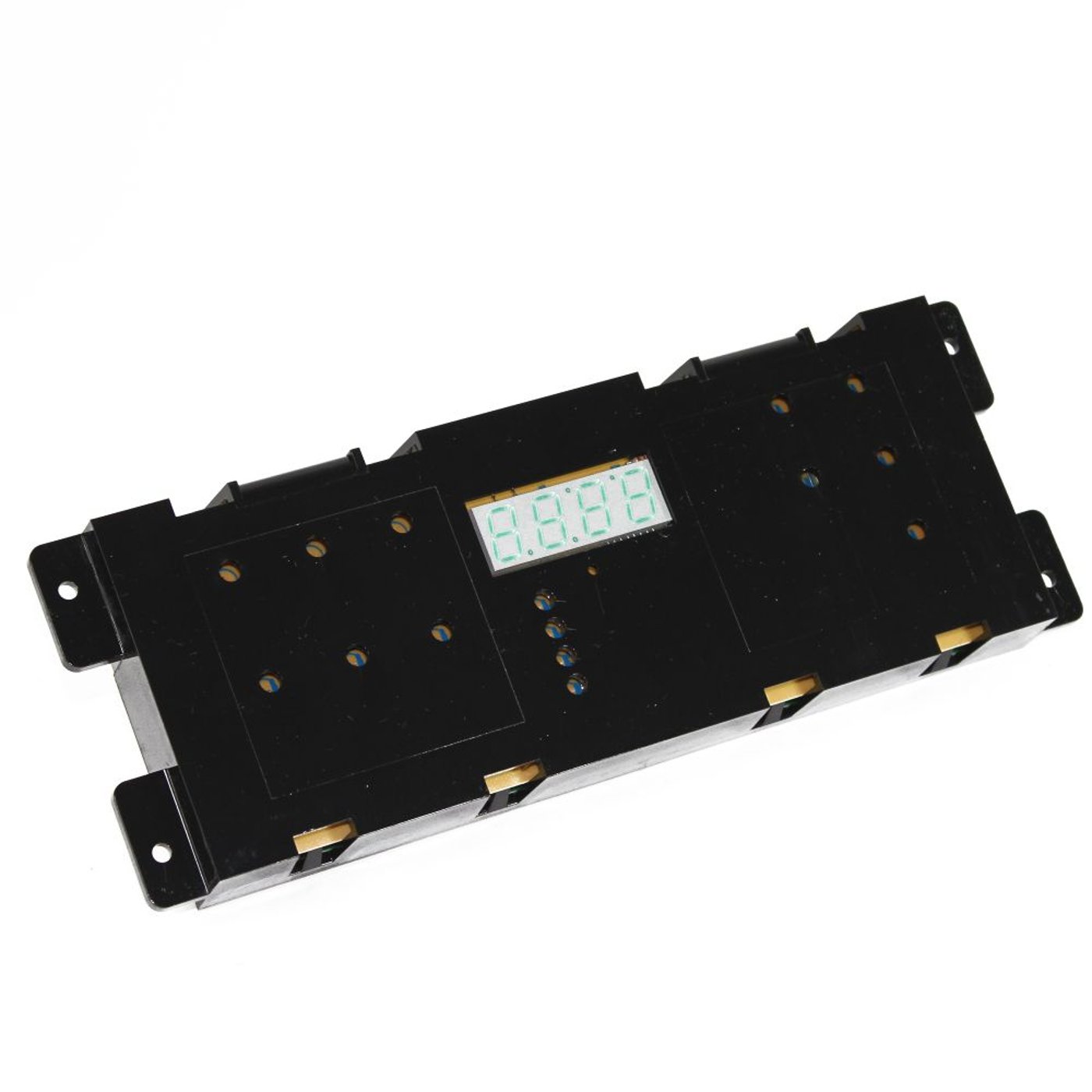

The Wall Oven Control Board (part number 316418581) plays a critical role in managing the key operations of your oven. It's responsible for controlling heating elements and maintaining the correct temperature settings as per user input.
Important Safety Note: Before beginning the installation, ensure the oven is unplugged or the power to the oven is turned off at the circuit breaker. This is crucial to prevent electrical shock or damage to the appliance. Always wear protective gloves to safeguard your hands during installation.
If the oven isn't heating properly or fails to maintain the set temperature, the control board may be malfunctioning. Replacing it can resolve these common issues, restoring functionality. Ensure compatibility with your specific model to guarantee optimal performance post-installation.
Frequently Bought Together
We have 15,000+ available parts
Range High-limit Thermostat
Part #318003624
In Stock
$24.69
20% OFF Phone Price : $30.69
Qty
Wall Oven Microwave Electronic Control Board
Part #5304475168
In Stock
$237.02
5% OFF Phone Price : $249.02
Qty
Frigidaire Range Bake Element
Part #318254902
In Stock
$127.56
9% OFF Phone Price : $139.56
Qty
Appliance Touch-up Paint, 0.6-oz (graphite)
Part #5304414863
In Stock
$32.35
16% OFF Phone Price : $38.35
Qty
Cooking Appliance Oven Temperature Sensor
Part #5304504897
In Stock
$32.02
16% OFF Phone Price : $38.02
Qty
Frigidaire Range Oven Temperature Sensor
Part #316217002
In Stock
$50.60
11% OFF Phone Price : $56.60
Qty
Reviews
0 Reviews
Worked like a champ
December 03, 2018|Ladybug, Texas
Unattached old. Reattached new. Be sure to turn off elactricity. Done.
Ease of InstallationVery Difficult
Duration of InstallationLess than 30 minutes
verified customer
Was this review helpful?
Exact replacement for Kenmore wall oven.
May 08, 2018|PaulESAm, Sugar Land, TX
Neither top or bottom element would heat at all. Everything else worked, clock, timer, etc. Turned off breaker. Removed oven from cabinet. Did not disconnect service wires. I just set the oven on a small table next to the cabinet. Removed control panel cover. Removed 4 screws from board. took picture of wires connected to board. Removed wires. Reconnected wires to new board and reattached with 4 screws. Replaced cover. Reinstalled oven back in cabinet. Turned on breaker. Set clock on oven, tested bake and broil. both worked.
Ease of InstallationVery Easy
Duration of Installation30 minutes - 1 hour
verified customer
2 people thought this review was helpful.
Simple easy installation
April 13, 2021|Slugga, Memphis
Part arrived in a timely manner....worked just fine easy install.....would definitely do business with them again!
verified customer
