Part Information

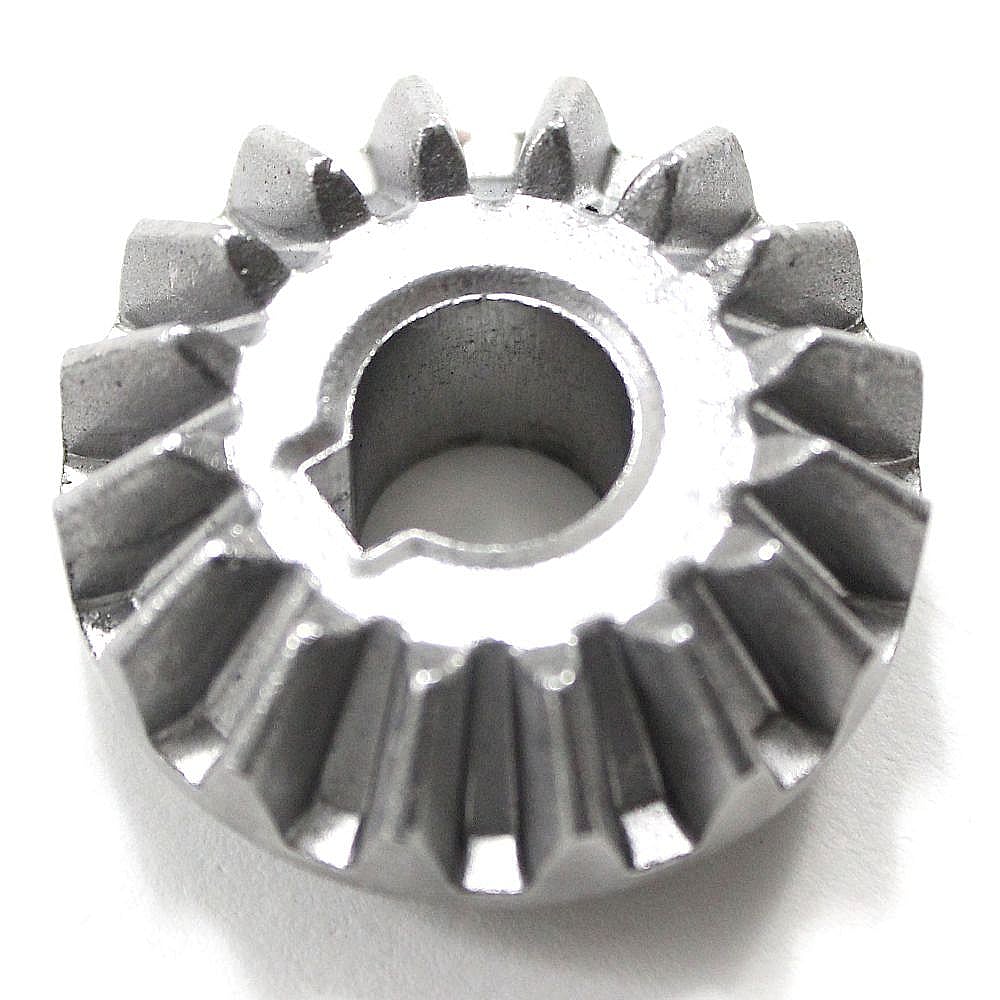

This bevel gear (part number 5140061-65) is for table saws.
Bevel gear 5140061-65 meshes with the worm gear to raise and lower the blade height.
Unplug the table saw before installing this part. Wear work gloves to protect your hands.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #DWE7490X TYPE 1 DeWalt table saw | DWE7490X TYPE 1 | Saw assy |
| Model #DWE7499GD TYPE 1 DeWalt table saw | DWE7499GD TYPE 1 | Saw assy |
| Model #DWE7499GD TYPE 2 DeWalt table saw | DWE7499GD TYPE 2 | Saw |
| Model #DWE7480 TYPE 1 DeWalt table saw | DWE7480 TYPE 1 | Base assy |
| Model #DCS7485B TYPE 1 DeWalt table saw | DCS7485B TYPE 1 | Assembly 1 |
| Model #DW745 TYPE 3 DeWalt table saw | DW745 TYPE 3 | Table assy |
| Model #DWE7490X TYPE 2 DeWalt table saw | DWE7490X TYPE 2 | Saw assy |
| Model #DWE7491RS TYPE 1 DeWalt table saw | DWE7491RS TYPE 1 | Saw assy |
| Model #DWE7480 TYPE 20 DeWalt table saw | DWE7480 TYPE 20 | Saw asy |
| Model #DW745 TYPE 2 DeWalt table saw | DW745 TYPE 2 | Cabinet assy |
