$54.79 |
8% OFF Phone Price : $59.79
CONFIRM THE PART FITS
Part Information

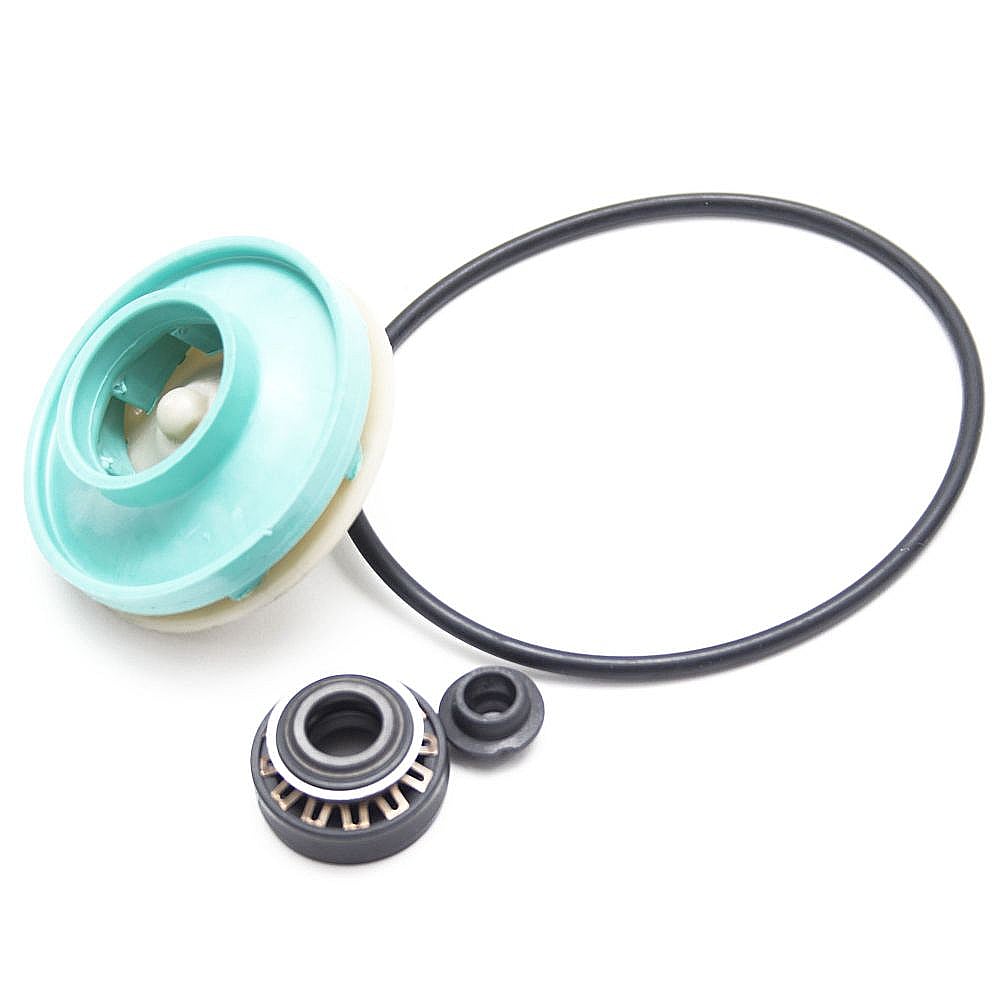

This pump impeller and seal kit (part number 00167085) is for dishwashers.
Pump impeller and seal kit 00167085 connects to the wash motor shaft and spins to deliver water to the spray arms to clean the dishes. The kit may include multiple parts; refer to your parts diagram for a complete list of parts included.
Unplug the dishwasher or shut off the house circuit breaker before installing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $114.78 |8% OFF Phone Price : $124.78
- $28.09 |15% OFF Phone Price : $33.09
- $283.24
- $26.59 |16% OFF Phone Price : $31.59
- $35.79 |12% OFF Phone Price : $40.79
- $201.79 |5% OFF Phone Price : $211.79
- $85.29 |6% OFF Phone Price : $90.29
- $4.79 |17% OFF Phone Price : $5.79
- $41.00
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #SHU8816UC/12 (FD 8105) Bosch dishwasher | SHU8816UC/12 (FD 8105) | |
| Model #SHX46A05UC/14 Bosch dishwasher | SHX46A05UC/14 | |
| Model #SHU43E05UC/14 Bosch dishwasher | SHU43E05UC/14 | |
| Model #SHX56B05UC/14 (FD8211) Bosch dishwasher | SHX56B05UC/14 (FD8211) | |
| Model #63016304400 Kenmore Elite dishwasher | 63016304400 | |
| Model #SHY99A02UC/14 (FD8212) Bosch dishwasher | SHY99A02UC/14 (FD8212) | |
| Model #SHU43E06UC/14 Bosch dishwasher | SHU43E06UC/14 | |
| Model #63016309400 Kenmore Elite dishwasher | 63016309400 | |
| Model #SHU43C05UC/17 Bosch dishwasher | SHU43C05UC/17 | |
| Model #SHX99A15UC/19 Bosch dishwasher | SHX99A15UC/19 |
Reviews
Fairly Simple Repair with some things to watch for
I would recommend downloading the Bosch repair manual for the dishwasher before you begin because there were a couple of things I referred to while completing this repair. I would recommend spending the time to completely drain the inside sump before doing anything else. The repair manual says to use would blocks to raise the tank and separate the base for pulling the pump motor off. I found it easier to lay remove the base screws from the front and back of the base first, then lay the machine on its back because you need to pull the cables off the door spring. While it is still on its back you can then remove the pump motor rubber stays, and pull the base far enough away to get the pump out. The motor has a small plastic detent in the 4-oclock position, then rotate the pump counter-clock wise. Once the pump motor is off, you can then use a screwdriver to hold the motor from turning, and then unscrew the impeller. Once the impeller is off, you can rotate the pump housing to remove it from the motor. This is critical to replace the spacer from the kit. Then you can replace the pump bushing, screw on the new impeller, and then replace the pump main gasket (big o ring). The whole assembly is put back together with a clockwise rotation of the pump motor. I went careful and slow and it took me about 5 hours for the entire disconnect to cleanup process but only about 5 minutes for the actual impeller replacement. Getting the unit disconnected from the water and electricity, all of the pieces you need to remove and put back on, then reconnecting and leveling the unit takes all the time.
Dale, Carmel, IN
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
Dishwasher impeller
This was the only place I could find the part. The part was exact part needed.
Jaun, Ohio
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
