Model # 564351010 Official Kenmore portable kerosene heater

Here are the diagrams and repair parts for Official Kenmore 564351010 portable kerosene heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 46 parts |

#12

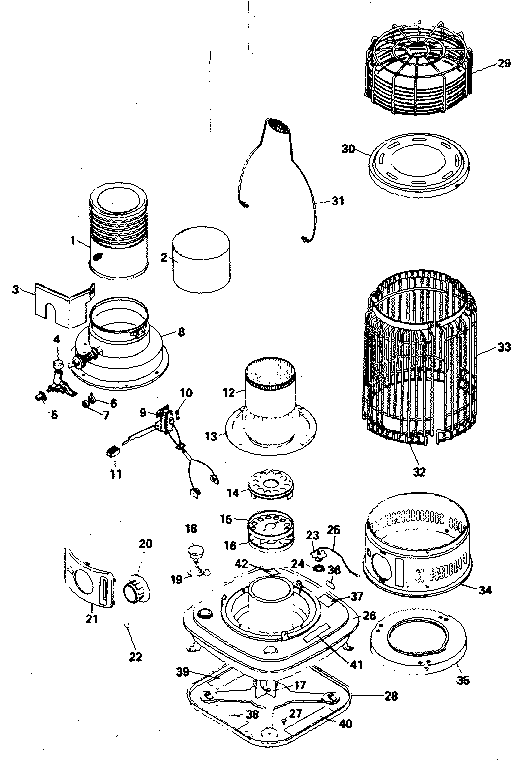

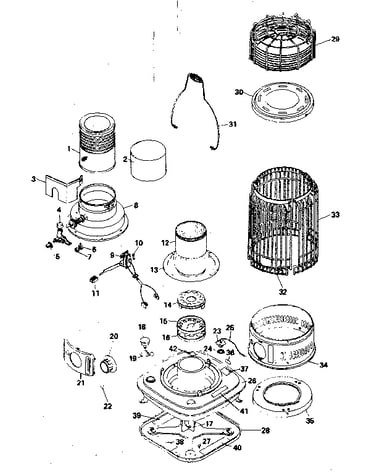

Functional replacement parts diagram

Wick

Part #7312450116301

The manufacturer no longer makes this part, and there's no substitute part

#32

Functional replacement parts diagram

Guard a

Part #7312150134500

The manufacturer no longer makes this part, and there's no substitute part

#25

Functional replacement parts diagram

Chain

Part #7310111610300

The manufacturer no longer makes this part, and there's no substitute part

#14

Functional replacement parts diagram

Tube cap

Part #7312616111200

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Wick guide

Part #7310450312800

The manufacturer no longer makes this part, and there's no substitute part

#31

Functional replacement parts diagram

Handle

Part #7310430611200

The manufacturer no longer makes this part, and there's no substitute part

#19

Functional replacement parts diagram

Packing

Part #7312621111700

The manufacturer no longer makes this part, and there's no substitute part

#37

Functional replacement parts diagram

Plate

Part #7316454917200

The manufacturer no longer makes this part, and there's no substitute part

#20

Functional replacement parts diagram

Control knob

Part #7310450511712

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Siphon pump

Part #7312030110300

The manufacturer no longer makes this part, and there's no substitute part
