Model # 131974711 Official Craftsman 22" power-propelled lawn mower with rear bagger

Here are the diagrams and repair parts for Official Craftsman 131974711 22" power-propelled lawn mower with rear bagger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |

Blade 69334
#50

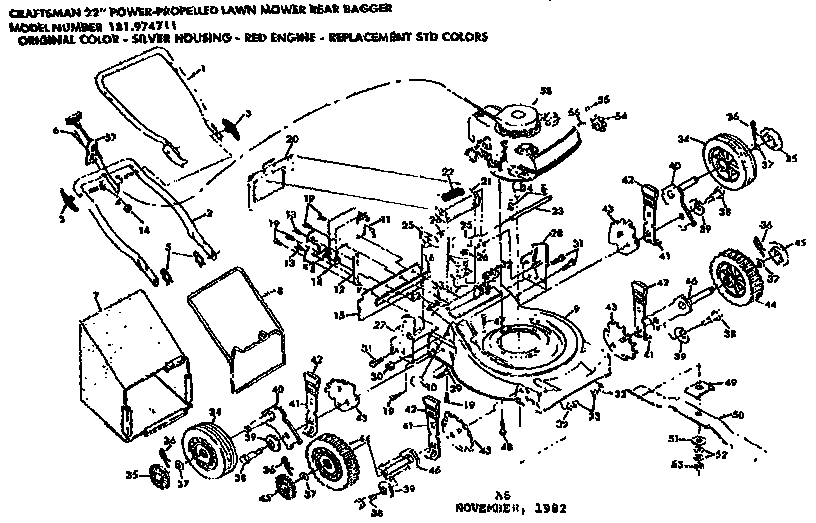

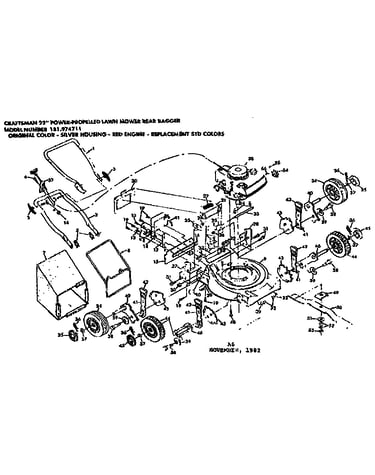

Mower deck and handle assembly diagram

Blade

Part #69334

Replaced by #532406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29
17% OFF Phone Price : $34.29
In Stock
Keps Nut STD541431
#30

Mower deck and handle assembly diagram

Keps nut

Part #STD541431

Replaced by #596040501

?
Manufacturer substitution
This part replaces STD541431. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
Washer 52160
#37

Mower deck and handle assembly diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 55187
#31

Mower deck and handle assembly diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Wheel And Tire Assembly 78890
#44

Mower deck and handle assembly diagram

Wheel and tire assembly

Part #78890

The manufacturer no longer makes this part, and there's no substitute part

Decal 78850
#10

Mower deck and handle assembly diagram

Decal

Part #78850

Replaced by #539913010

?
Manufacturer substitution
This part replaces 78850. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lawn Mower Retainer Clip, 4-pack 55015
#36

Mower deck and handle assembly diagram

Lawn mower retainer clip, 4-pack

Part #55015

Replaced by #582934801

?
Manufacturer substitution
This part replaces 55015. Substitute parts can look different from the original.
This item is not returnable
In Stock
Hairpin 51793
#5

Mower deck and handle assembly diagram

Hairpin

Part #51793

Replaced by #532051793

?
Manufacturer substitution
This part replaces 51793. Substitute parts can look different from the original.
This item is not returnable
$7.98
11% OFF Phone Price : $8.98
In Stock
Repair Link Kit STD316659
#36

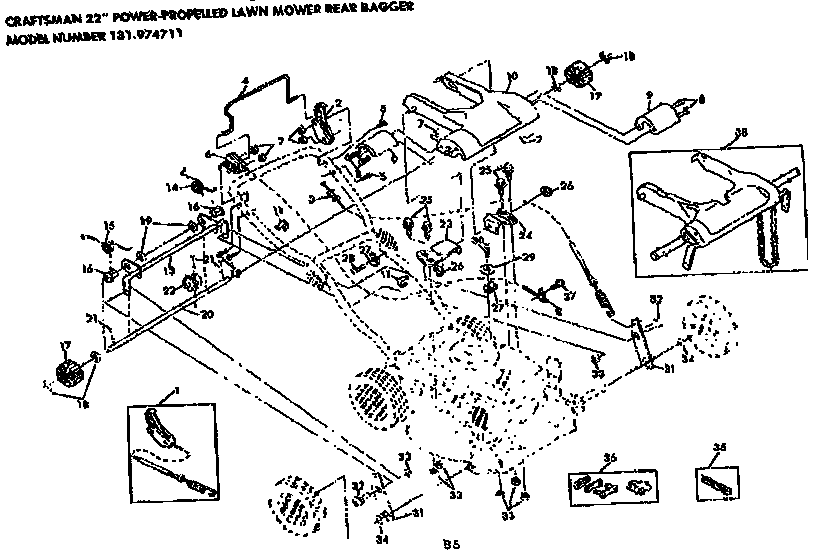

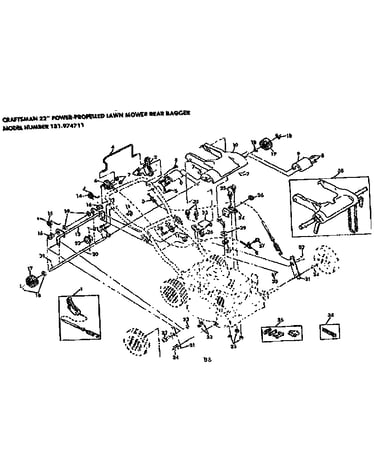

Drive assembly diagram

Repair link kit

Part #STD316659

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob 63688
#3

Mower deck and handle assembly diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98
14% OFF Phone Price : $13.98
In Stock
