Amana CR2-1/P67850-3C remote condensing section - cr series Parts

Name: Amana CR2-1/P67850-3C Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: CR2-1/P67850-3C
Availability: InStock

Here are the diagrams and repair parts for Amana CR2-1/P67850-3C remote condensing section - cr series, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

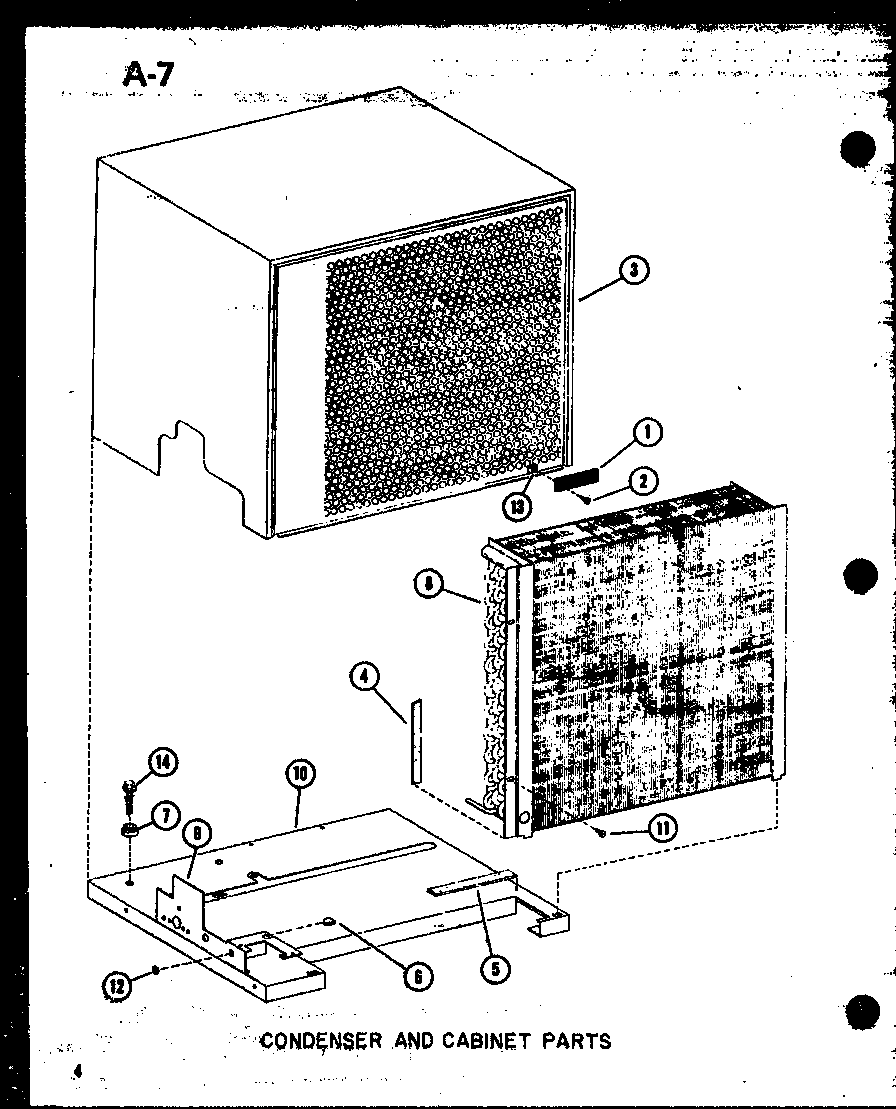

Browse Parts for CR2-1/P67850-3C Remote Condensing Section - CR Series

Compressor and tubing parts (cr1.5-1/p67850-1c) (cr2-1/p67850-2c) (cr2-1/p67850-3c) (cr2.5-1/p67850-4c) (cr2.5-1/p67850-5c) (cr3-1/p67850-6c) diagram
Coupling
Part #C5201606
The manufacturer no longer makes this part, and there's no substitute part
Compressor and tubing parts (cr1.5-1/p67850-1c) (cr2-1/p67850-2c) (cr2-1/p67850-3c) (cr2.5-1/p67850-4c) (cr2.5-1/p67850-5c) (cr3-1/p67850-6c) diagram
*$* Process
Part #A4637801
The manufacturer no longer makes this part, and there's no substitute part

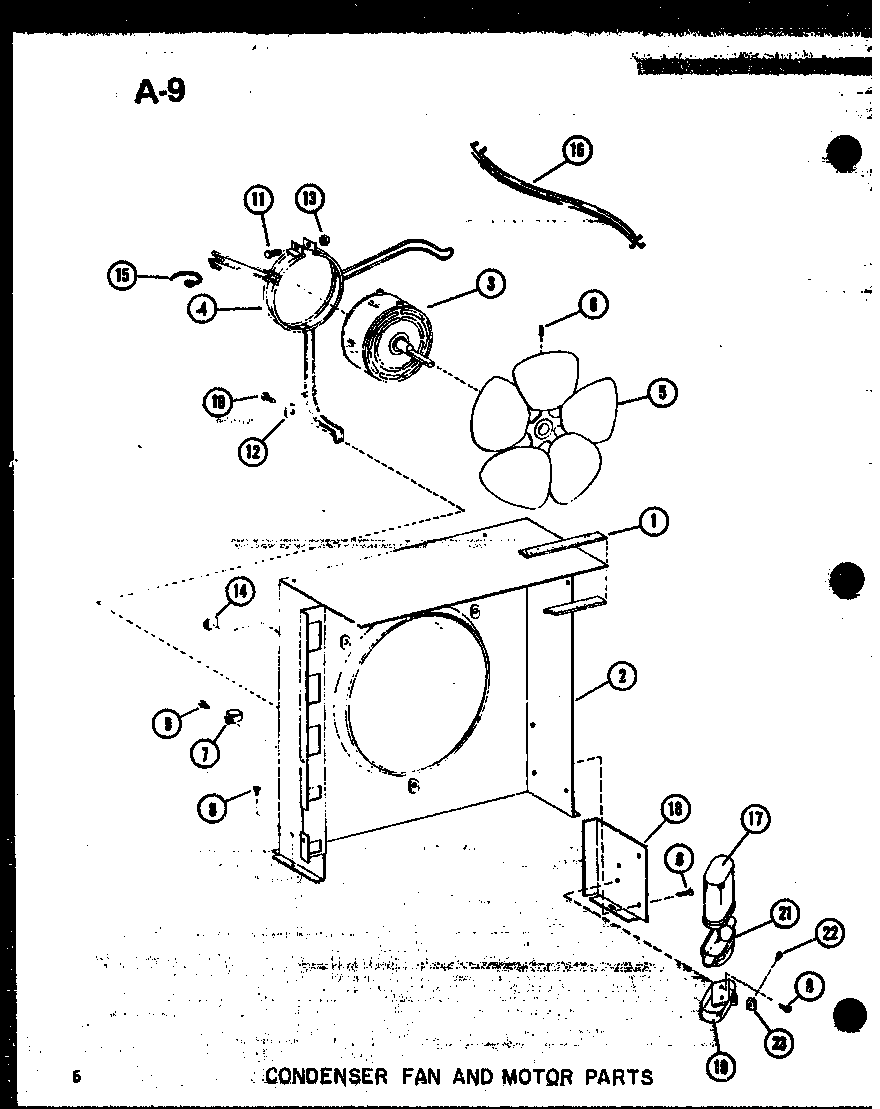

Condenser fan and motor parts (cr1.5-1/p67850-1c) (cr2-1/p67850-2c) (cr2-1/p67850-3c) (cr2.5-1/p67850-4c) (cr2.5-1/p67850-5c) (cr3-1/p67850-6c) diagram
Wiring Harness, Comp.
Part #C6229401
The manufacturer no longer makes this part, and there's no substitute part

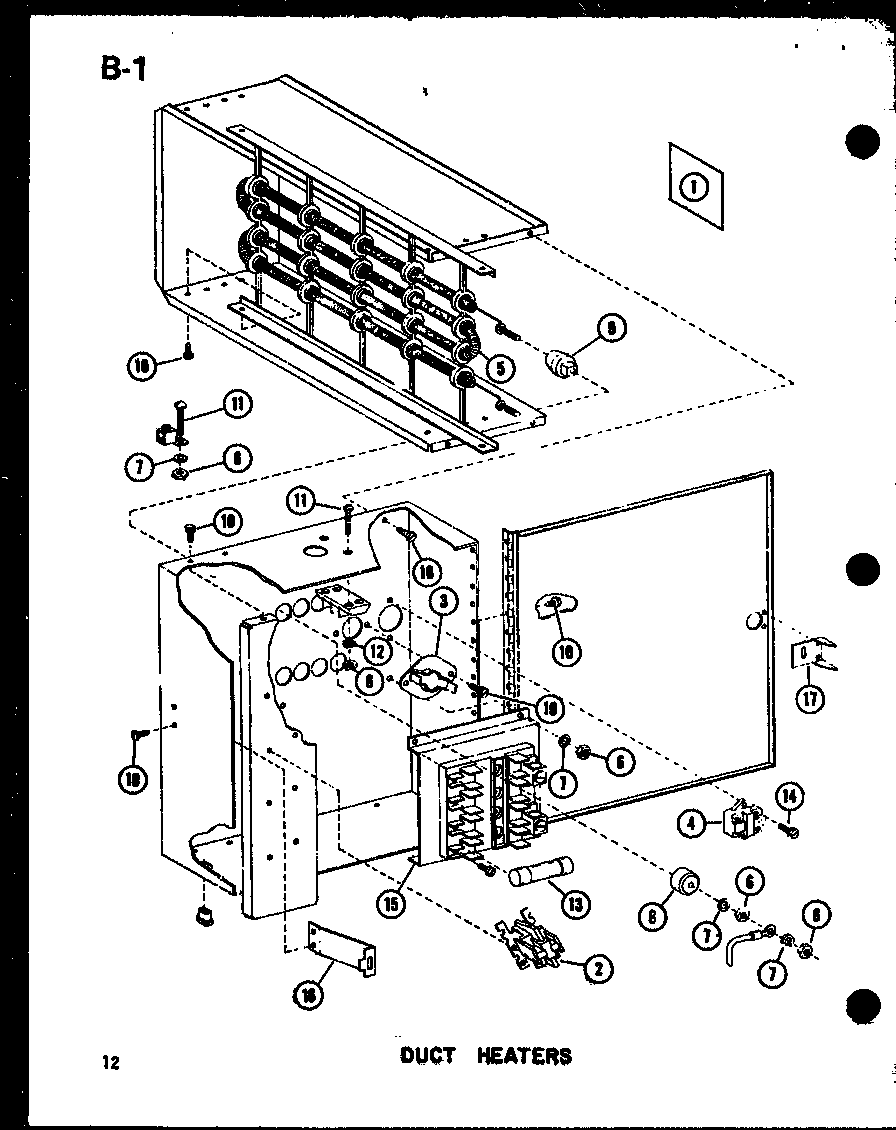

Duct heaters (d55338-5/p55338-5c) (d55338-10/p55338-10c) (d55388-15/p55338-15c) (d55338-20/p55338-20c) diagram
Heat Relay, Tuttle Cr-787-a7
Part #B1176101
The manufacturer no longer makes this part, and there's no substitute part
Condenser fan and motor parts (cr1.5-1/p67850-1c) (cr2-1/p67850-2c) (cr2-1/p67850-3c) (cr2.5-1/p67850-4c) (cr2.5-1/p67850-5c) (cr3-1/p67850-6c) diagram
Use M0288011
Part #M0288008
The manufacturer no longer makes this part, and there's no substitute part
Compressor and tubing parts (cr1.5-1/p67850-1c) (cr2-1/p67850-2c) (cr2-1/p67850-3c) (cr2.5-1/p67850-4c) (cr2.5-1/p67850-5c) (cr3-1/p67850-6c) diagram
Comp. 2 H.p. 208/230 V., 60 Cy., 10 Tec. Ah141ft-014-a2a
Part #M0400903
The manufacturer no longer makes this part, and there's no substitute part
(cr1.5-1/p67850-1c) (cr2-1/p67850-2c) (cr2-1/p67850-3c) (cr2.5-1/p67850-4c) (cr2.5-1/p67850-5c) (cr3-1/p67850-6c) diagram
Coil, Contractor, Holding 24 Volts
Part #A0057801
The manufacturer no longer makes this part, and there's no substitute part
Compressor and tubing parts (cr1.5-1/p67850-1c) (cr2-1/p67850-2c) (cr2-1/p67850-3c) (cr2.5-1/p67850-4c) (cr2.5-1/p67850-5c) (cr3-1/p67850-6c) diagram
Comp, 2-1/2 H.p., 10, 60 Hz, Tec. Ah5531e
Part #M0401404
The manufacturer no longer makes this part, and there's no substitute part
Compressor and tubing parts (cr1.5-1/p67850-1c) (cr2-1/p67850-2c) (cr2-1/p67850-3c) (cr2.5-1/p67850-4c) (cr2.5-1/p67850-5c) (cr3-1/p67850-6c) diagram
Comp. 3 H.p. 208-230 V. 60 Cy., 10, Tecumseh Ah301ft-077
Part #M0400001
The manufacturer no longer makes this part, and there's no substitute part
Compressor and tubing parts (cr1.5-1/p67850-1c) (cr2-1/p67850-2c) (cr2-1/p67850-3c) (cr2.5-1/p67850-4c) (cr2.5-1/p67850-5c) (cr3-1/p67850-6c) diagram
Screw
Part #M0206116
The manufacturer no longer makes this part, and there's no substitute part
