GE JVM152H01 over-the-range microwave Parts

Here are the diagrams and repair parts for GE JVM152H01 over-the-range microwave, as well as links to manuals and error code tables, if available.

GE JVM152H01 over-the-range microwave
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

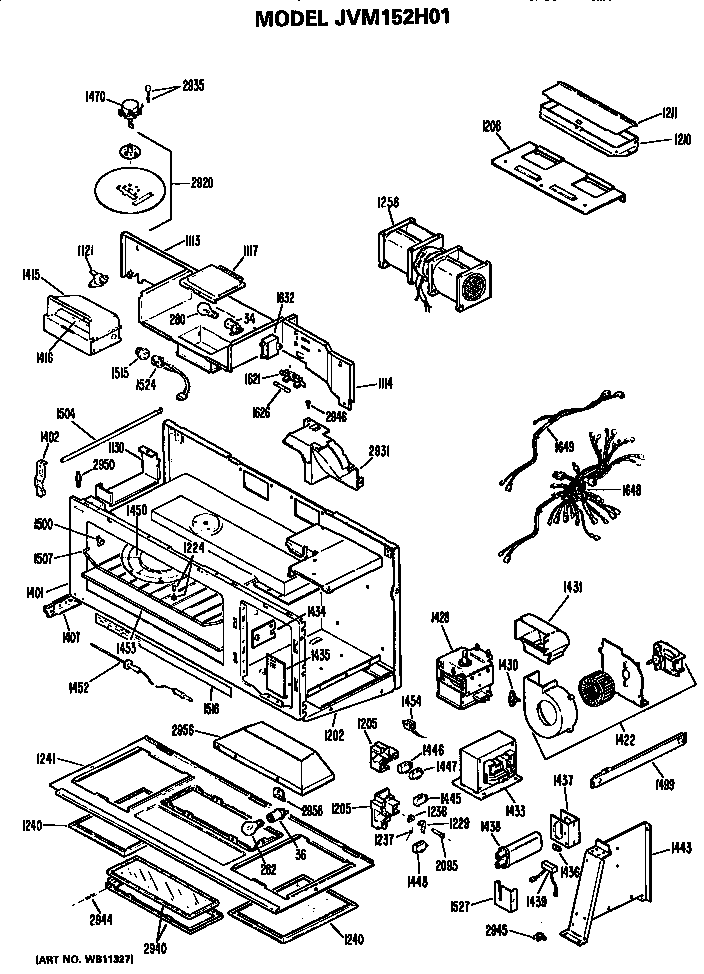

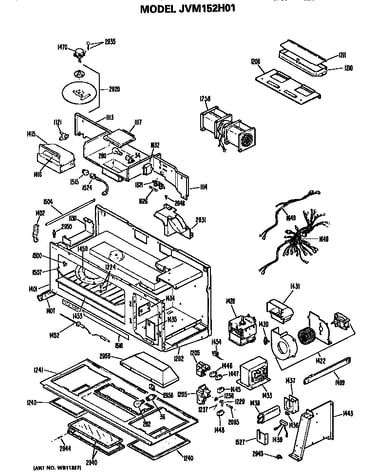

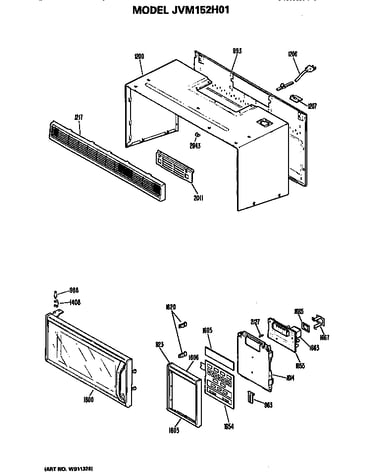

Browse Parts for JVM152H01 Over-the-Range Microwave

  • Microwave High-voltage Capacitor for GE JVM152H01 - Part WB27X10011

    #1438

    All parts diagram

    Capacitor

    Part #WB27X585

    Replaced by #WB27X10011

    Info Icon
    Manufacturer substitution
    This part replaces WB27X585. Substitute parts can look different from the original.
    In Stock
    $85.54
    7% OFF Phone Price : $91.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Motor Capacitor for GE JVM152H01 - Part WB27X10170

    #1632

    All parts diagram

    Motor Capacitor

    Part #WB27X583

    Replaced by #WB27X10170

    Info Icon
    Manufacturer substitution
    This part replaces WB27X583. Substitute parts can look different from the original.
    In Stock
    $16.34
    11% OFF Phone Price : $18.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Magnetron for GE JVM152H01 - Part WB27X10249

    #1428

    All parts diagram

    Magnetron

    Part #WB27X582

    Replaced by #WB27X10249

    Info Icon
    Manufacturer substitution
    This part replaces WB27X582. Substitute parts can look different from the original.
    In Stock
    $271.43
    $12.00 OFF Phone Price : $283.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Sensor So for GE JVM152H01 - Part WB8X298

    #1524

    All parts diagram

    Sensor So

    Part #WB8X298
    In Stock
    $43.98
    Minus Item
    Qty
    Plus Item
  • Trim-uppe for GE JVM152H01 - Part WB7X1760

    #1606

    All parts diagram

    Trim-uppe

    Part #WB7X1760
    In Stock
    $54.21
    Minus Item
    Qty
    Plus Item
  • Duct Upr for GE JVM152H01 - Part WB2X9949

    #2931

    All parts diagram

    Duct Upr

    Part #WB2X9949
    In Stock
    $100.61
    Minus Item
    Qty
    Plus Item
  • Bracket for GE JVM152H01 - Part WB2X9951

    #1437

    All parts diagram

    Bracket

    Part #WB2X9951
    In Stock
    $58.67
    Minus Item
    Qty
    Plus Item
  • Brckt-fro for GE JVM152H01 - Part WB2X9936

    #1620

    All parts diagram

    Brckt-fro

    Part #WB2X9936
    In Stock
    $44.24
    Minus Item
    Qty
    Plus Item
  • Label for GE JVM152H01 - Part WB7X1426

    #1516

    All parts diagram

    Label

    Part #WB7X1426
    In Stock
    $41.34
    Minus Item
    Qty
    Plus Item
  • Pin Wire for GE JVM152H01 - Part WB2X9357

    #2944

    All parts diagram

    Pin Wire

    Part #WB2X9357
    In Stock
    $28.99
    Minus Item
    Qty
    Plus Item
