Model # JGP985WEJ1WW Official GE gas range

Here are the diagrams and repair parts for Official GE JGP985WEJ1WW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 69 parts |

Cooktop Igniter Switch And Harness Assembly WB24X10143

#24

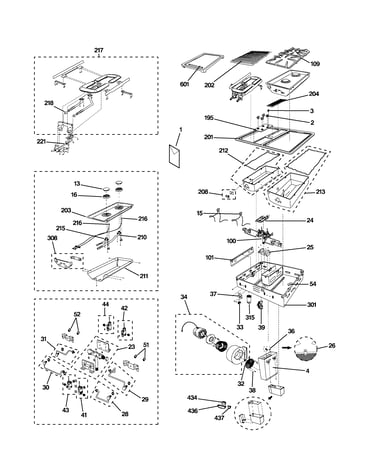

Cooktop range diagram

Cooktop igniter switch and harness assembly

Part #WB24X10143

$193.07 |

5% OFF Phone Price : $203.07

In Stock

Qty

#109

Cooktop range diagram

Range surface burner grate

Part #WB32X10066

$182.60 |

5% OFF Phone Price : $192.60

In Stock

Qty

#13

Cooktop range diagram

Cooktop burner cap (black)

Part #WB16X10028

$39.38 |

11% OFF Phone Price : $44.38

In Stock

Qty

#195

Cooktop range diagram

Control panel

Part #WB27X10836

$139.39 |

7% OFF Phone Price : $149.39

In Stock

Qty

#195

Cooktop range diagram

Cooktop control panel

Part #WB27X10838

$156.59 |

6% OFF Phone Price : $166.59

In Stock

Qty

#42

Cooktop range diagram

Valve assembly

Part #WB21X10134

$78.33

In Stock

Qty

#101

Cooktop range diagram

Insulator si

Part #WB35X10006

$34.35

In Stock

Qty

#16

Cooktop range diagram

Cooktop burner base

Part #WB16X10024

$80.86 |

6% OFF Phone Price : $85.86

In Stock

Qty

#39

Cooktop range diagram

Regulator

Part #WB19X10025

Replaced by #WB19X10028

$121.38

In Stock

Qty

#436

Cooktop range diagram

Spark module

Part #WB02X11172

Replaced by #WB13T10046

$54.21 |

8% OFF Phone Price : $59.21

In Stock

Qty
