Model # PD-M801 Official Pioneer cd player

Here are the diagrams and repair parts for Official Pioneer PD-M801 cd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

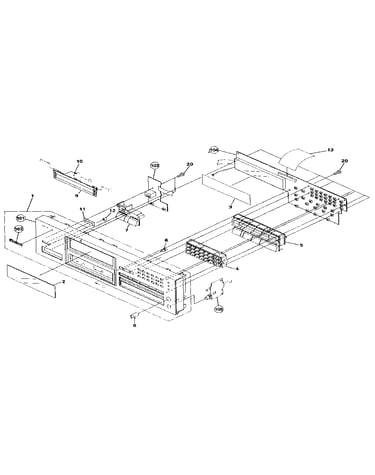

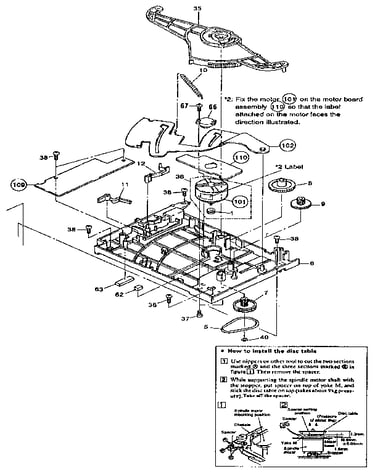

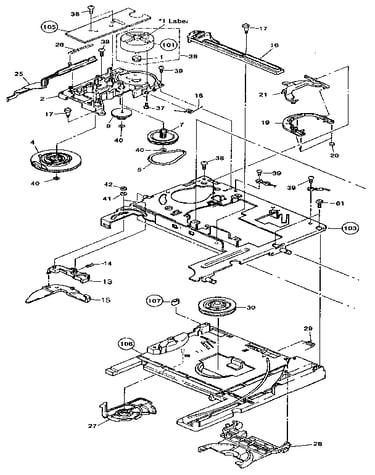

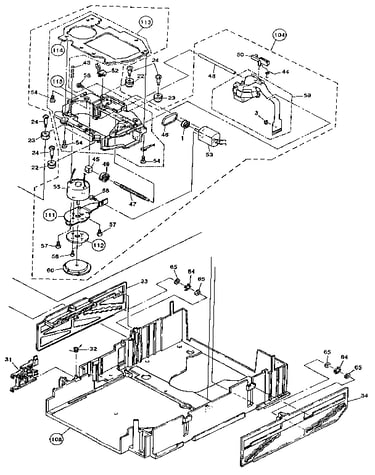

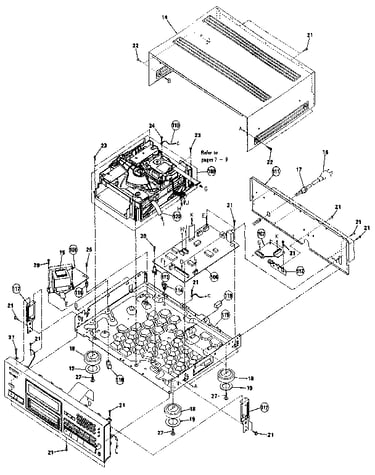

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Pwr Cord W/p PDG1015
Pwr cord w/p

Part #PDG1015

The manufacturer no longer makes this part, and there's no substitute part

Button Assembly PAC1669
Button assembly

Part #PAC1669

The manufacturer no longer makes this part, and there's no substitute part

Yoke M PNB1227
Yoke m

Part #PNB1227

The manufacturer no longer makes this part, and there's no substitute part

Buuton Asy PAC1667
Buuton asy

Part #PAC1667

The manufacturer no longer makes this part, and there's no substitute part

Rear Base PNA1802
Rear base

Part #PNA1802

The manufacturer no longer makes this part, and there's no substitute part

Lever PNW1933
Lever

Part #PNW1933

The manufacturer no longer makes this part, and there's no substitute part

Screen PAM1479
Screen

Part #PAM1479

The manufacturer no longer makes this part, and there's no substitute part

Sensor VNK1566
Sensor

Part #VNK1566

The manufacturer no longer makes this part, and there's no substitute part

Steel Screw PMZ20P030FMC
Steel screw

Part #PMZ20P030FMC

The manufacturer no longer makes this part, and there's no substitute part

3x15mm Twh IBZ30P150FCC
3x15mm twh

Part #IBZ30P150FCC

The manufacturer no longer makes this part, and there's no substitute part
