Model # 6-8536X7 Official Murray 20" bicycle - 1976

Here are the diagrams and repair parts for Official Murray 6-8536X7 20" bicycle - 1976, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Master Link 303476
#21A

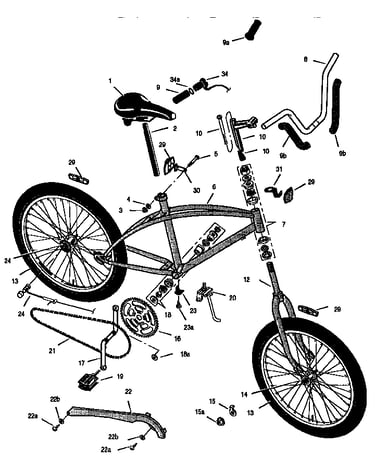

Unit parts diagram

Master link

Part #303476

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302336
#20

Unit parts diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Washer 17X47Z
#4

Unit parts diagram

Washer

Part #17X47Z

The manufacturer no longer makes this part, and there's no substitute part

Cable Casing 308525
#34B

Unit parts diagram

Cable casing

Part #308525

The manufacturer no longer makes this part, and there's no substitute part

Nut St Mntg 15X2
#3

Unit parts diagram

Nut st mntg

Part #15X2

The manufacturer no longer makes this part, and there's no substitute part

Seat Decal 44X5877

#NI

All parts diagram

Seat decal

Part #44X5877

The manufacturer no longer makes this part, and there's no substitute part

Screw 180X18
#22A

Unit parts diagram

Screw

Part #180X18

The manufacturer no longer makes this part, and there's no substitute part

Saddle 98X757
#1

Unit parts diagram

Saddle

Part #98X757

The manufacturer no longer makes this part, and there's no substitute part

Crank Assembly 37346C
#17

Unit parts diagram

Crank assembly

Part #37346C

The manufacturer no longer makes this part, and there's no substitute part

Decal,lowe 44X5529

#NI

All parts diagram

Decal,lowe

Part #44X5529

The manufacturer no longer makes this part, and there's no substitute part
