Model # 650 Official Senco nailer

Here are the diagrams and repair parts for Official Senco 650 nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 84 parts |

#KB3255

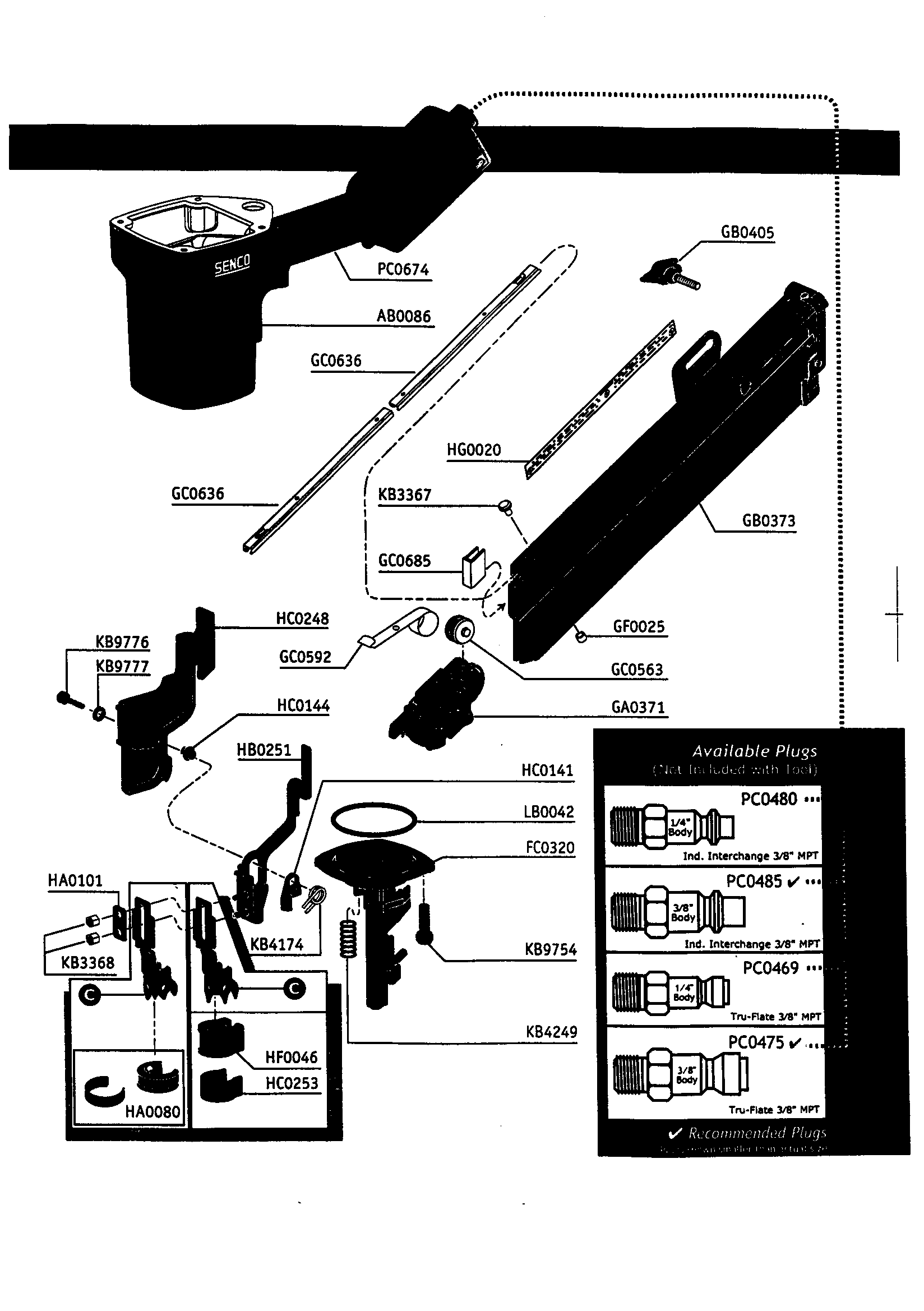

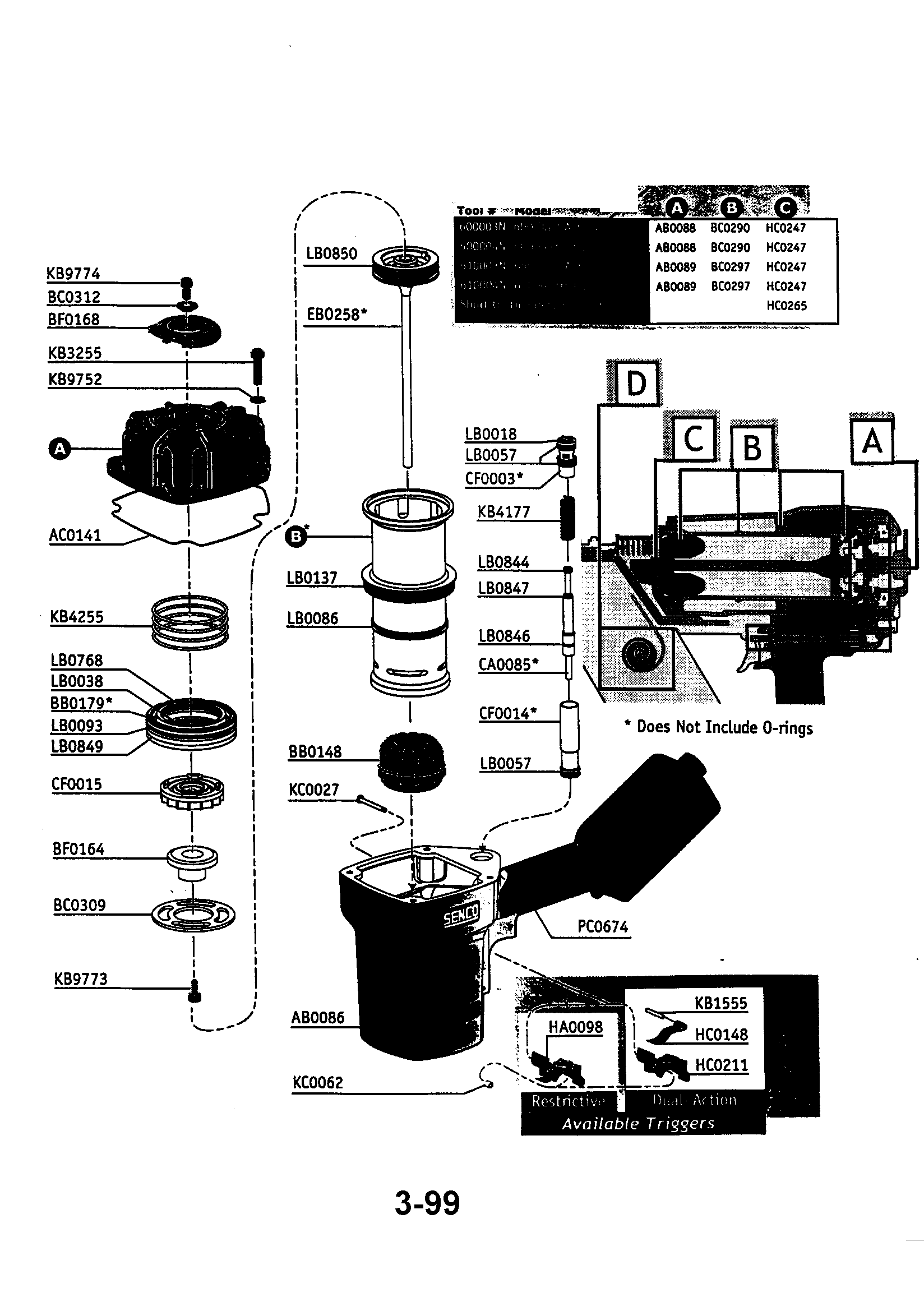

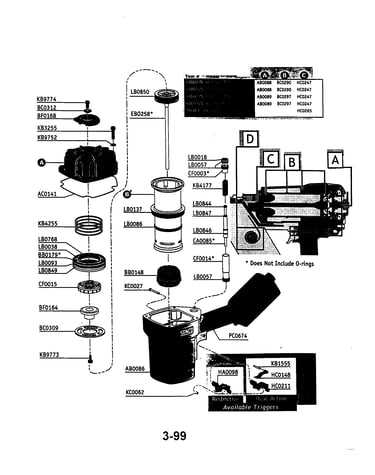

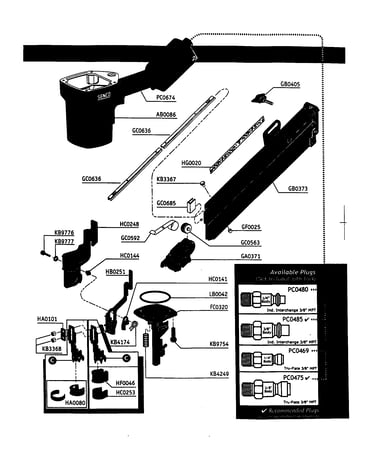

All parts diagram

Screw

Part #KB3255

The manufacturer no longer makes this part, and there's no substitute part

#PC0674

All parts diagram

Grip

Part #PC0674

The manufacturer no longer makes this part, and there's no substitute part

#HA0098

All parts diagram

Trigger

Part #HA0098

The manufacturer no longer makes this part, and there's no substitute part

#LB0038

All parts diagram

Seal

Part #LB0038

The manufacturer no longer makes this part, and there's no substitute part

#BB0148

All parts diagram

Stop

Part #BB0148

The manufacturer no longer makes this part, and there's no substitute part

#HB0251

All parts diagram

Safety

Part #HB0251

The manufacturer no longer makes this part, and there's no substitute part

#LB0849

All parts diagram

Seal

Part #LB0849

The manufacturer no longer makes this part, and there's no substitute part

#HC0247

All parts diagram

Safety

Part #HC0247

The manufacturer no longer makes this part, and there's no substitute part

#KC0027

All parts diagram

Part #KC0027

The manufacturer no longer makes this part, and there's no substitute part

#AB0089

All parts diagram

Cap,dual

Part #AB0089

The manufacturer no longer makes this part, and there's no substitute part
