Model #KECS100SWH2 KitchenAid 30" electric cooktop

Here are the repair parts and diagrams for your KitchenAid KECS100SWH2 30" electric cooktop.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 32 parts

Cooktop Neon Indicator Light

#10

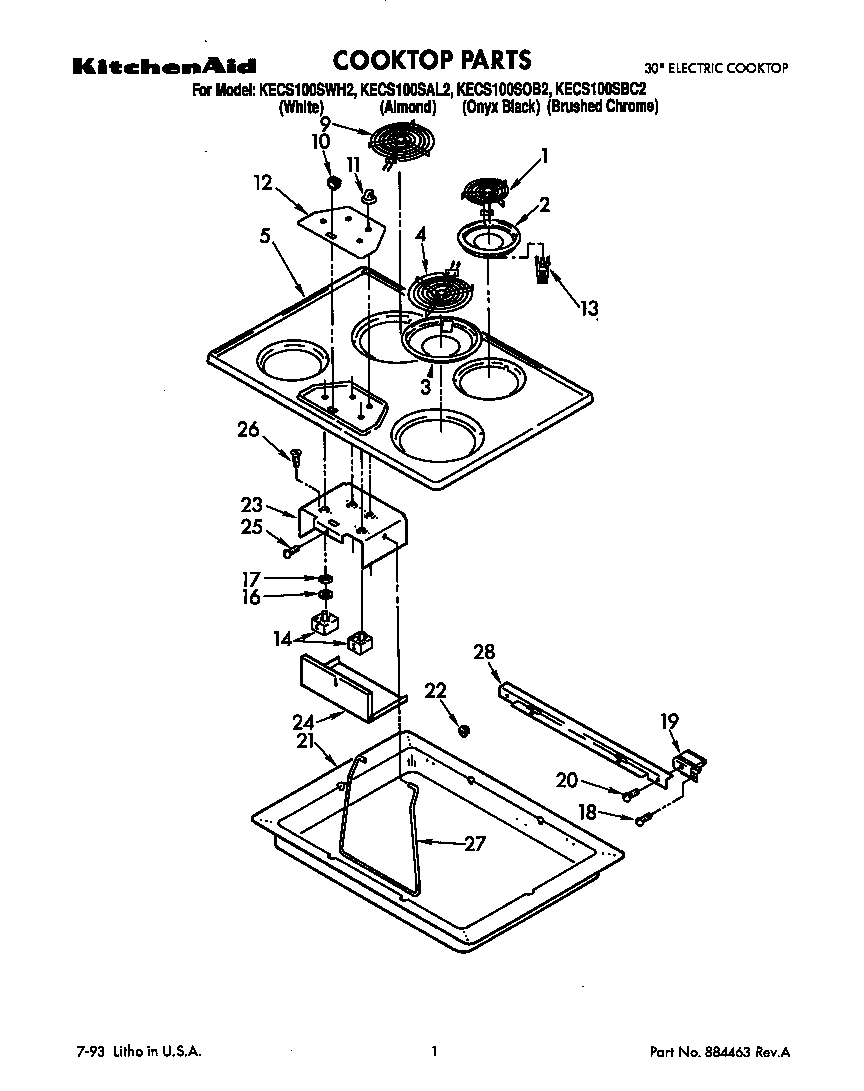

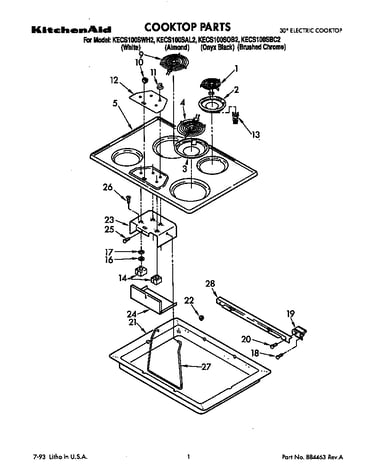

Replacement parts Diagram

Cooktop neon indicator light

Part #4164351
This item is not returnable
$6.93
12% OFFMSRP:$7.89

In Stock

Range Surface Element

#4

Replacement parts Diagram

Range surface element

Part #326789
?
Manufacturer substitution
This part replaces 3177567. Substitute parts can look different from the original.
This part replaces 3177567
$62.98

In Stock

Nut

#17

Replacement parts Diagram

Nut

Part #4159114

The manufacturer no longer makes this part, and there's no substitute part

Range Drip Pan

#2

Replacement parts Diagram

Range drip pan

Part #W10196406RW
?
Manufacturer substitution
This part replaces 4164315. Substitute parts can look different from the original.
This part replaces 4164315
$7.93

Back Order

Range Drip Pan

#3

Replacement parts Diagram

Range drip pan

Part #W10196405RW
?
Manufacturer substitution
This part replaces 4164314. Substitute parts can look different from the original.
This part replaces 4164314
This item is not returnable
$7.32
10% OFFMSRP:$8.10

In Stock

Range Surface Element Receptacle

#13

Replacement parts Diagram

Range surface element receptacle

Part #330031
?
Manufacturer substitution
This part replaces 4164317. Substitute parts can look different from the original.
This part replaces 4164317
This item is not returnable
$6.21

In Stock

Screw

#26

Replacement parts Diagram

Screw

Part #4159431
?
Manufacturer substitution
This part replaces 4159431. Substitute parts can look different from the original.
This part replaces 4159431
This item is not returnable
$2.16

In Stock

Cooktop Element

#9

Replacement parts Diagram

Cooktop element

Part #WP3177565
?
Manufacturer substitution
This part replaces 3177565. Substitute parts can look different from the original.
This part replaces 3177565
$64.31
12% OFFMSRP:$73.00

In Stock

Cooktop Element

#1

Replacement parts Diagram

Cooktop element

Part #WP3191455
?
Manufacturer substitution
This part replaces 3177638. Substitute parts can look different from the original.
This part replaces 3177638
$47.87
20% OFFMSRP:$60.00

In Stock

Burner Box

#21

Replacement parts Diagram

Burner box

Part #3178714

The manufacturer no longer makes this part, and there's no substitute part
