Model # 58055081 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58055081 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 177 parts |

#72

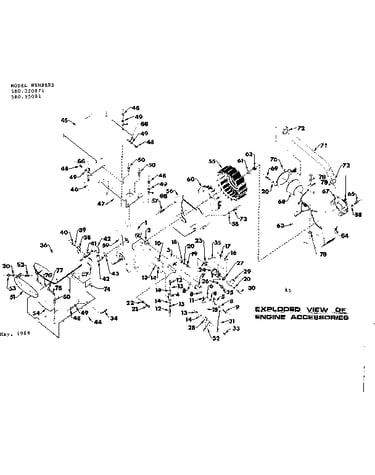

Engine accessories diagram

Hose clamp

Part #27671

The manufacturer no longer makes this part, and there's no substitute part

Clamp

Part #27742

The manufacturer no longer makes this part, and there's no substitute part

Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

#13

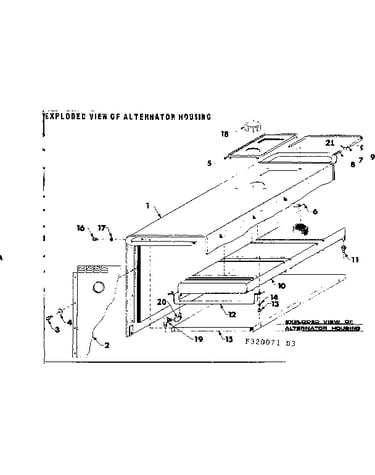

Alternator housing diagram

Metal screw

Part #22239

The manufacturer no longer makes this part, and there's no substitute part

#35

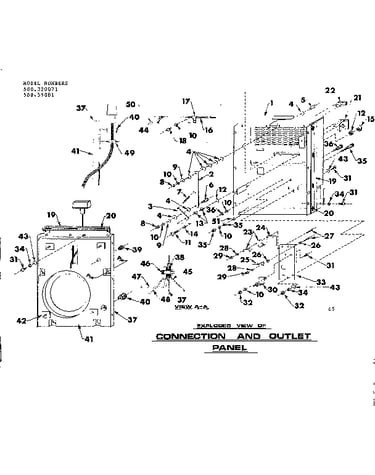

Connection and outlet panel diagram

Binding post

Part #25367

Replaced by #25367GS

$31.71

In Stock

Qty

#10

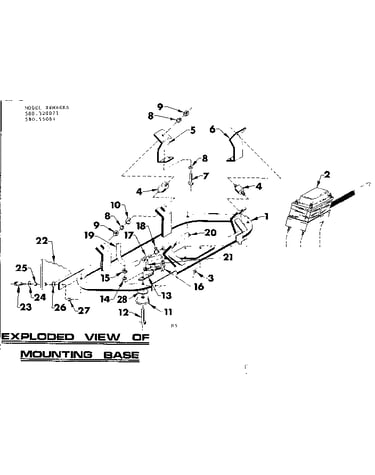

Mounting base diagram

Washer

Part #22145

The manufacturer no longer makes this part, and there's no substitute part

#27

Mounting base diagram

Stop nut

Part #27529

The manufacturer no longer makes this part, and there's no substitute part

Washer

Part #22131

The manufacturer no longer makes this part, and there's no substitute part

#19

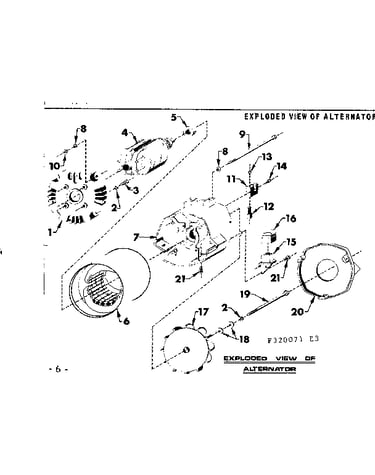

Stator assembly diagram

Screw

Part #24419

Replaced by #24419GS

$24.27

In Stock

Qty

#73

Engine accessories diagram

Cap screw

Part #22287

The manufacturer no longer makes this part, and there's no substitute part
