Craftsman
Power Screwdriver

Model # 315271450 Official Craftsman electric screwdriver

Here are the diagrams and repair parts for Official Craftsman 315271450 electric screwdriver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Retaining Ring 622167-069
#12

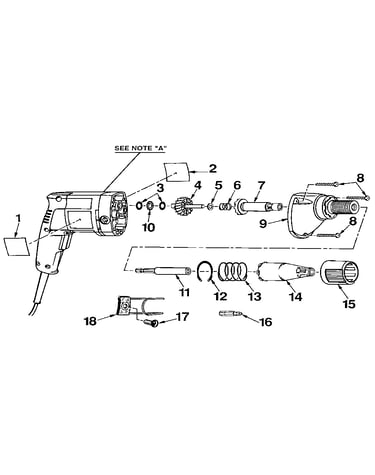

Unit parts diagram

Retaining ring

Part #622167-069

The manufacturer no longer makes this part, and there's no substitute part

Switch 968682-003
#16

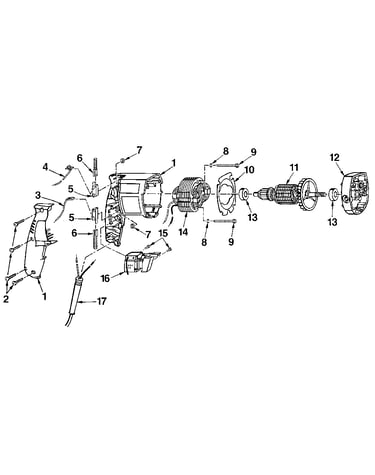

Field and armature assembly diagram

Switch

Part #968682-003

The manufacturer no longer makes this part, and there's no substitute part

Screw 968775-001
#15

Field and armature assembly diagram

Screw

Part #968775-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 971143-001
#10

Unit parts diagram

Bearing

Part #971143-001

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 622170-003
#8

Field and armature assembly diagram

Lock washer

Part #622170-003

The manufacturer no longer makes this part, and there's no substitute part

Spring 969316-001
#6

Unit parts diagram

Spring

Part #969316-001

The manufacturer no longer makes this part, and there's no substitute part

Armature 970658-002
#11

Field and armature assembly diagram

Armature

Part #970658-002

The manufacturer no longer makes this part, and there's no substitute part

Lock Sleeve 969296-002
#15

Unit parts diagram

Lock sleeve

Part #969296-002

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 970148-000
#1

Field and armature assembly diagram

Housing assembly

Part #970148-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-815
#5

Unit parts diagram

Washer

Part #706382-815

The manufacturer no longer makes this part, and there's no substitute part
