Kenmore
Central Air Conditioner

Model #1067781291 Kenmore air conditioner

Here are the diagrams and repair parts for Kenmore 1067781291 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 211 parts

    Bracket Support

    #39

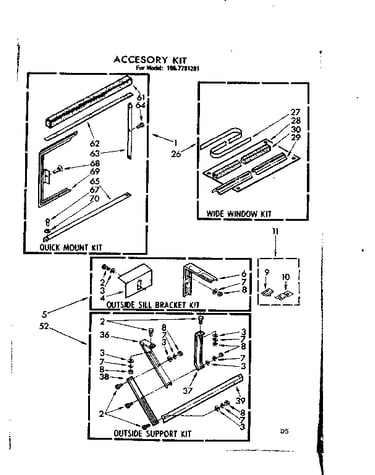

    Accessory kit parts Diagram

    Bracket support

    Part #644281
    $42.20

    In Stock

    Capacitor

    #24B

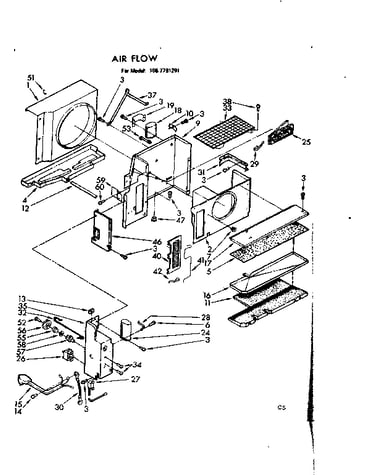

    Air flow parts Diagram

    Capacitor

    Part #648555

    The manufacturer no longer makes this part, and there's no substitute part

    Crimp Terminal Connector

    #38

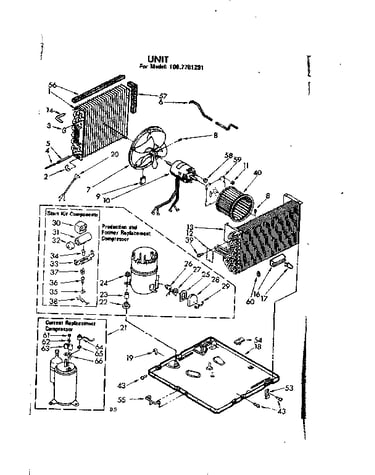

    Unit parts Diagram

    Crimp terminal connector

    Part #STD374251
    ?
    Manufacturer substitution
    This part replaces 45571. Substitute parts can look different from the original.
    This part replaces 45571
    This item is not returnable
    $2.49

    In Stock

    Dishwasher Screw

    #36

    Unit parts Diagram

    Dishwasher screw

    Part #WP965173
    ?
    Manufacturer substitution
    This part replaces 487869. Substitute parts can look different from the original.
    This part replaces 487869
    This item is not returnable
    $5.48

    In Stock

    Thread-Forming Screw, 8-pack

    #52

    Air flow parts Diagram

    Thread-forming screw, 8-pack

    Part #STD610805
    ?
    Manufacturer substitution
    This part replaces 487923. Substitute parts can look different from the original.
    This part replaces 487923
    This item is not returnable
    $2.79

    In Stock

    Room Air Conditioner Foam Seal

    #10

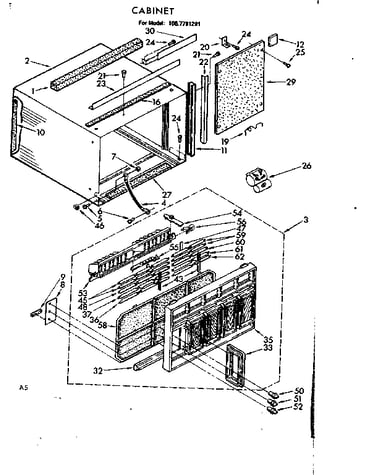

    Cabinet parts Diagram

    Room air conditioner foam seal

    Part #WP854334
    ?
    Manufacturer substitution
    This part replaces 858839. Substitute parts can look different from the original.
    This part replaces 858839
    $8.60

    In Stock

    Compressor

    #21

    Unit parts Diagram

    Compressor

    Part #4318281
    ?
    Manufacturer substitution
    This part replaces 876646. Substitute parts can look different from the original.
    This part replaces 876646
    $330.60

    In Stock

    Bend

    #3

    Unit parts Diagram

    Bend

    Part #WP855199
    ?
    Manufacturer substitution
    This part replaces 855199. Substitute parts can look different from the original.
    This part replaces 855199
    This item is not returnable
    $3.29

    In Stock

    Wire

    #4

    Cabinet parts Diagram

    Wire

    Part #857078
    ?
    Manufacturer substitution
    This part replaces 857017. Substitute parts can look different from the original.
    This part replaces 857017
    $9.12

    In Stock

    Nut

    #58

    Unit parts Diagram

    Nut

    Part #488130

    The manufacturer no longer makes this part, and there's no substitute part
