Model # WMH53521HB0 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool WMH53521HB0 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

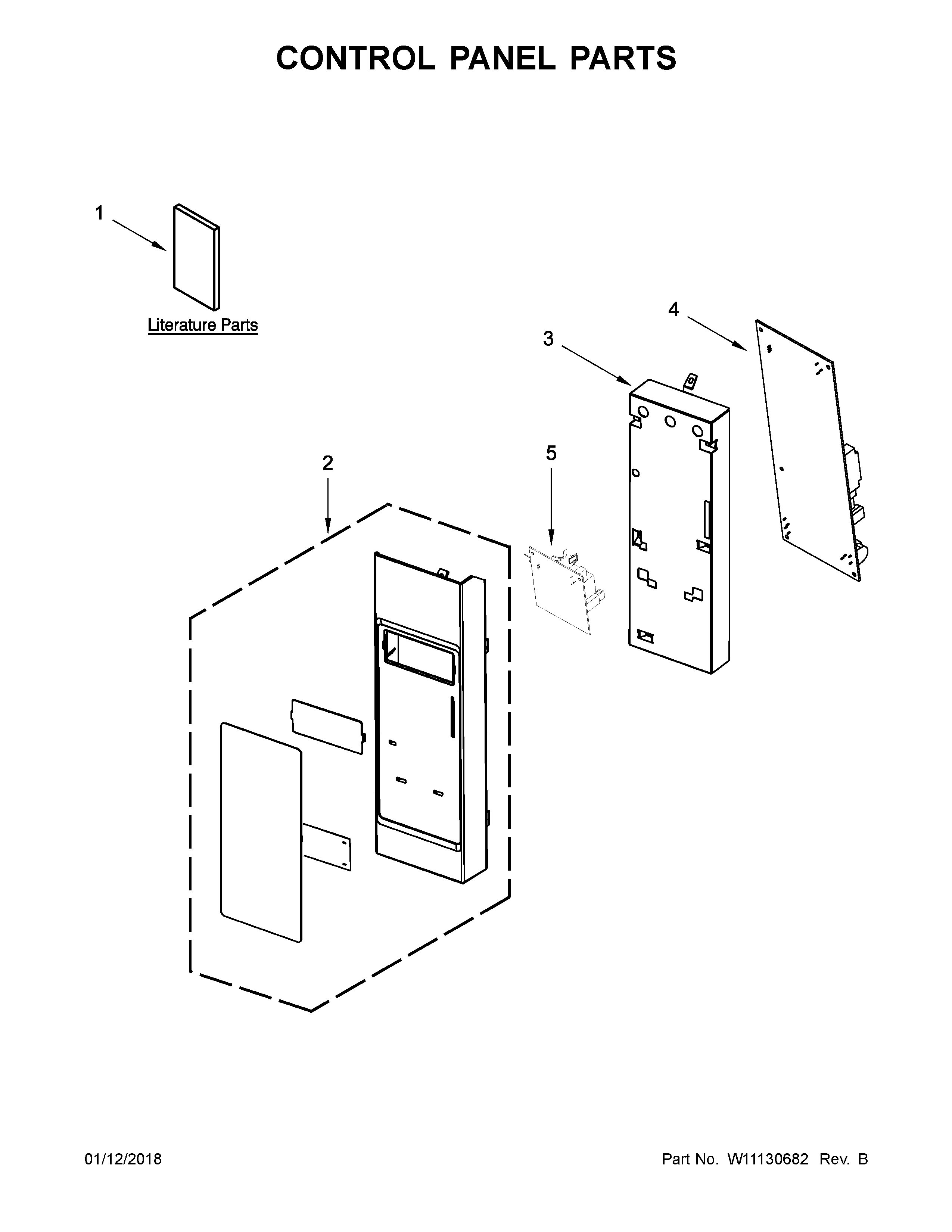

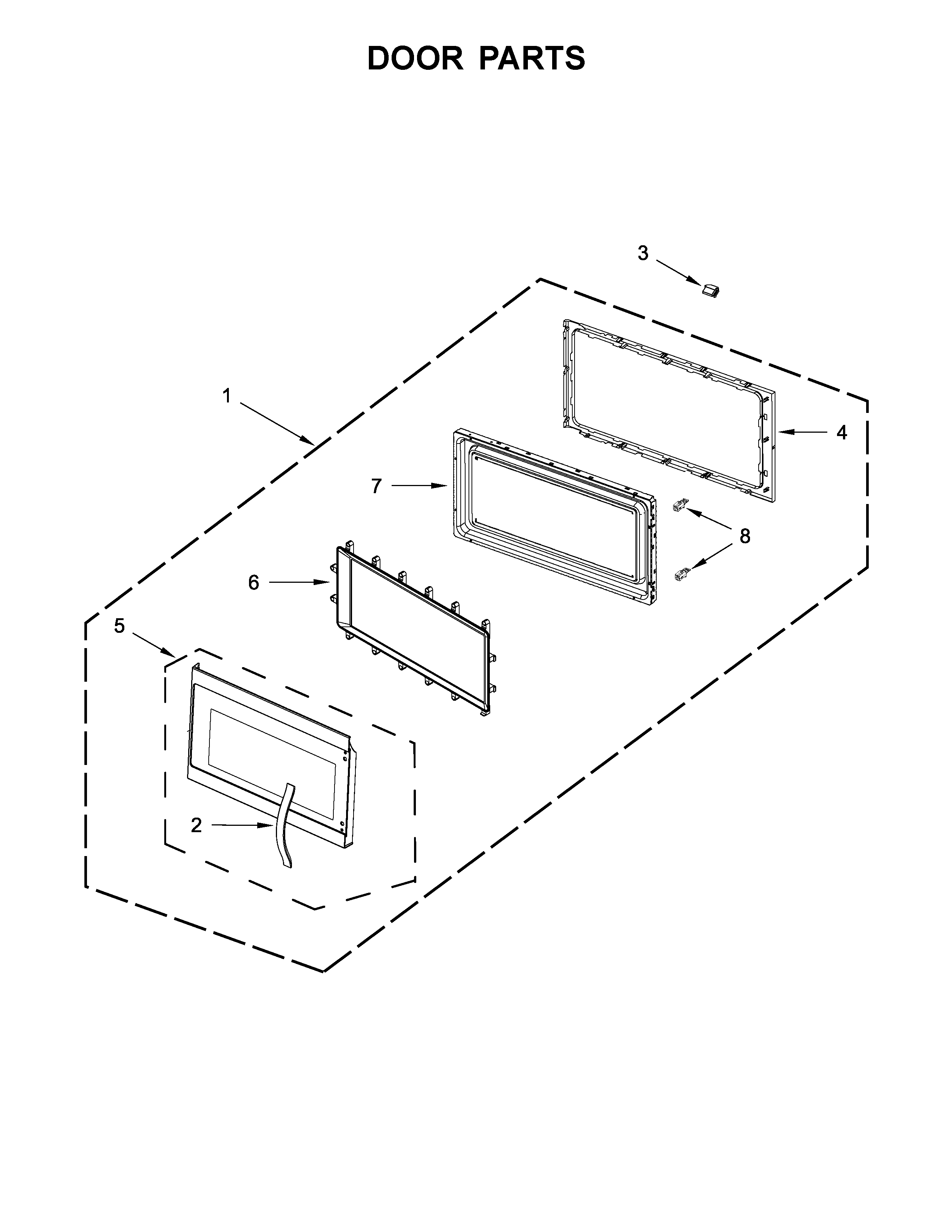

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Diode W10575765
#13

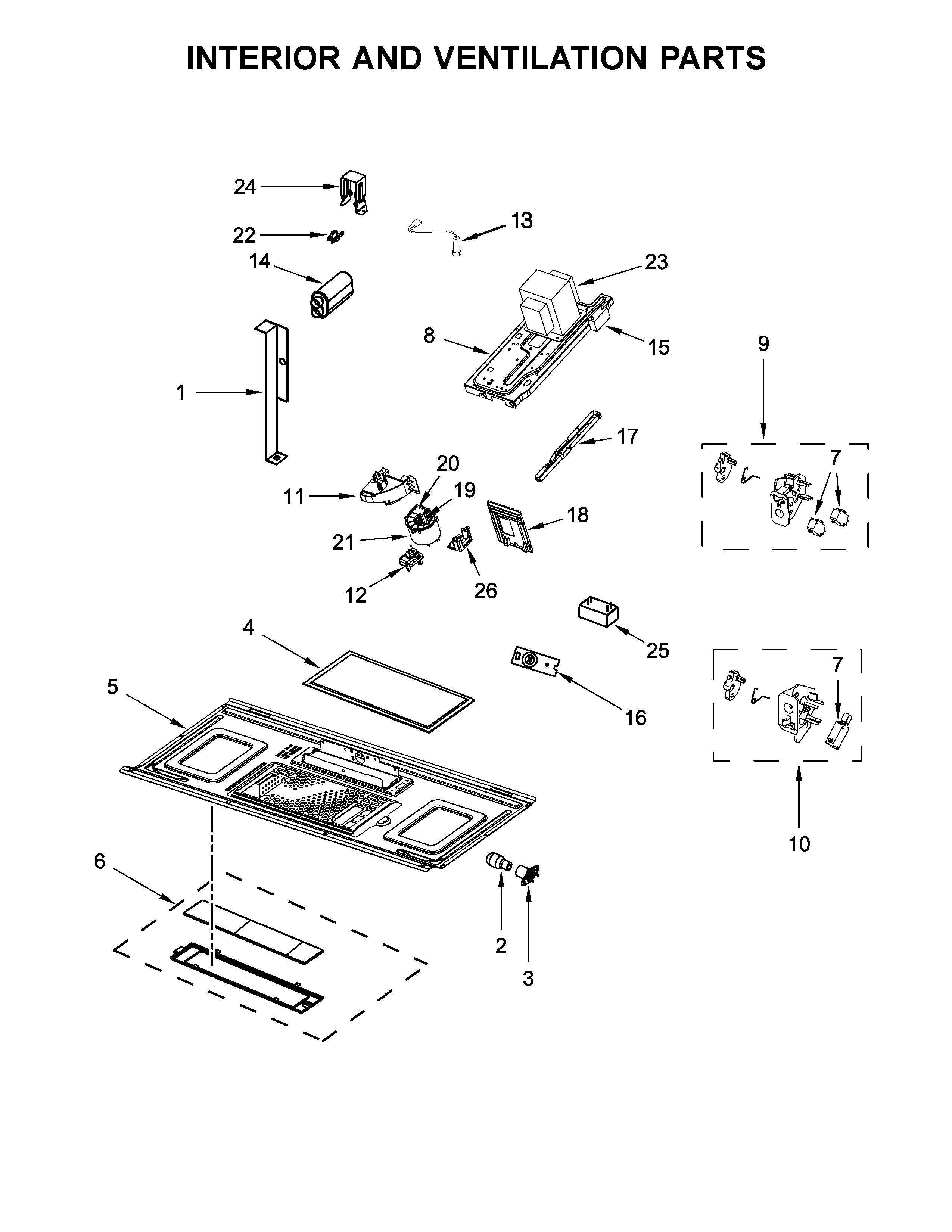

Interior and ventilation parts diagram

Diode

Part #W10575765

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10575765. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
18% OFF MSRP : $30.00
In Stock
Capacitor W10343300
#14

Interior and ventilation parts diagram

Capacitor

Part #W10343300

Replaced by #W10850446

?
Manufacturer substitution
This part replaces W10343300. Substitute parts can look different from the original.
BEST SELLER
$94.83 |
32% OFF MSRP : $140.00
In Stock
Microwave Waveguide Cover W10533497
#1

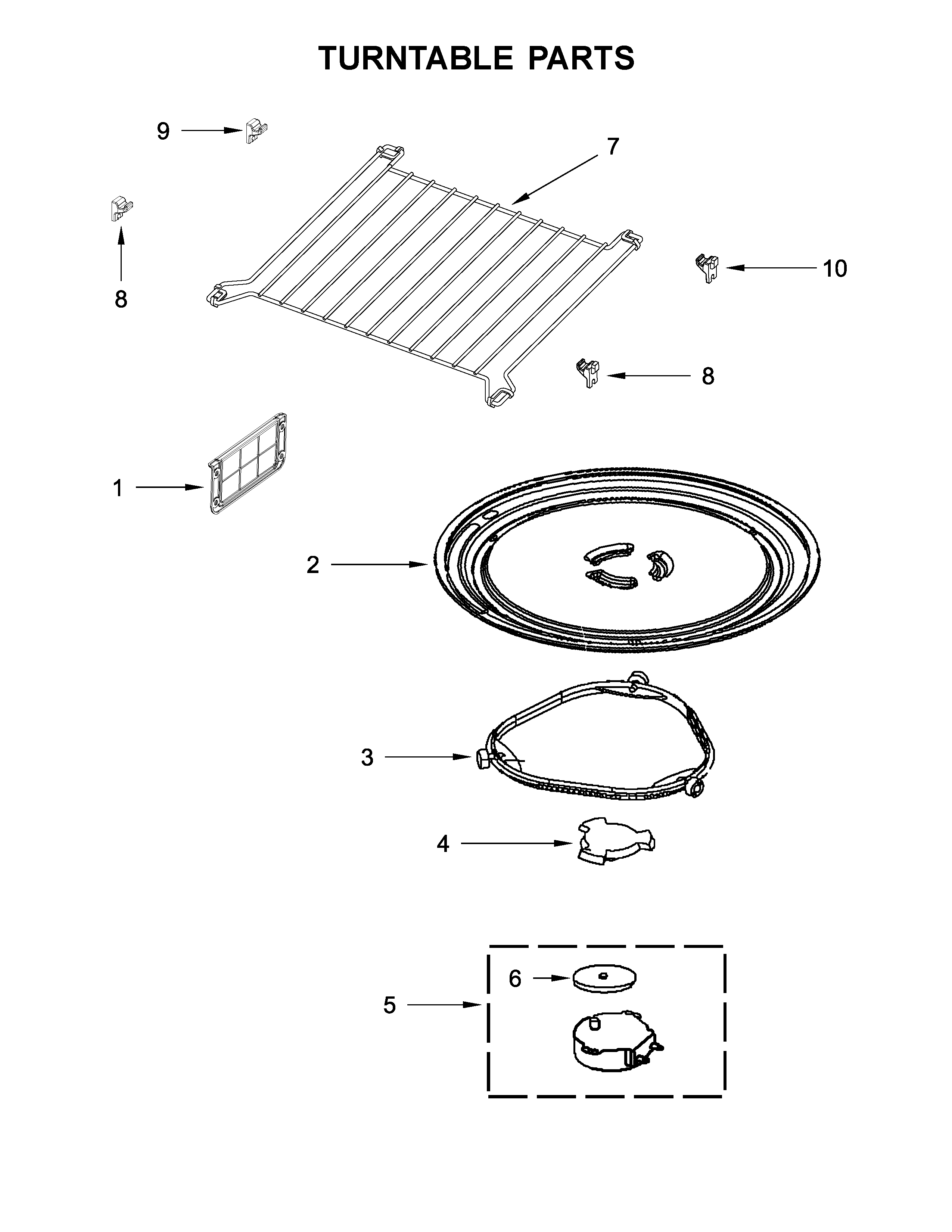

Turntable parts diagram

Microwave waveguide cover

Part #W10533497

BEST SELLER
This item is not returnable
$16.25 |
11% OFF Phone Price : $18.25
In Stock
Microwave Light Socket W10210871
#3

Interior and ventilation parts diagram

Microwave light socket

Part #W10210871

BEST SELLER
This item is not returnable
$6.49 |
62% OFF MSRP : $17.00
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$35.32 |
12% OFF Phone Price : $40.32
In Stock
Microwave Mounting Plate (replaces W10440498) W11025649
#1

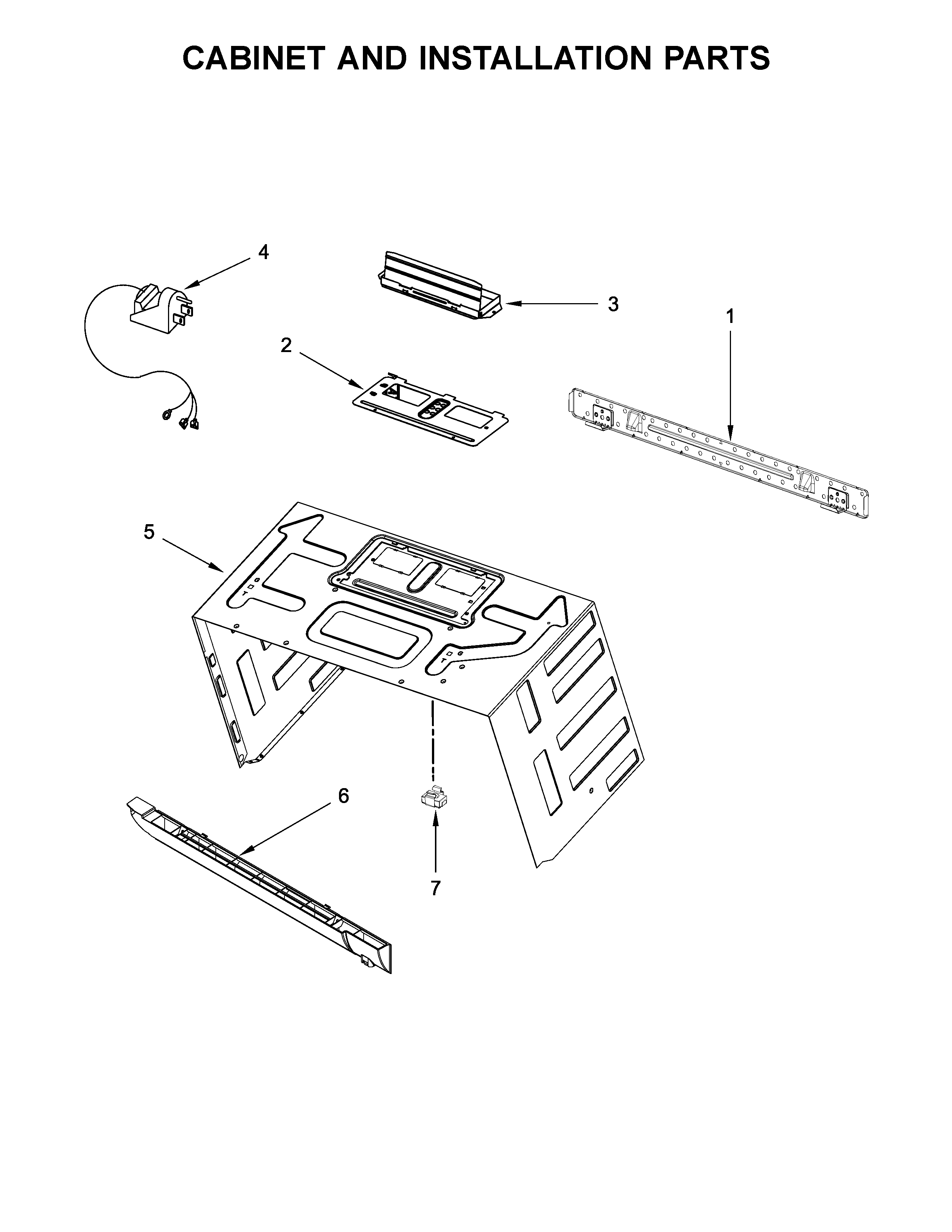

Cabinet and installation parts diagram

Microwave mounting plate (replaces w10440498)

Part #W11025649

BEST SELLER
$12.77 |
14% OFF Phone Price : $14.77
In Stock
Magnetron W10754514
#15

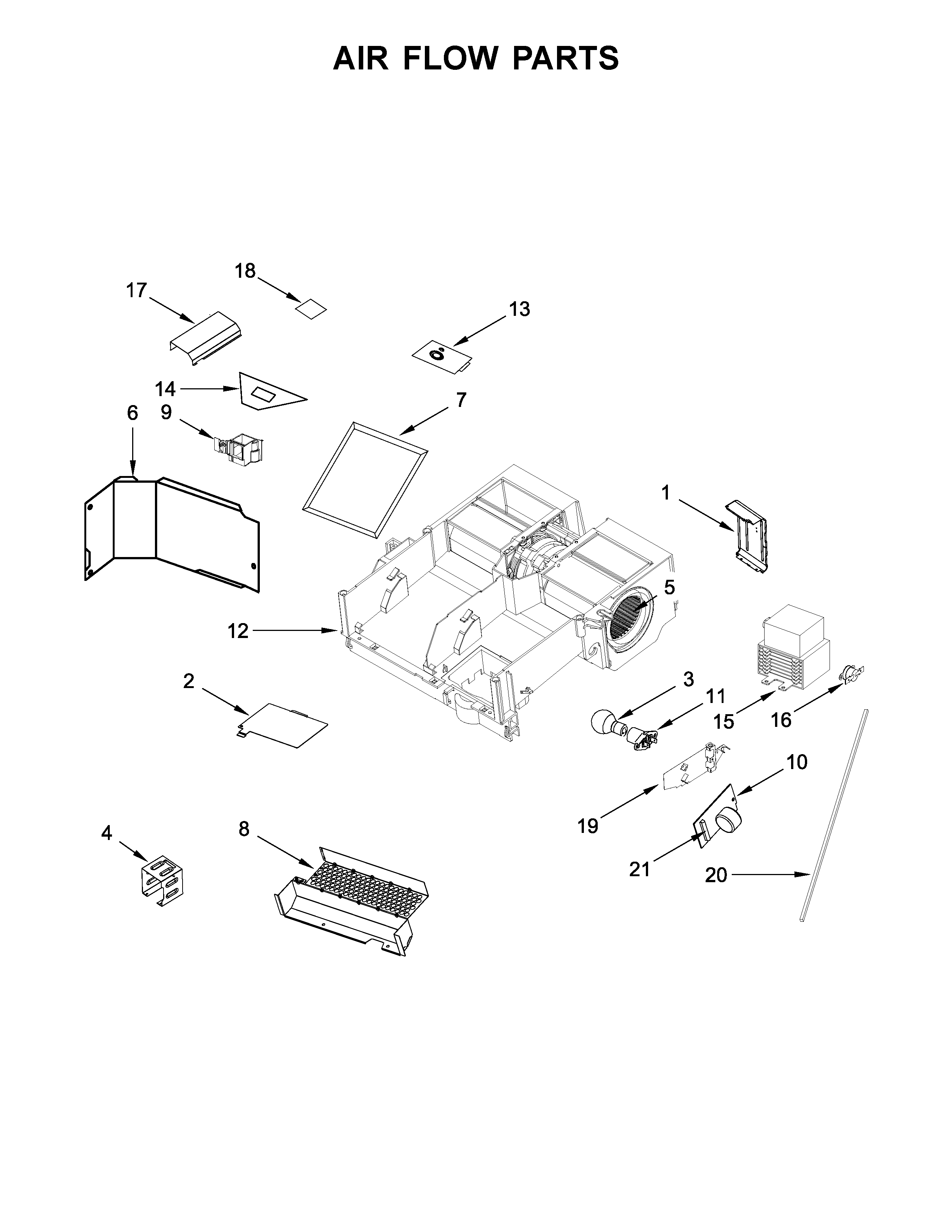

Air flow parts diagram

Magnetron

Part #W10754514

The manufacturer no longer makes this part, and there's no substitute part

Microwave Installation Template W10190018
#NI

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Microwave Screw 8169704
#NI

Cabinet and installation parts diagram

Microwave screw

Part #8169704

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 8169704. Substitute parts can look different from the original.
This item is not returnable
$4.99 |
17% OFF Phone Price : $5.99
In Stock
Microwave Vent Damper W10748710
#3

Cabinet and installation parts diagram

Microwave vent damper

Part #W10748710

Replaced by #W10843943

?
Manufacturer substitution
This part replaces W10748710. Substitute parts can look different from the original.
$59.02 |
8% OFF Phone Price : $64.02
