Frigidaire
Room Air Conditioner

Model # A05LH5F2 Official Frigidaire room air conditioner - lf34088200

Here are the diagrams and repair parts for Official Frigidaire A05LH5F2 room air conditioner - lf34088200, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

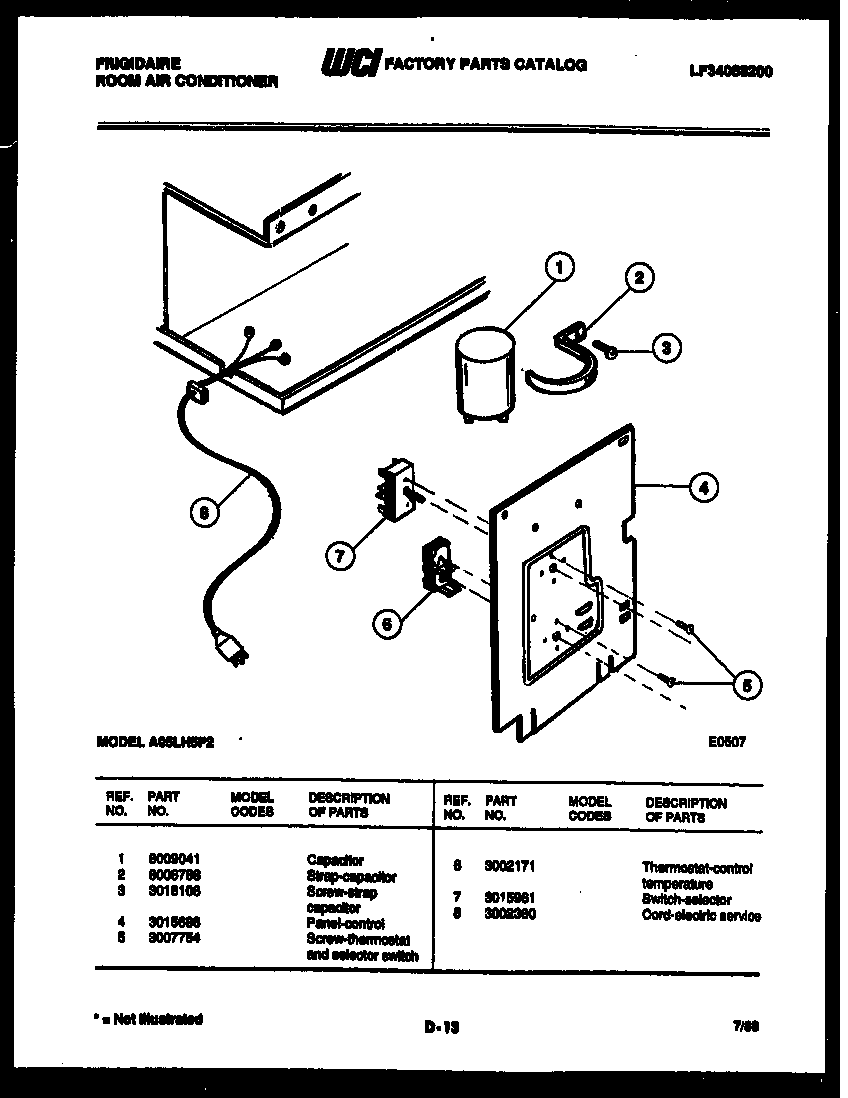

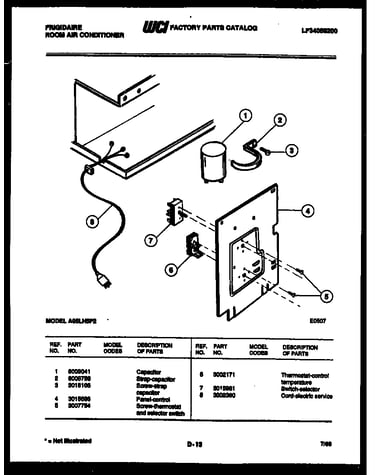

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Door 3012455
#13

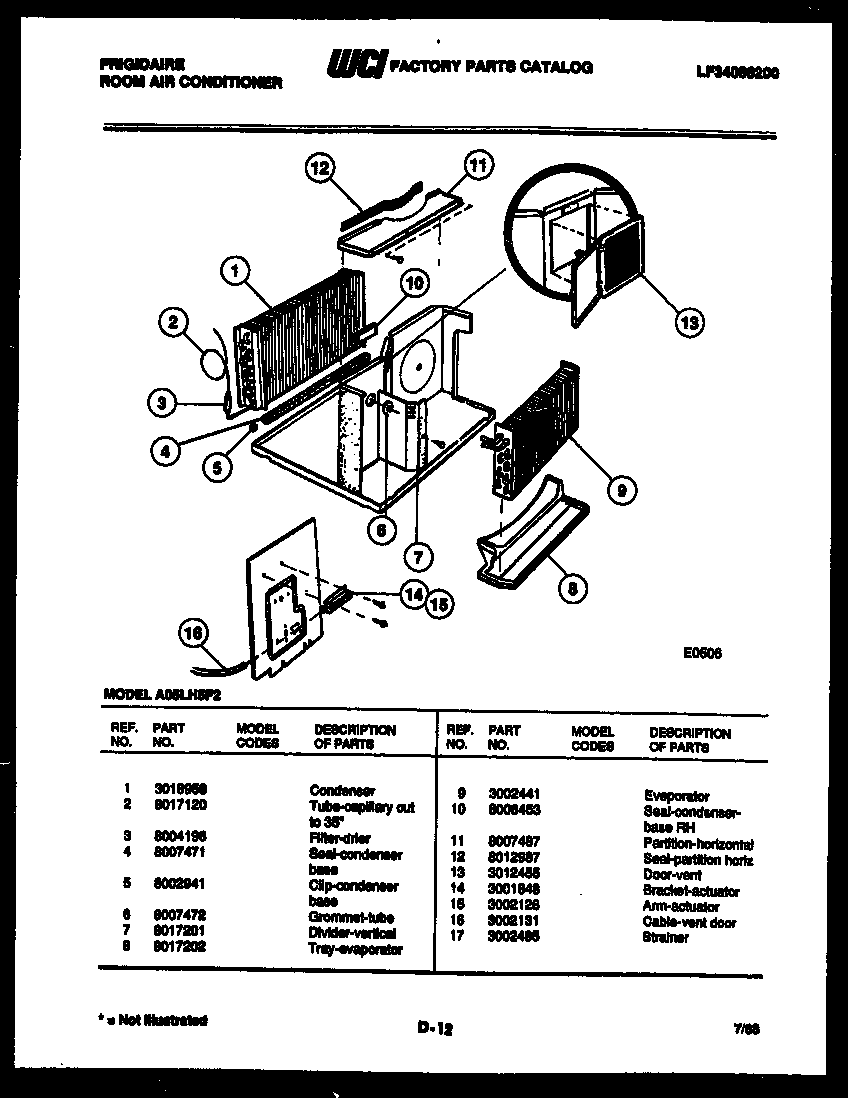

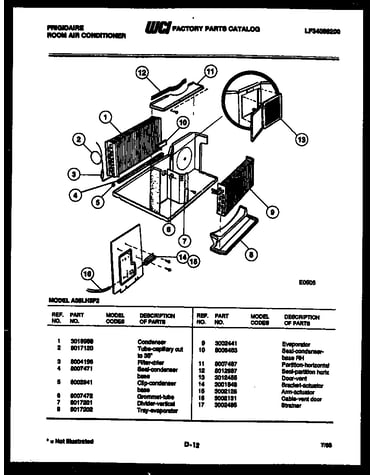

Unit parts diagram

Door

Part #3012455

Replaced by #5303012455

?
Manufacturer substitution
This part replaces 3012455. Substitute parts can look different from the original.
This item is not returnable
In Stock
Strainer 3002485
#17

Unit parts diagram

Strainer

Part #3002485

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3002485. Substitute parts can look different from the original.
In Stock
Frame 8016179
#1

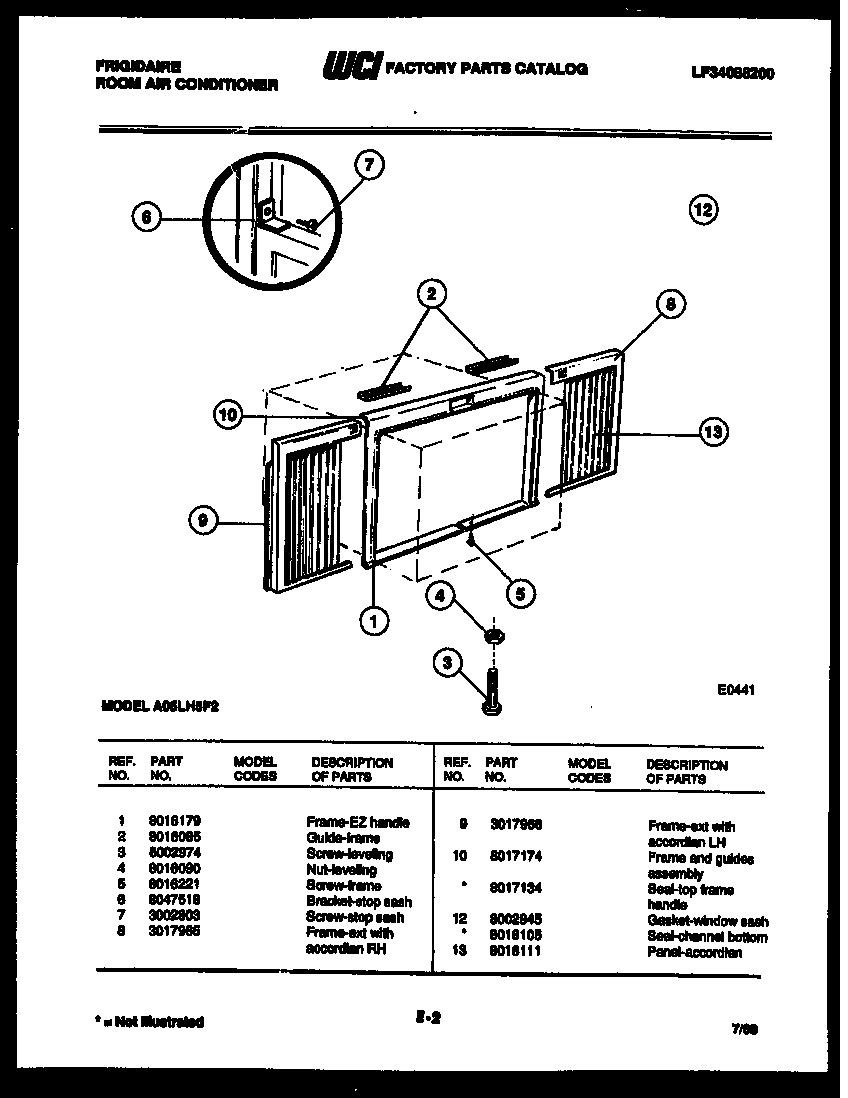

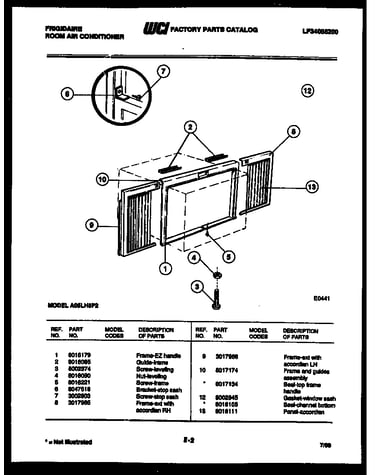

Window mounting parts diagram

Frame

Part #8016179

The manufacturer no longer makes this part, and there's no substitute part

Seal 8007471
#4

Unit parts diagram

Seal

Part #8007471

The manufacturer no longer makes this part, and there's no substitute part

Divider, Vert. 8017201
#7

Unit parts diagram

Divider, vert.

Part #8017201

The manufacturer no longer makes this part, and there's no substitute part

Grommet 3015945
#2

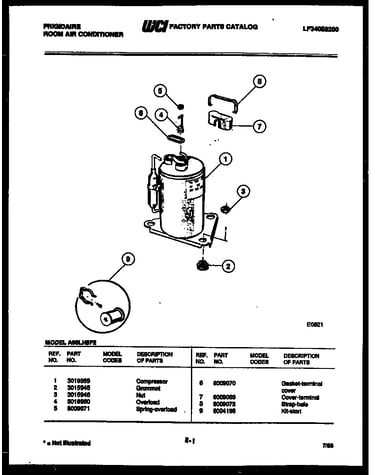

Compressor parts diagram

Grommet

Part #3015945

The manufacturer no longer makes this part, and there's no substitute part

Seal 3002573
#4

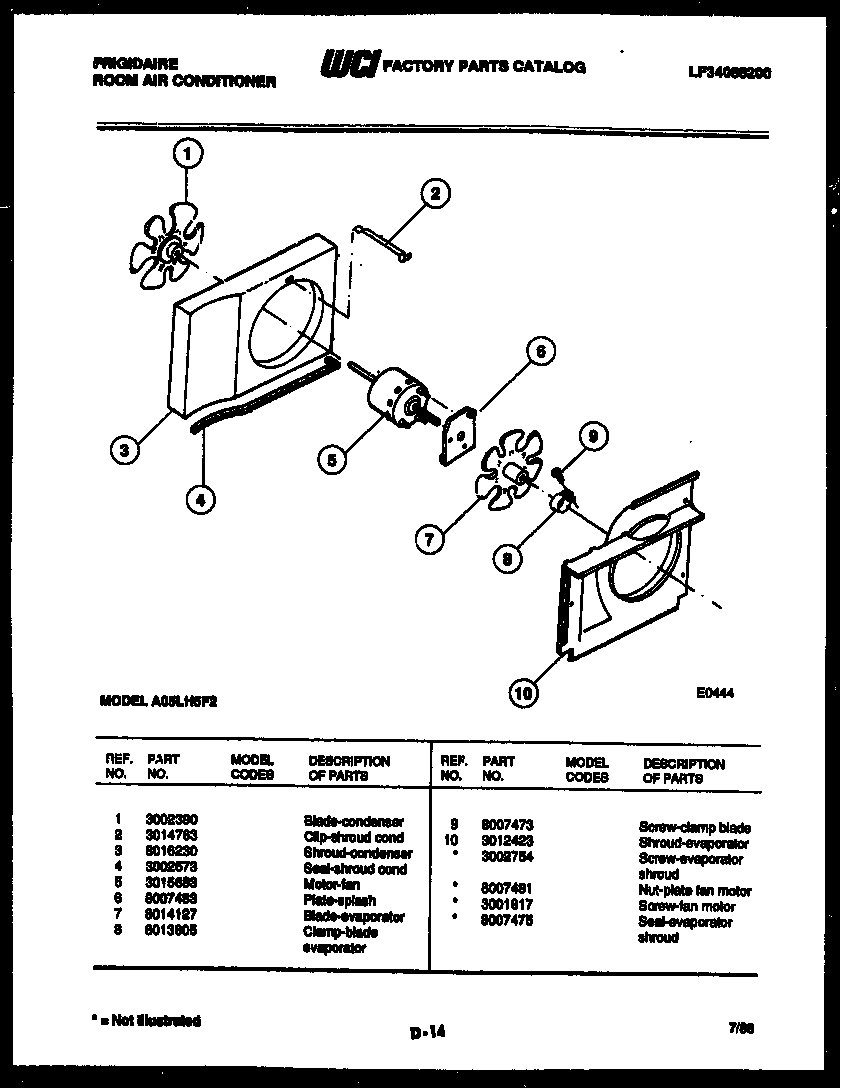

Air handling parts diagram

Seal

Part #3002573

The manufacturer no longer makes this part, and there's no substitute part

Knob 3002189
#18

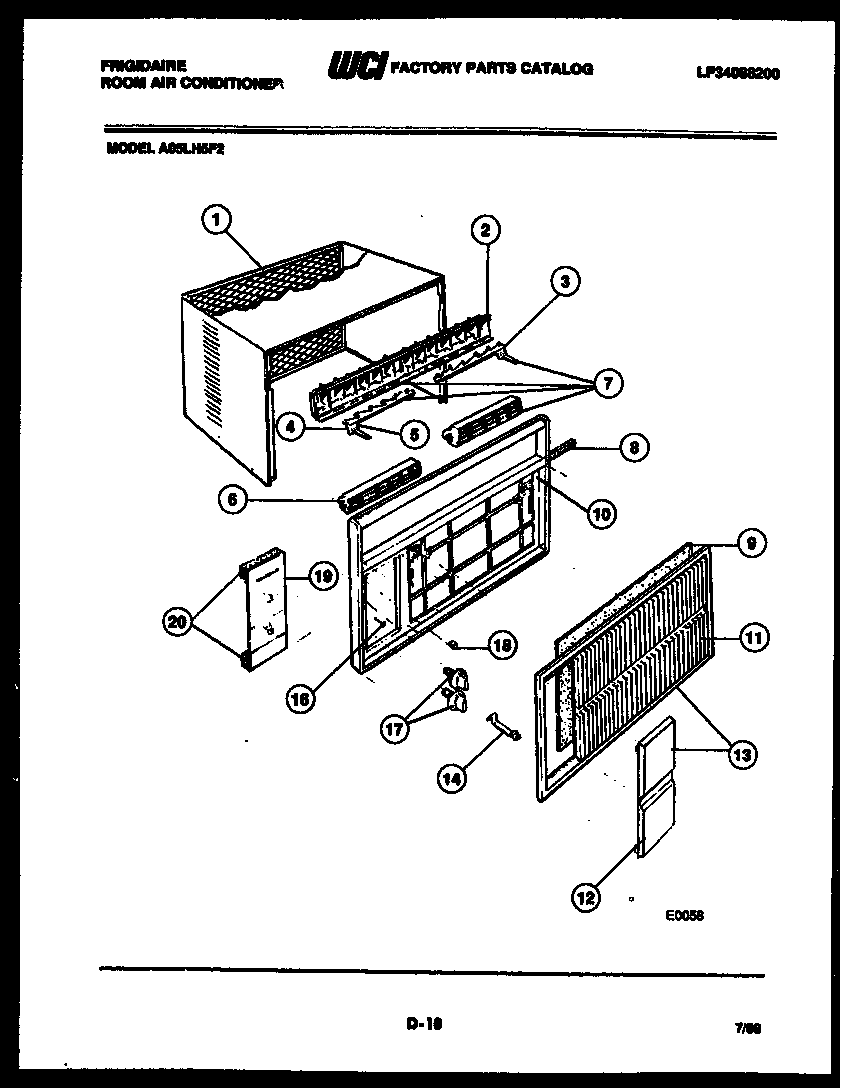

Cabinet parts diagram

Knob

Part #3002189

The manufacturer no longer makes this part, and there's no substitute part

Arm 3002126
#15

Unit parts diagram

Arm

Part #3002126

The manufacturer no longer makes this part, and there's no substitute part

Panel 3017965
#8

Window mounting parts diagram

Panel

Part #3017965

The manufacturer no longer makes this part, and there's no substitute part
