Model #153337513 Kenmore power miser 8 gas water heater

Here are the diagrams and repair parts for Kenmore 153337513 power miser 8 gas water heater, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 21 parts

Water Heater Temperature and Pressure Relief Valve

#1

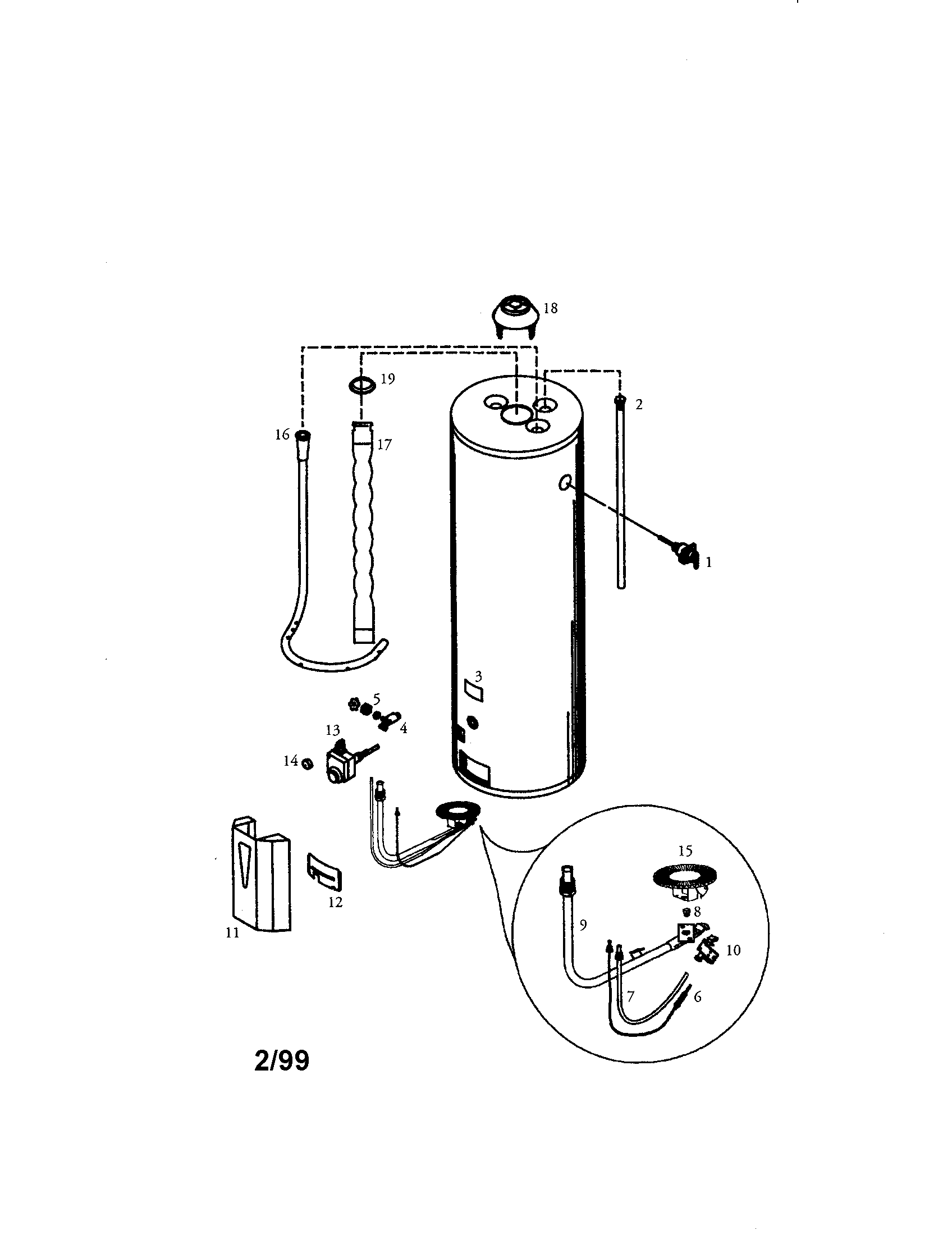

Power miser 30 gallon high altitude Diagram

$20.21

In Stock

Water Heater Pilot Tube Assembly

#7

Power miser 30 gallon high altitude Diagram

$13.71

In Stock

Water Heater Washer

#5

Power miser 30 gallon high altitude Diagram

Water heater washer

Part #9001584
$15.08

In Stock

Water Heater Manifold Inner Door

#12

Power miser 30 gallon high altitude Diagram

$13.63

In Stock

Water Heater Burner Tube

#9

Power miser 30 gallon high altitude Diagram

$23.56

In Stock

Ring

#19

Power miser 30 gallon high altitude Diagram

Ring

Part #9000275
$15.49

In Stock

Water Heater Drain Valve

#4

Power miser 30 gallon high altitude Diagram

$11.25

In Stock

Water Heater Dip Tube

#16

Power miser 30 gallon high altitude Diagram

Water heater dip tube

Part #9002059
?
Manufacturer substitution
This part replaces 9001698. Substitute parts can look different from the original.
This part replaces 9001698
$22.21

In Stock

Water Heater Burner

#15

Power miser 30 gallon high altitude Diagram

Water heater burner

Part #9003631005
?
Manufacturer substitution
This part replaces 9002411. Substitute parts can look different from the original.
This part replaces 9002411
$38.64

In Stock

Water Heater Cleaner

#NI

All parts Diagram

Water heater cleaner

Part #23600
?
Manufacturer substitution
This part replaces 23600. Substitute parts can look different from the original.
This part replaces 23600
$28.82

Back Order

Symptoms common to all water heaters

Choose a symptom to see related water heater repairs.

Main causes: water supply needs chlorine treatment, anode rod too reactive
Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating element
Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excessive tank sediment
Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failure, bad thermocouple
Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve assembly failure
Main causes: faulty pressure relief valve, water is overheating
Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element, cracked tank
