Maytag UMC1071AAW microwave

Maytag UMC1071AAW microwave Parts

Here are the diagrams and repair parts for Maytag UMC1071AAW microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for UMC1071AAW Microwaves

  • Switch- Mi for Maytag UMC1071AAW - Part WP3405-001034

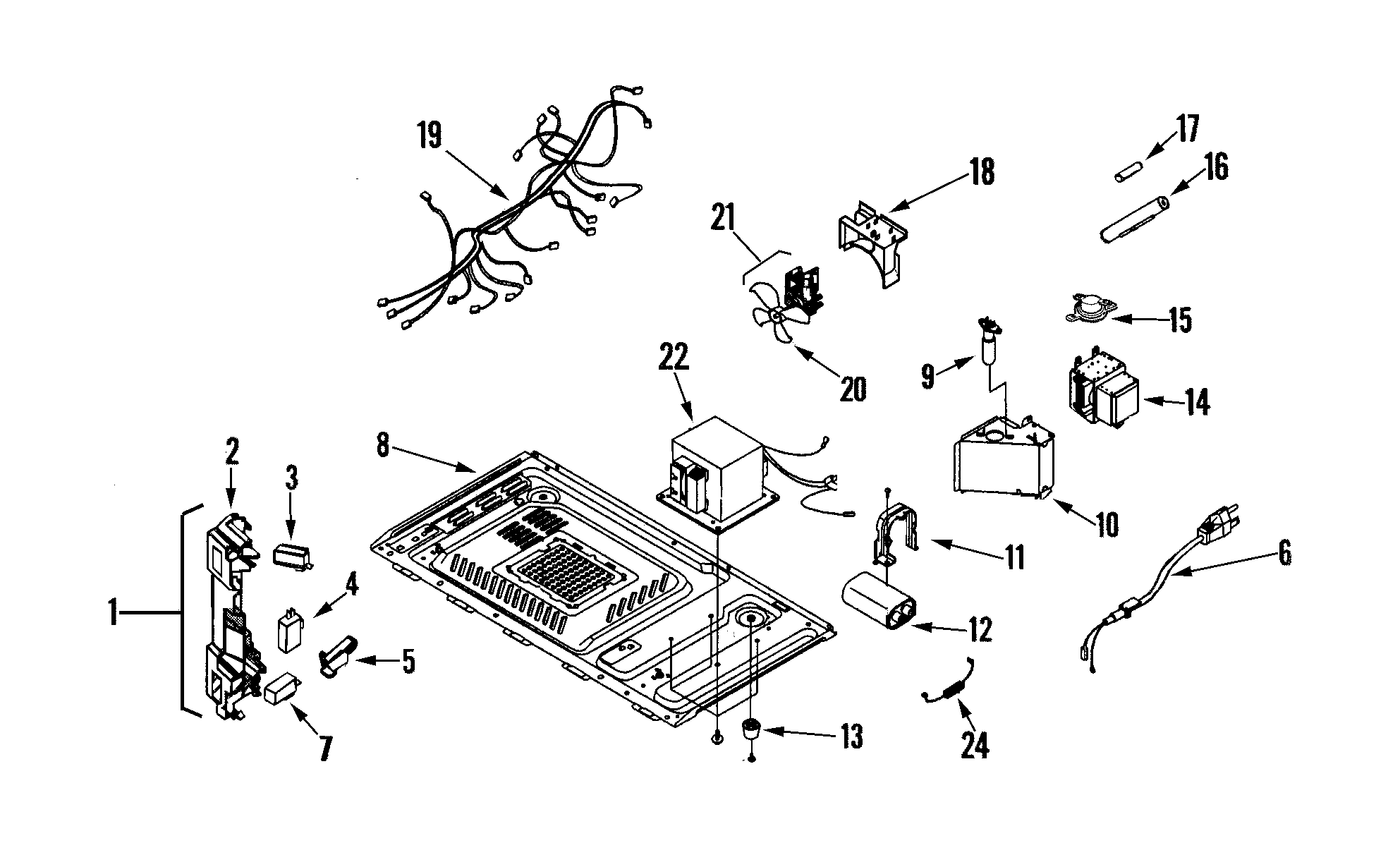

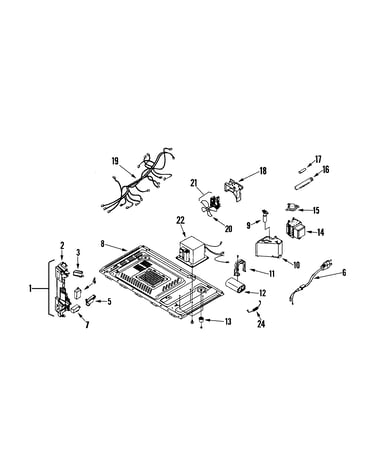

    Internal controls/latch asy./base diagram

    Switch

    Part #3405-001042

    Replaced by #WP3405-001034

    Info Icon
    Manufacturer substitution
    This part replaces 3405-001042. Substitute parts can look different from the original.
    In Stock
    $64.92
    Minus Item
    Qty
    Plus Item
  • Lower Hinge for Maytag UMC1071AAW - Part DE61-00146A

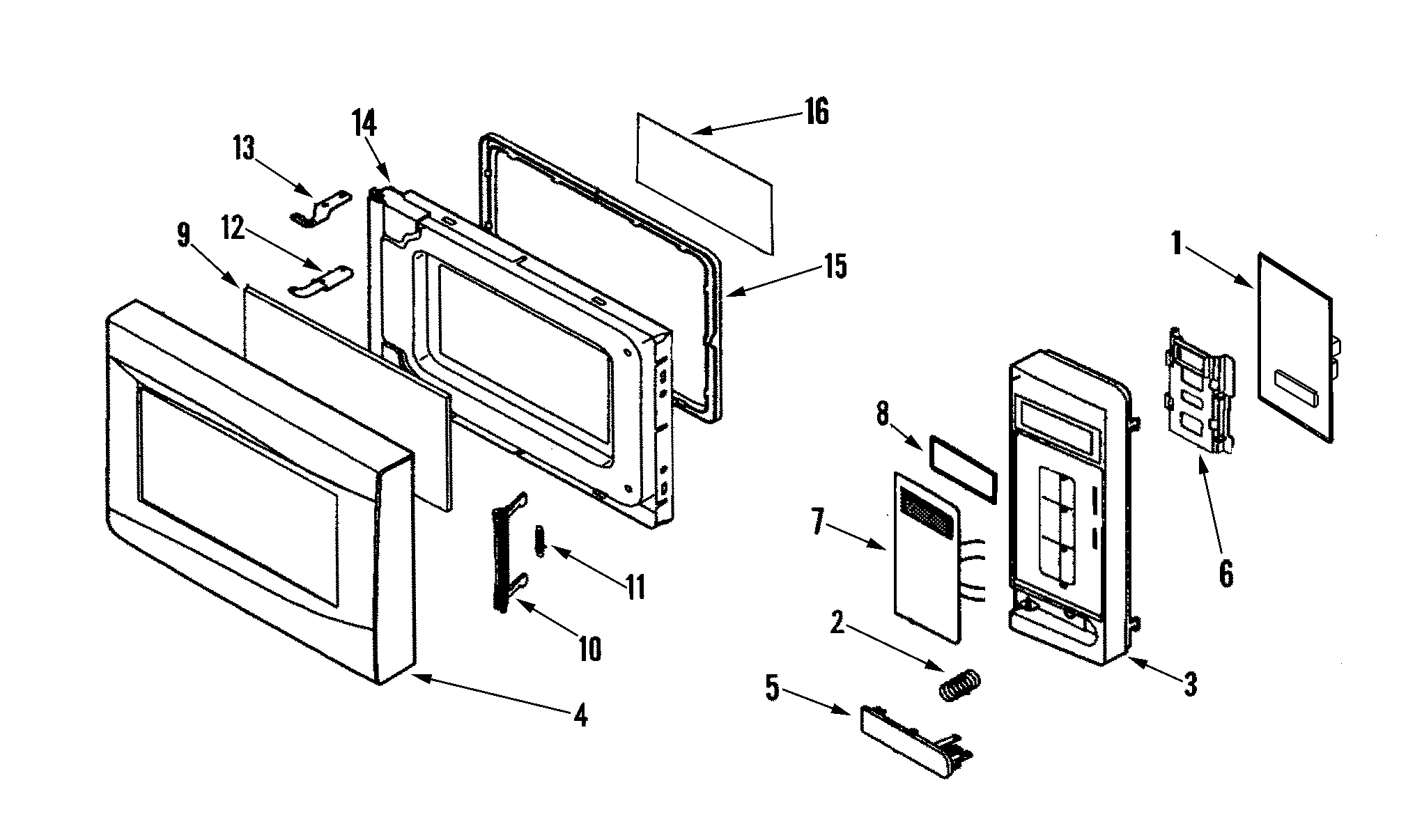

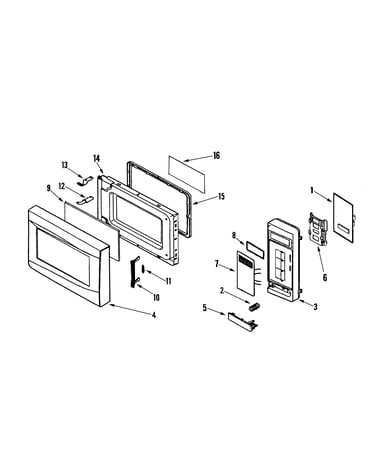

    Control panel/door assembly diagram

    Lower Hinge

    Part #DE61-00146A
    In Stock
    $27.79
    Minus Item
    Qty
    Plus Item
  • Complete Door for Maytag UMC1071AAW - Part DE64-40008B

    Control panel/door assembly diagram

    Complete Door

    Part #DE64-40008B
    In Stock
    $45.47
    Minus Item
    Qty
    Plus Item
  • Latch for Maytag UMC1071AAW - Part DE96-00115A

    Internal controls/latch asy./base diagram

    Latch

    Part #DE96-00115A
    In Stock
    $62.47
    Minus Item
    Qty
    Plus Item
  • Hinge-uppe for Maytag UMC1071AAW - Part DE61-00145A

    Control panel/door assembly diagram

    Hinge-uppe

    Part #DE61-00145A
    In Stock
    $27.79
    Minus Item
    Qty
    Plus Item
  • Microwave Glass Turntable Tray for Maytag UMC1071AAW - Part DE74-00027A

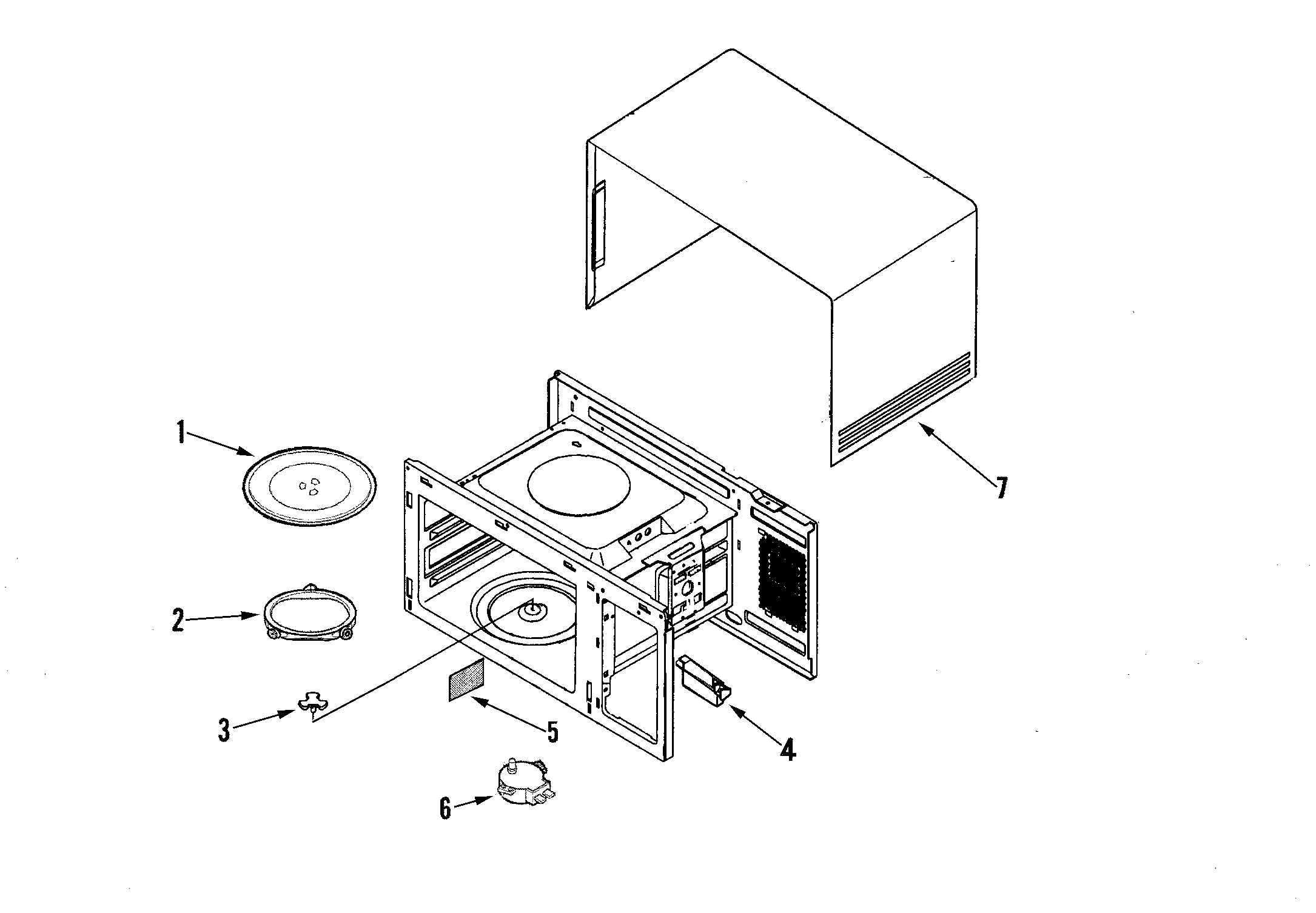

    Body/cavity diagram

    Microwave Glass Turntable Tray

    Part #DE74-00027A
    In Stock
    $49.80
    11% OFF Phone Price : $55.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Thermostat for Maytag UMC1071AAW - Part DE47-20173A

    Internal controls/latch asy./base diagram

    Thermostat

    Part #DE47-20173A

    Replaced by #DE47-20173A

    Info Icon
    Manufacturer substitution
    This part replaces DE47-20173A. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $23.09
    21% OFF Phone Price : $29.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Switch; Micr for Maytag UMC1071AAW - Part WP3405-001034

    Internal controls/latch asy./base diagram

    Micro-switch

    Part #3405-001034

    Replaced by #WP3405-001034

    Info Icon
    Manufacturer substitution
    This part replaces 3405-001034. Substitute parts can look different from the original.
    In Stock
    $112.84
    Minus Item
    Qty
    Plus Item
  • Fuse 15a 250 for Maytag UMC1071AAW - Part WPY01050009

    Internal controls/latch asy./base diagram

    Fuse 15a 2

    Part #3601-001197

    Replaced by #WPY01050009

    Info Icon
    Manufacturer substitution
    This part replaces 3601-001197. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.35
    12% OFF Phone Price : $8.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Spring for Maytag UMC1071AAW - Part DE61-70076A

    Control panel/door assembly diagram

    Spring

    Part #DE61-70076A

    Replaced by #DE61-70076A

    Info Icon
    Manufacturer substitution
    This part replaces DE61-70076A. Substitute parts can look different from the original.
    In Stock
    $43.11
    Minus Item
    Qty
    Plus Item
