Model # 134402-0113-01 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 134402-0113-01 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

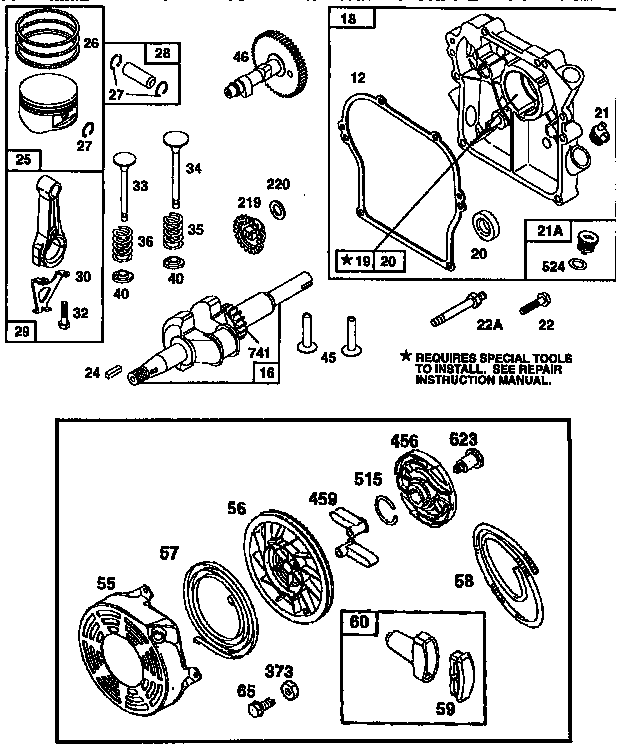

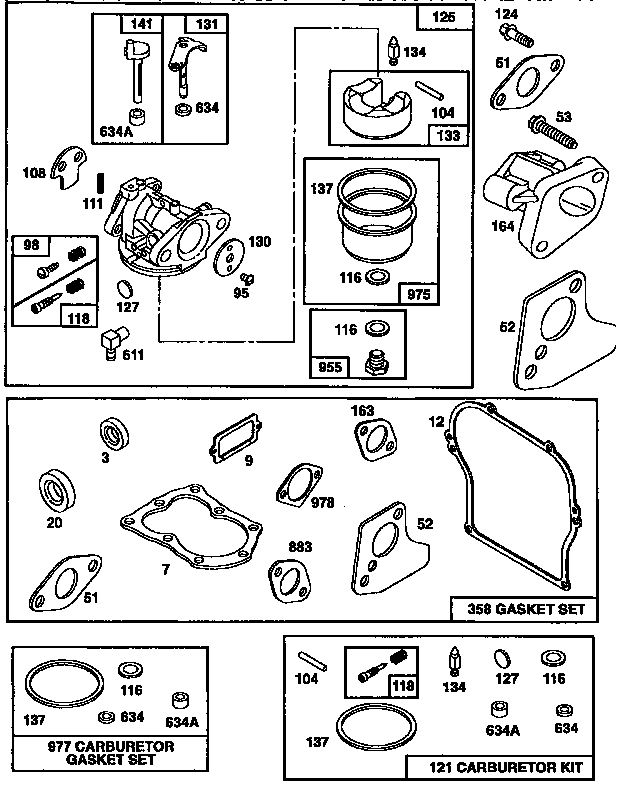

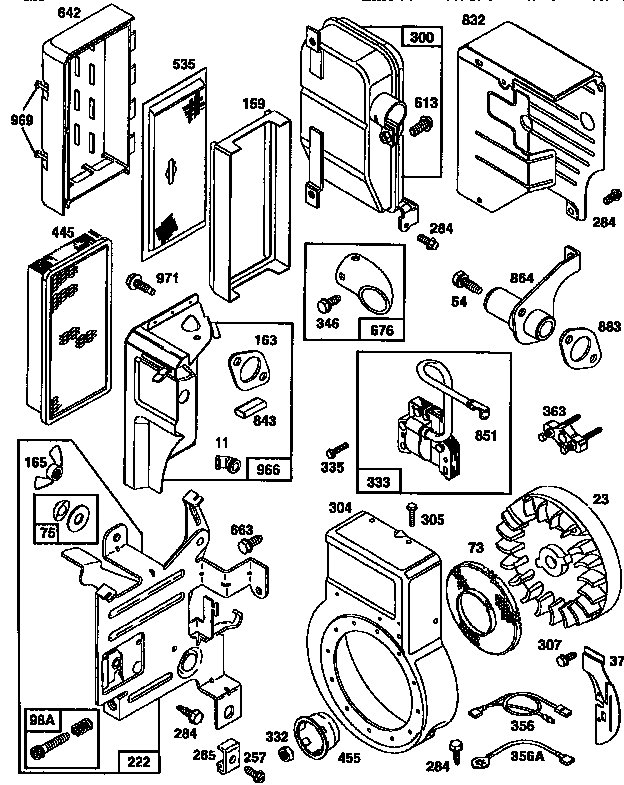

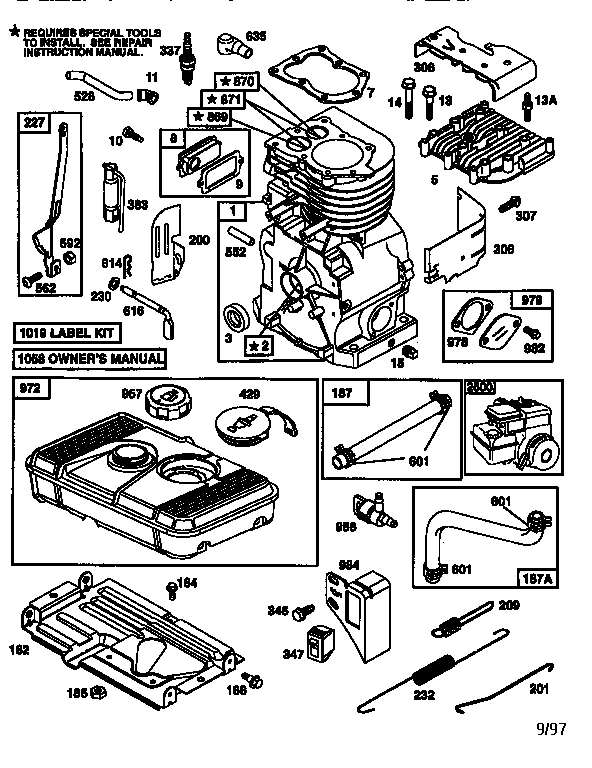

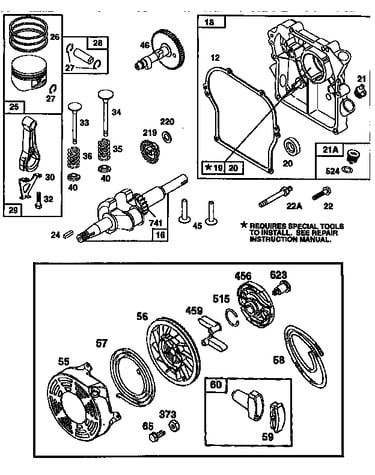

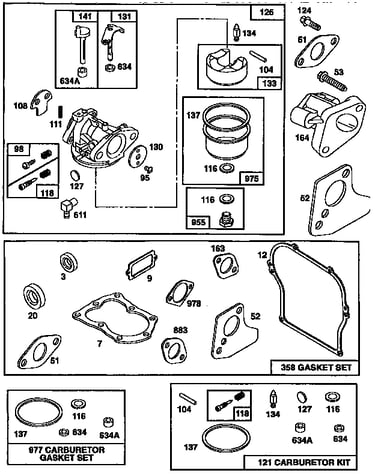

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Carburetor 490937

#977

All parts diagram

Carburetor

Part #490937

Replaced by #498260

?
Manufacturer substitution
This part replaces 490937. Substitute parts can look different from the original.
BEST SELLER
$26.03 |
16% OFF Phone Price : $31.03
In Stock
Carburetor Kit 493762

#121

All parts diagram

Carburetor kit

Part #493762

Replaced by #498260

?
Manufacturer substitution
This part replaces 493762. Substitute parts can look different from the original.
BEST SELLER
$26.03 |
16% OFF Phone Price : $31.03
In Stock
Bowl 493640

#975

All parts diagram

Bowl

Part #493640

Replaced by #796611

?
Manufacturer substitution
This part replaces 493640. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.24 |
11% OFF Phone Price : $9.24
In Stock
Fuel Inlet 494451

#611

All parts diagram

Fuel inlet

Part #494451

Replaced by #692317

?
Manufacturer substitution
This part replaces 494451. Substitute parts can look different from the original.
BEST SELLER
$8.02 |
11% OFF Phone Price : $9.02
In Stock
Key 222698

#24

All parts diagram

Key

Part #222698

Replaced by #222698S

?
Manufacturer substitution
This part replaces 222698. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.29 |
23% OFF Phone Price : $4.29
In Stock
Pawl 281505

#459

All parts diagram

Pawl

Part #281505

Replaced by #281505S

?
Manufacturer substitution
This part replaces 281505. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.80 |
15% OFF Phone Price : $6.80
In Stock
Retainer 281503

#456

All parts diagram

Retainer

Part #281503

Replaced by #692299

?
Manufacturer substitution
This part replaces 281503. Substitute parts can look different from the original.
This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
Spring 263073

#515

All parts diagram

Spring

Part #263073

Replaced by #691855

?
Manufacturer substitution
This part replaces 263073. Substitute parts can look different from the original.
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Clamp 93053

#601

All parts diagram

Clamp

Part #93053

Replaced by #791850

?
Manufacturer substitution
This part replaces 93053. Substitute parts can look different from the original.
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Air Cleaner Cartridge 494511

#445

All parts diagram

Air cleaner cartridge

Part #494511

Replaced by #494511S

?
Manufacturer substitution
This part replaces 494511. Substitute parts can look different from the original.
This item is not returnable
$20.59 |
20% OFF Phone Price : $25.59
In Stock
