Model # 17-925 Official Delta 16-1/2" variable-speed drill press

Here are the diagrams and repair parts for Official Delta 17-925 16-1/2" variable-speed drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

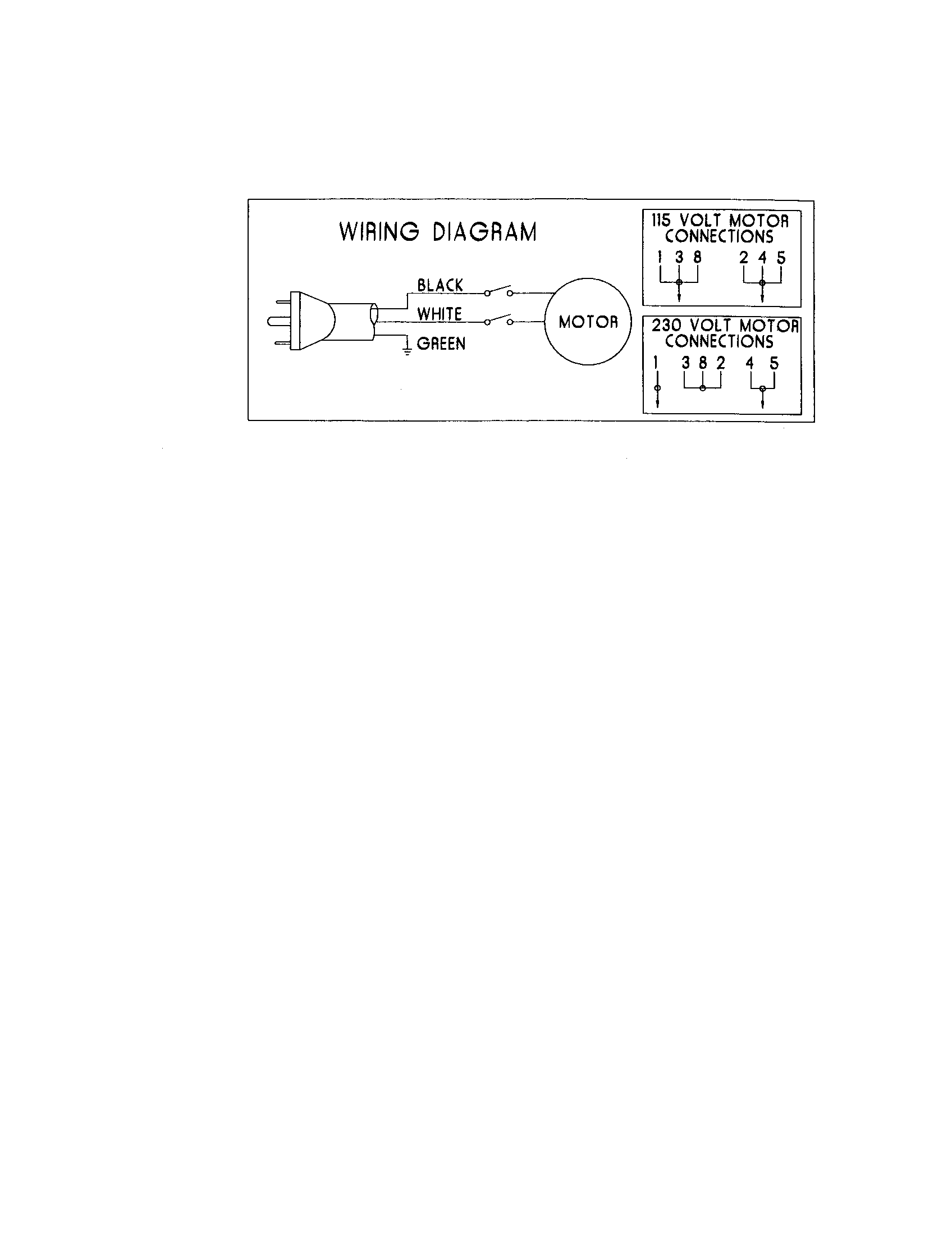

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Grip 1346024
#42

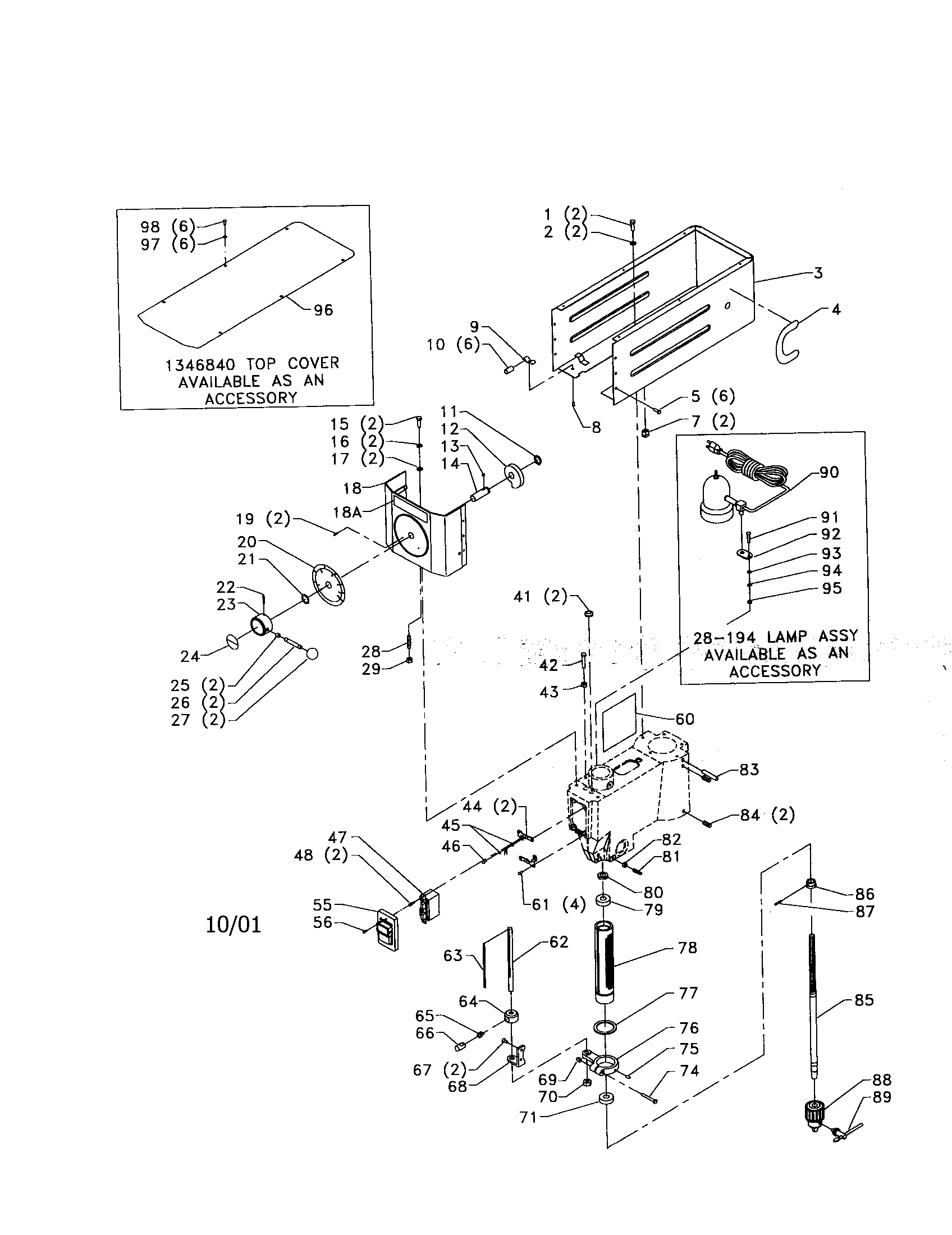

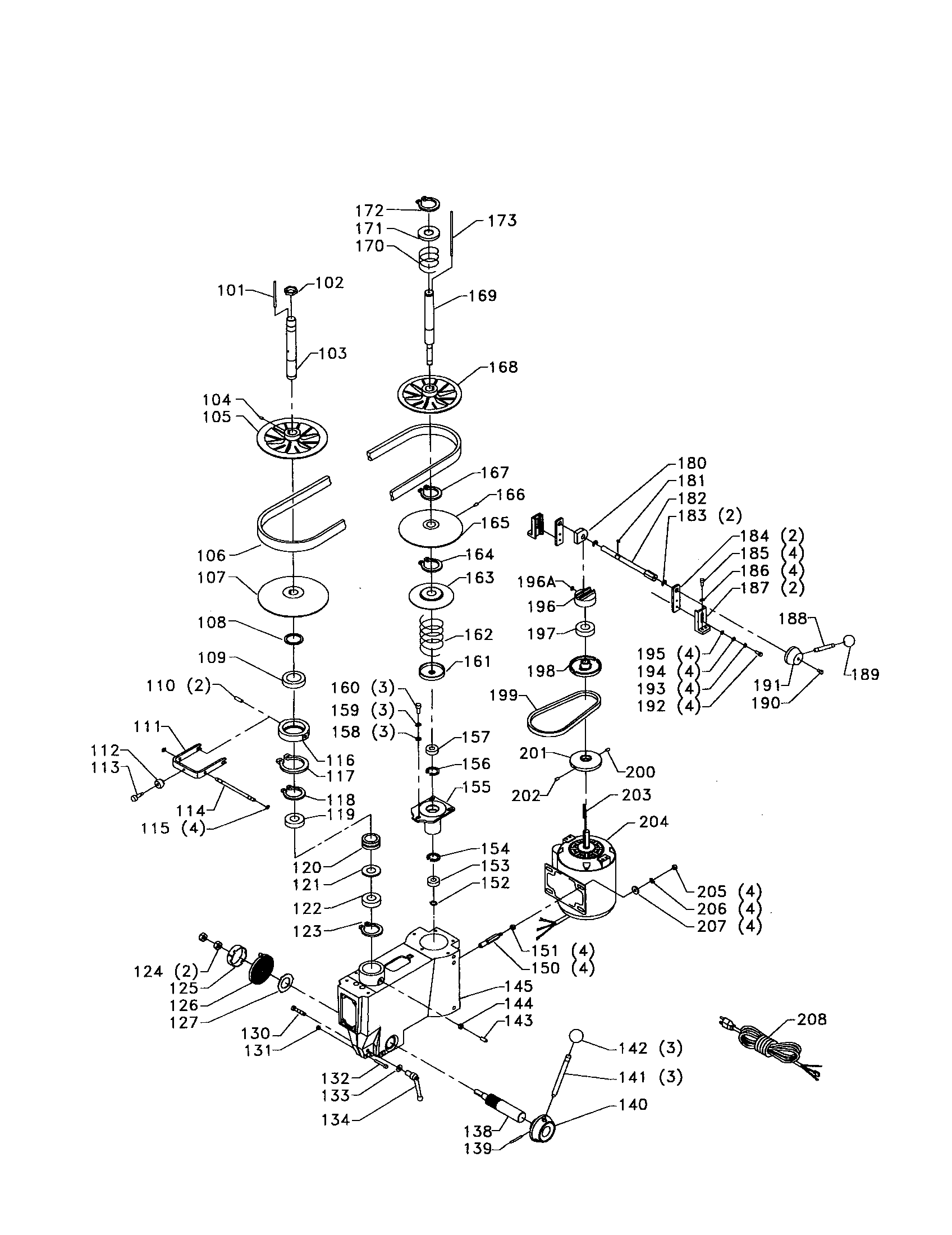

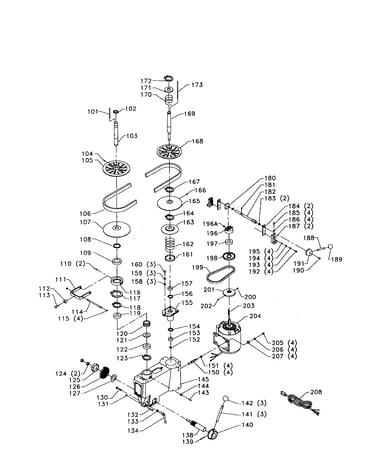

Motor 3/4 hp, 1ph diagram

Grip

Part #1346024

The manufacturer no longer makes this part, and there's no substitute part

Nut 1343492
#70

Guard and top cover diagram

Nut

Part #1343492

The manufacturer no longer makes this part, and there's no substitute part

Screw 1313192
#8

Guard and top cover diagram

Screw

Part #1313192

The manufacturer no longer makes this part, and there's no substitute part

Washer 1313361
#195

Motor 3/4 hp, 1ph diagram

Washer

Part #1313361

The manufacturer no longer makes this part, and there's no substitute part

Handle 1311018
#315

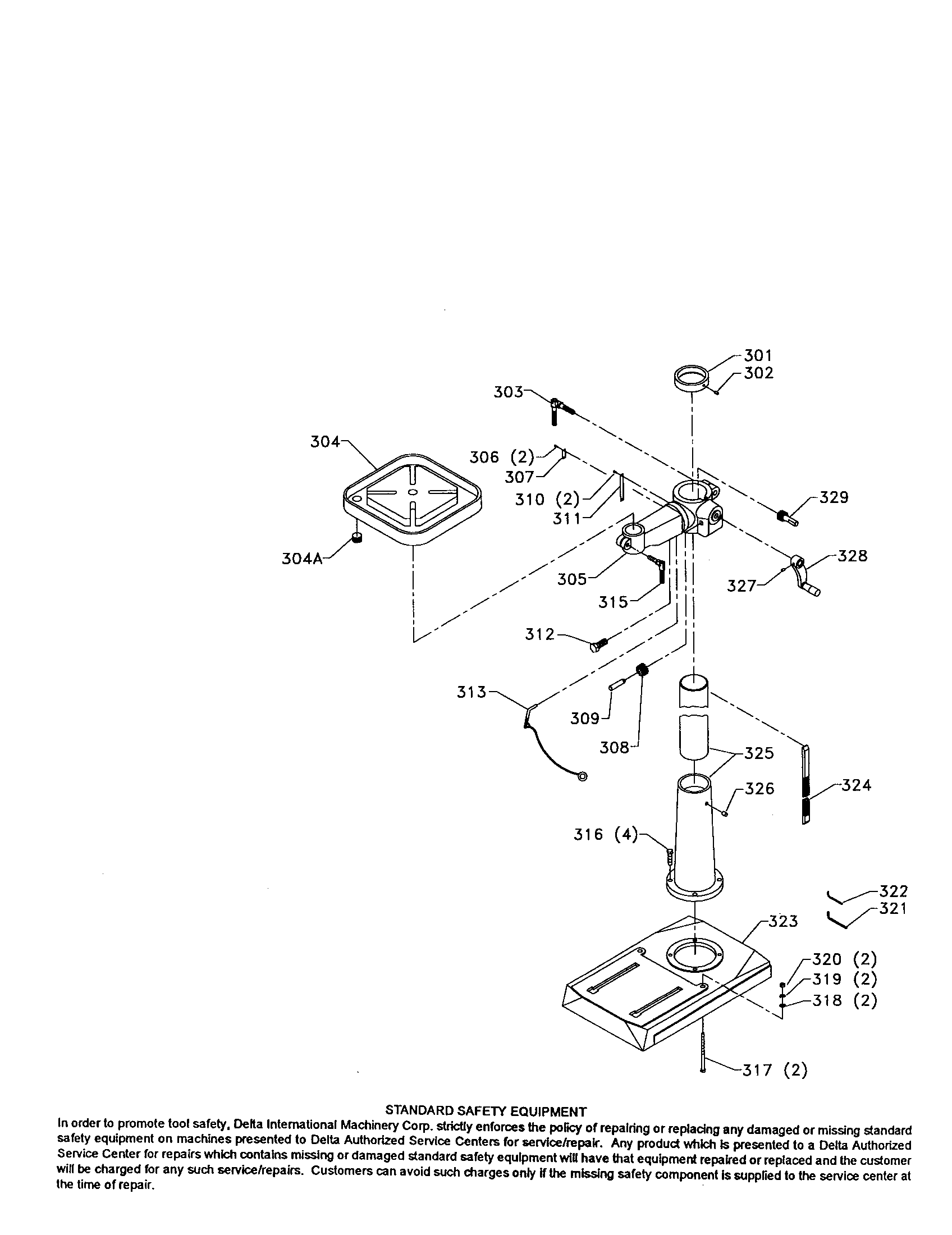

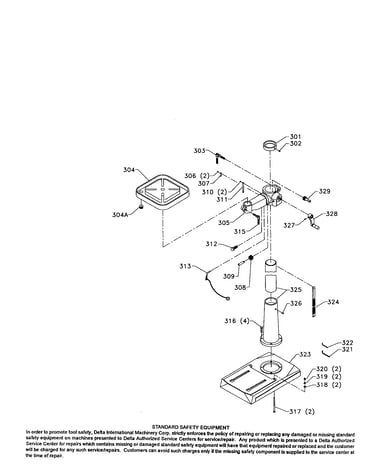

Base/table diagram

Handle

Part #1311018

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Rivet, 5-mm 1310016
Power tool rivet, 5-mm

Part #1310016

The manufacturer no longer makes this part, and there's no substitute part

Screw 1344329
#317

Base/table diagram

Screw

Part #1344329

The manufacturer no longer makes this part, and there's no substitute part

Washer 1313118
#21

Guard and top cover diagram

Washer

Part #1313118

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 1243321
Set screw

Part #1243321

The manufacturer no longer makes this part, and there's no substitute part

Screw 1243336
Screw

Part #1243336

The manufacturer no longer makes this part, and there's no substitute part
