Model # 143102110 Official Craftsman 4-cycle gas engine

Here are the diagrams and repair parts for Official Craftsman 143102110 4-cycle gas engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 227 parts  |

Element 27233
#54

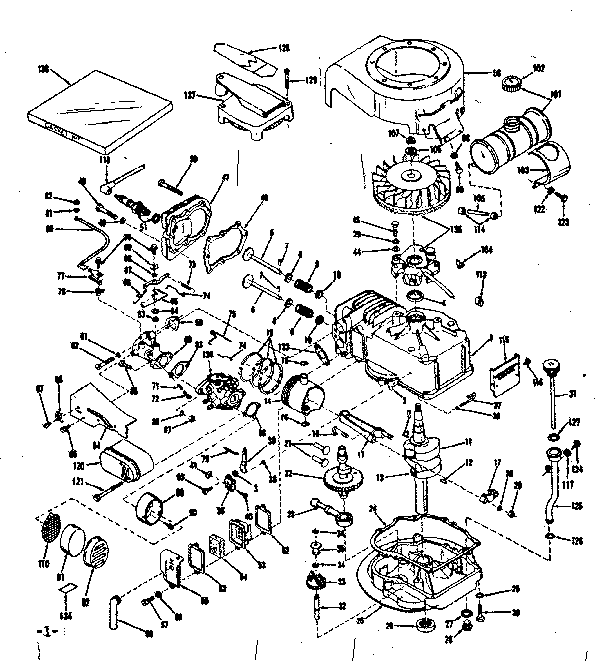

Basic engine diagram

Element

Part #27233

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943
#51

Basic engine diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

Shaft 29194
#32

Basic engine diagram

Shaft

Part #29194

The manufacturer no longer makes this part, and there's no substitute part

Gasket 28833
#27

Basic engine diagram

Gasket

Part #28833

The manufacturer no longer makes this part, and there's no substitute part

Valve Kit 29314
#5

Basic engine diagram

Valve kit

Part #29314

The manufacturer no longer makes this part, and there's no substitute part

Spool 30116
#35

Basic engine diagram

Spool

Part #30116

The manufacturer no longer makes this part, and there's no substitute part

Gasket 630742
#19

Carburetor no.30119 (power products) diagram

Gasket

Part #630742

The manufacturer no longer makes this part, and there's no substitute part

Muffler 30121
#120

Basic engine diagram

Muffler

Part #30121

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Screw 28403
#62

Basic engine diagram

Screw

Part #28403

The manufacturer no longer makes this part, and there's no substitute part
