Craftsman
Electric Line Trimmer

Model # 358798010 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 358798010 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

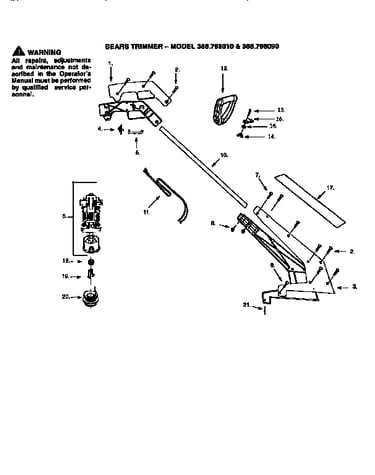

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |

Retainer 530-401957
#19

Replacement parts diagram

Retainer

Part #530-401957

Replaced by #530401957

?
Manufacturer substitution
This part replaces 530-401957. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bolt 530-015820
#13

Replacement parts diagram

Bolt

Part #530-015820

Replaced by #530015820

?
Manufacturer substitution
This part replaces 530-015820. Substitute parts can look different from the original.
This item is not returnable
In Stock
Washer 530-092062
#16

Replacement parts diagram

Washer

Part #530-092062

Replaced by #530092062

?
Manufacturer substitution
This part replaces 530-092062. Substitute parts can look different from the original.
This item is not returnable
In Stock
Print Carton 530-085241

#*19082

All parts diagram

Print carton

Part #530-085241

Replaced by #530085241

?
Manufacturer substitution
This part replaces 530-085241. Substitute parts can look different from the original.
In Stock
Wing Nut 530-091373
#14

Replacement parts diagram

Wing nut

Part #530-091373

The manufacturer no longer makes this part, and there's no substitute part

Housing 530-402160
#3A

Replacement parts diagram

Housing

Part #530-402160

The manufacturer no longer makes this part, and there's no substitute part

Spoolw/line 71-85837
#20

Replacement parts diagram

Spoolw/line

Part #71-85837

The manufacturer no longer makes this part, and there's no substitute part

Handle 530-401864
#12

Replacement parts diagram

Handle

Part #530-401864

The manufacturer no longer makes this part, and there's no substitute part

Decal-namepl 530-402155

#*19083

All parts diagram

Decal-namepl

Part #530-402155

The manufacturer no longer makes this part, and there's no substitute part

Screw 530-348050
#7

Replacement parts diagram

Screw

Part #530-348050

The manufacturer no longer makes this part, and there's no substitute part
