Craftsman
Walk-Behind Mower

Model # 131978415 Official Craftsman 22" power-propelled lawn mower with solid state ignition

Here are the diagrams and repair parts for Official Craftsman 131978415 22" power-propelled lawn mower with solid state ignition, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

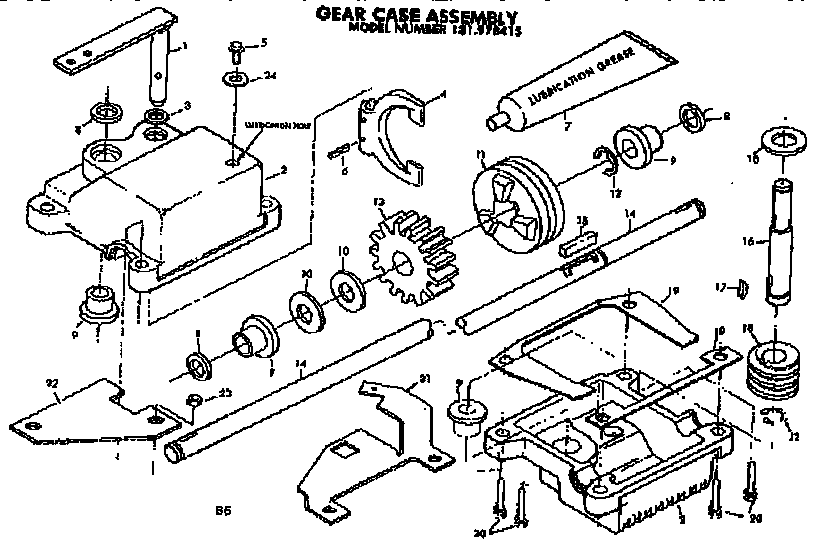

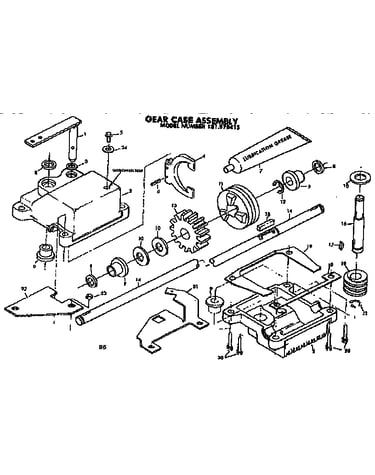

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |

Blade 69334
#73

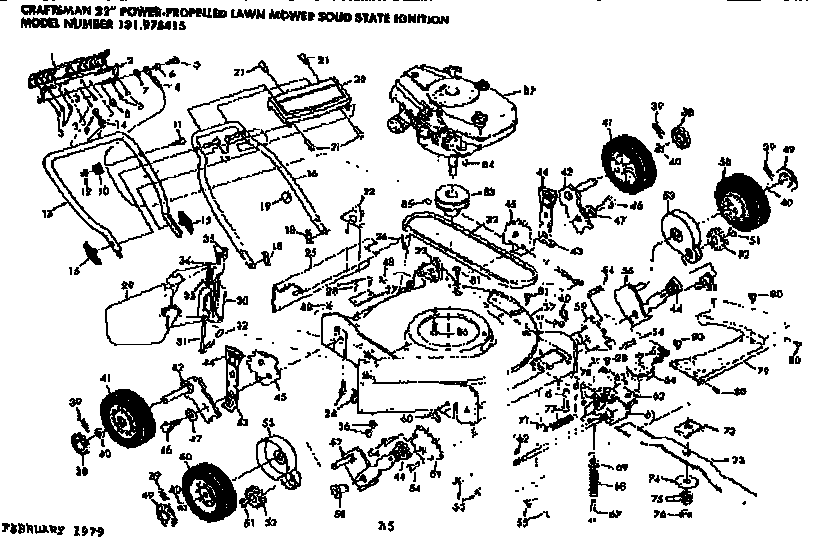

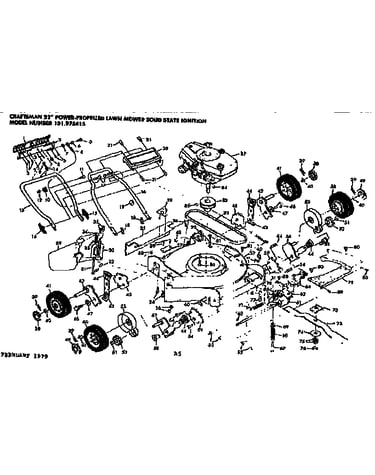

Mower deck diagram

Blade

Part #69334

Replaced by #532406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$12.71
36% OFF MSRP : $20.00
In Stock
Washer 52160
#40

Mower deck diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 76399
#77

Mower deck diagram

Screw

Part #76399

The manufacturer no longer makes this part, and there's no substitute part

Wheel And Tire Assembly STD380235
#41

Mower deck diagram

Wheel and tire assembly

Part #STD380235

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 74218
#12

Mower deck diagram

Lock nut

Part #74218

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut, #10-24 STD541410
Lock nut, #10-24

Part #STD541410

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut, 1/4-20 STD541425
Lock nut, 1/4-20

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part

Spring Assembly 76449
#56

Mower deck diagram

Spring assembly

Part #76449

The manufacturer no longer makes this part, and there's no substitute part

Number Plate 78119
#27

Mower deck diagram

Number plate

Part #78119

The manufacturer no longer makes this part, and there's no substitute part

Hairpin 51793
#18

Mower deck diagram

Hairpin

Part #51793

The manufacturer no longer makes this part, and there's no substitute part
