Model # DCR-HC38 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-HC38 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Cable Audio Video 182315651
#NI

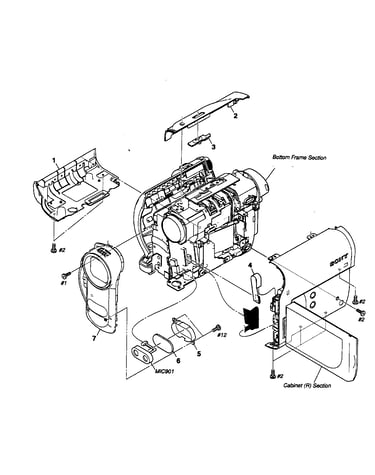

Cabinet parts 1 diagram

Cable audio video

Part #182315651

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable 183321111
#53

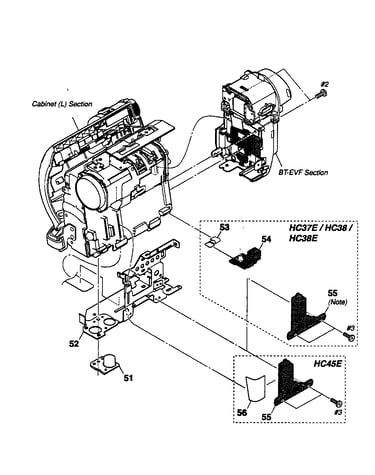

Bottom frame assy diagram

Flex cable

Part #183321111

The manufacturer no longer makes this part, and there's no substitute part

Cover,dc-a 289988601
#262

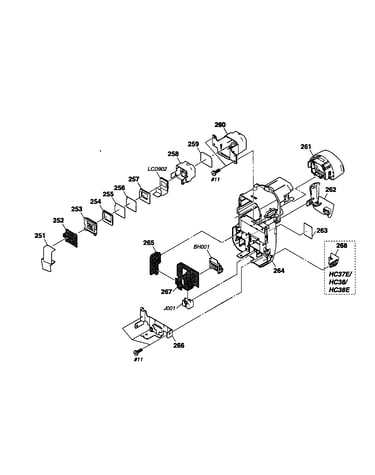

Bt-evf assy diagram

Cover,dc-a

Part #289988601

The manufacturer no longer makes this part, and there's no substitute part

Flex Board A1153842A
#215

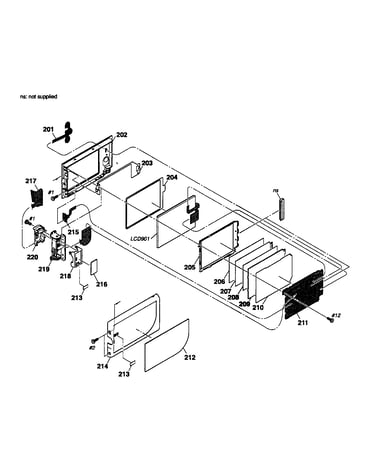

Lcd panel block diagram

Flex board

Part #A1153842A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Board A1212716A
#108

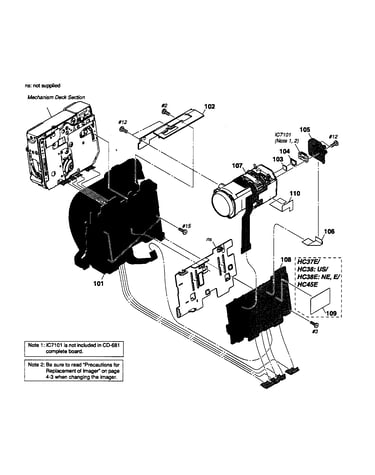

Cabinet parts 2 diagram

Pcb board

Part #A1212716A

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assembly X21763711
#155

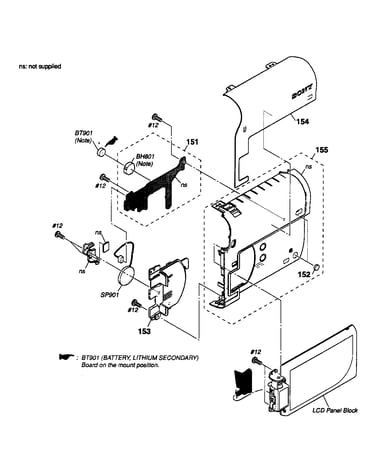

Cabinet parts 3 diagram

Cabinet assembly

Part #X21763711

The manufacturer no longer makes this part, and there's no substitute part

Hinge Cover 289973601
#218

Lcd panel block diagram

Hinge cover

Part #289973601

The manufacturer no longer makes this part, and there's no substitute part

V-111 Pcb A1212458A
#265

Bt-evf assy diagram

V-111 pcb

Part #A1212458A

The manufacturer no longer makes this part, and there's no substitute part

Ac Adapter 147928521
#NI

Cabinet parts 1 diagram

Ac adapter

Part #147928521

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker 182526023
#NI

Cabinet parts 3 diagram

Camcorder speaker

Part #182526023

The manufacturer no longer makes this part, and there's no substitute part
