Kenmore
Central Air Conditioner

Model #2537791450 Official Kenmore air conditioner

Here are the diagrams and repair parts for Kenmore 2537791450 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 78 parts

Dryer Screw#43

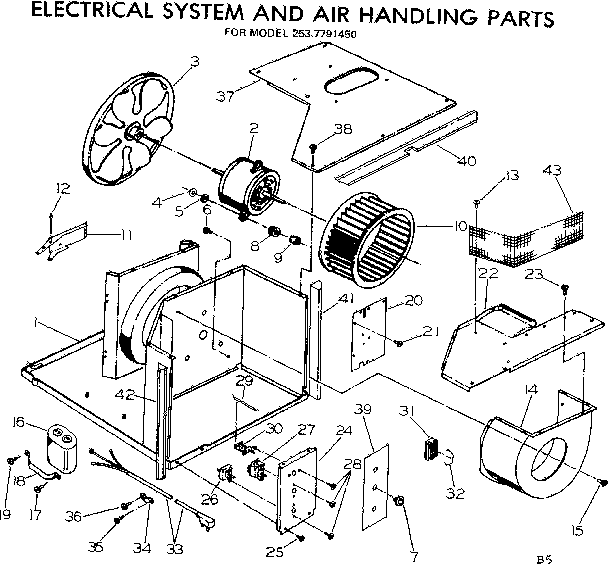

Electrical system and air handling parts Diagram

Guard

Part #500665
Replaced by #134154100
?
Manufacturer substitution
This part replaces 500665. Substitute parts can look different from the original.
In Stock
$14.91 |
12% OFF
Phone Price: $16.91
Washer

#NI

All parts Diagram

Washer

Part #100033
Replaced by #3005891
?
Manufacturer substitution
This part replaces 100033. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.16
Refrigerator Compressor Grommet#2

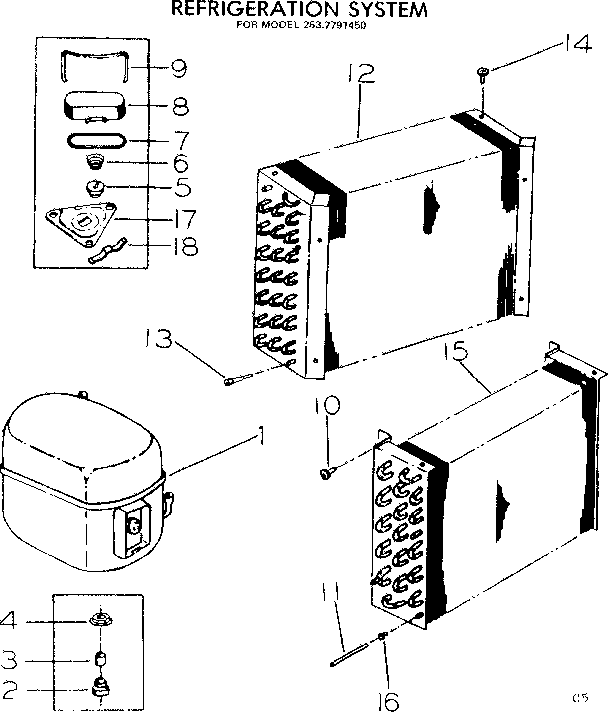

Refrigeration system Diagram

Grommet

Part #126340
Replaced by #218513300
?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
In Stock
$36.56 |
12% OFF
Phone Price: $41.56
Air Filter#11

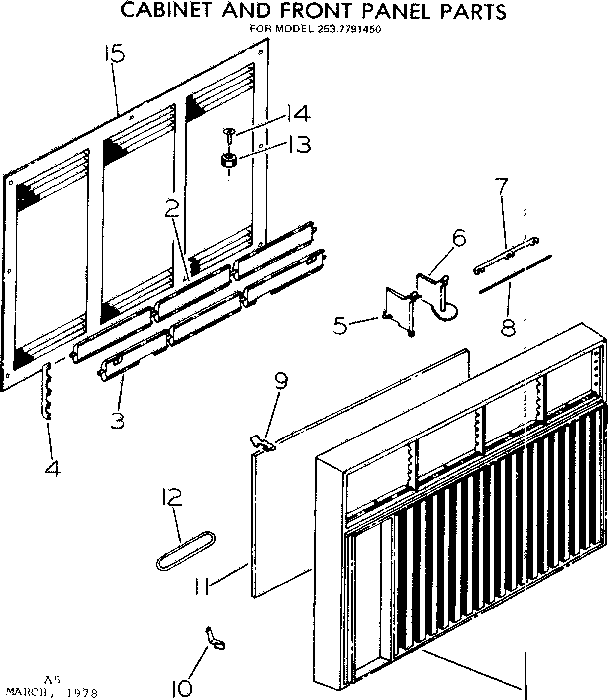

Cabinet and front panel parts Diagram

Air filter

Part #47-9186

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Wire Harness Clamp#34

Electrical system and air handling parts Diagram

Clamp

Part #27669
Replaced by #5303001199
?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
In Stock
$51.00
Dehumidifier Screw#25

Electrical system and air handling parts Diagram

Screw

Part #500739
Replaced by #5303007620
?
Manufacturer substitution
This part replaces 500739. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.72
Thermostat#27

Electrical system and air handling parts Diagram

Thermostat

Part #117438

The manufacturer no longer makes this part, and there's no substitute part

Screw

See All Related Diagrams

Screw

Part #500638

The manufacturer no longer makes this part, and there's no substitute part

Decorative Panel#39

Electrical system and air handling parts Diagram

Decorative panel

Part #506732

The manufacturer no longer makes this part, and there's no substitute part

Screw#21

Electrical system and air handling parts Diagram

Screw

Part #500637

The manufacturer no longer makes this part, and there's no substitute part
