Whirlpool MW8550XS5 microwave Parts

Here are the diagrams and repair parts for Whirlpool MW8550XS5 microwave, as well as links to manuals and error code tables, if available.

Whirlpool MW8550XS5 microwave
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MW8550XS5 Microwaves

  • Door Handle for Whirlpool MW8550XS5 - Part 313610

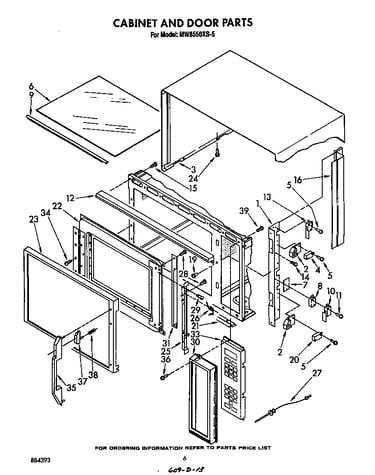

    Cabinet and door diagram

    Door Handle

    Part #313610

    The manufacturer no longer makes this part, and there's no substitute part

  • Voltage Wire for Whirlpool MW8550XS5 - Part 313130

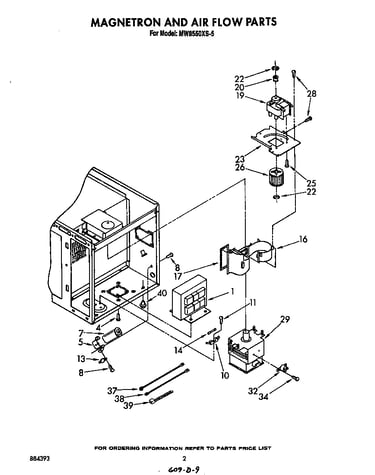

    Magnetron/air flow diagram

    Voltage Wire

    Part #313130

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool MW8550XS5 - Part 312717

    Cabinet and door diagram

    Screw

    Part #312717

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire Harness for Whirlpool MW8550XS5 - Part 3147072

    Magnetron/air flow diagram

    Wire Harness

    Part #3147072

    The manufacturer no longer makes this part, and there's no substitute part

  • Trim Wrap for Whirlpool MW8550XS5 - Part 313598

    Cabinet and door diagram

    Trim Wrap

    Part #313598

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor Bracket for Whirlpool MW8550XS5 - Part 312619

    Magnetron/air flow diagram

    Capacitor Bracket

    Part #312619

    The manufacturer no longer makes this part, and there's no substitute part

  • Appliance Splicing Wire, 25-ft, 14-gauge (yellow) for Whirlpool MW8550XS5 - Part 242827

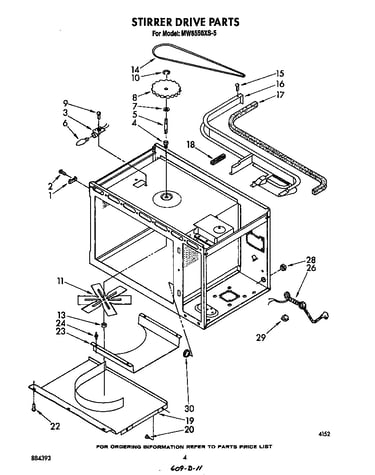

    Stirrer drive diagram

    Appliance Splicing Wire, 25-ft, 14-gauge (yellow)

    Part #242827

    The manufacturer no longer makes this part, and there's no substitute part

  • Paint Gy for Whirlpool MW8550XS5 - Part 242757

    #NI

    All parts diagram

    Paint Gy

    Part #242757

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire (blue) for Whirlpool MW8550XS5 - Part 10875

    Stirrer drive diagram

    Wire (blue)

    Part #10875

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool MW8550XS5 - Part 313823

    Cabinet and door diagram

    Screw

    Part #313823

    The manufacturer no longer makes this part, and there's no substitute part
