Model #RH123 Whirlpool air conditioner heat pump

Here are the diagrams and repair parts for Whirlpool RH123 air conditioner heat pump, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

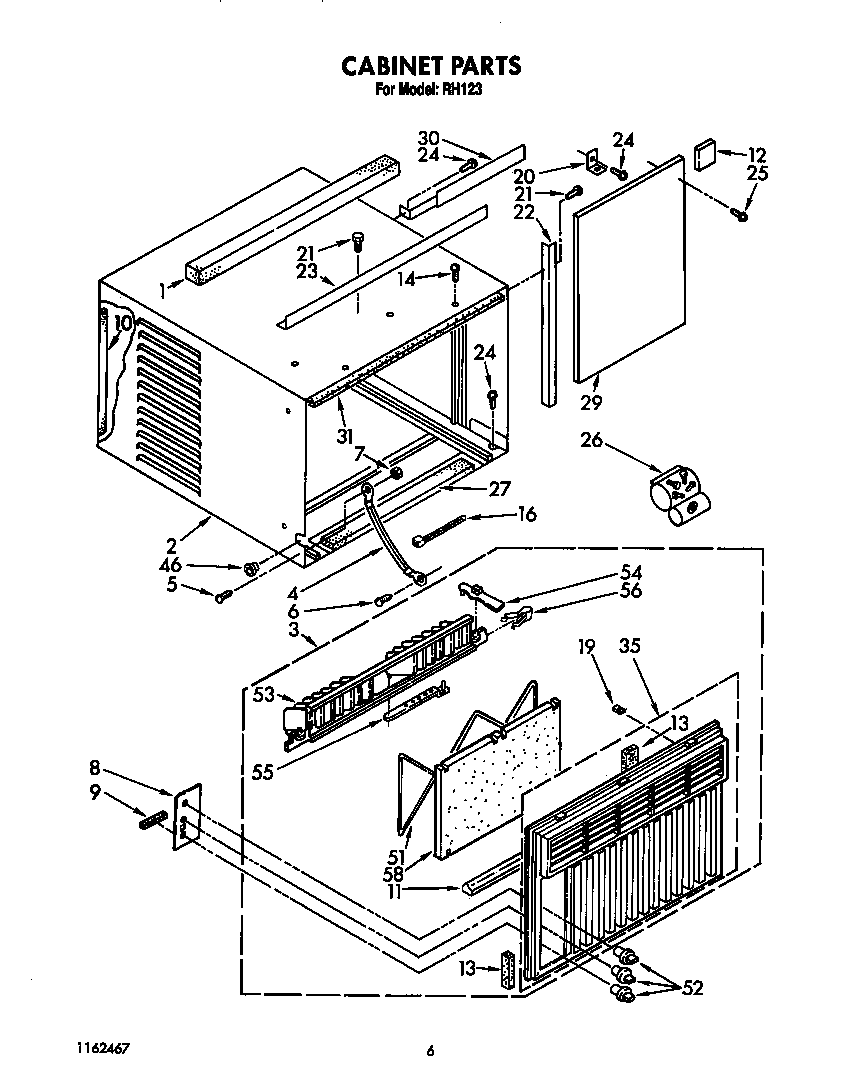

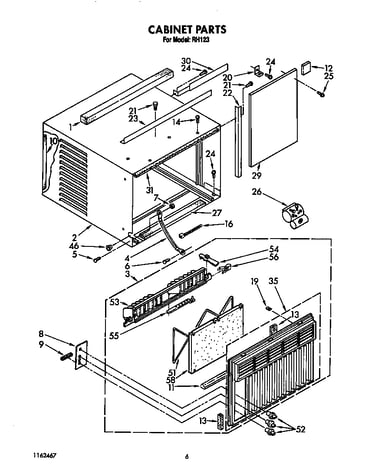

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 209 parts

    Bracket Support

    #13

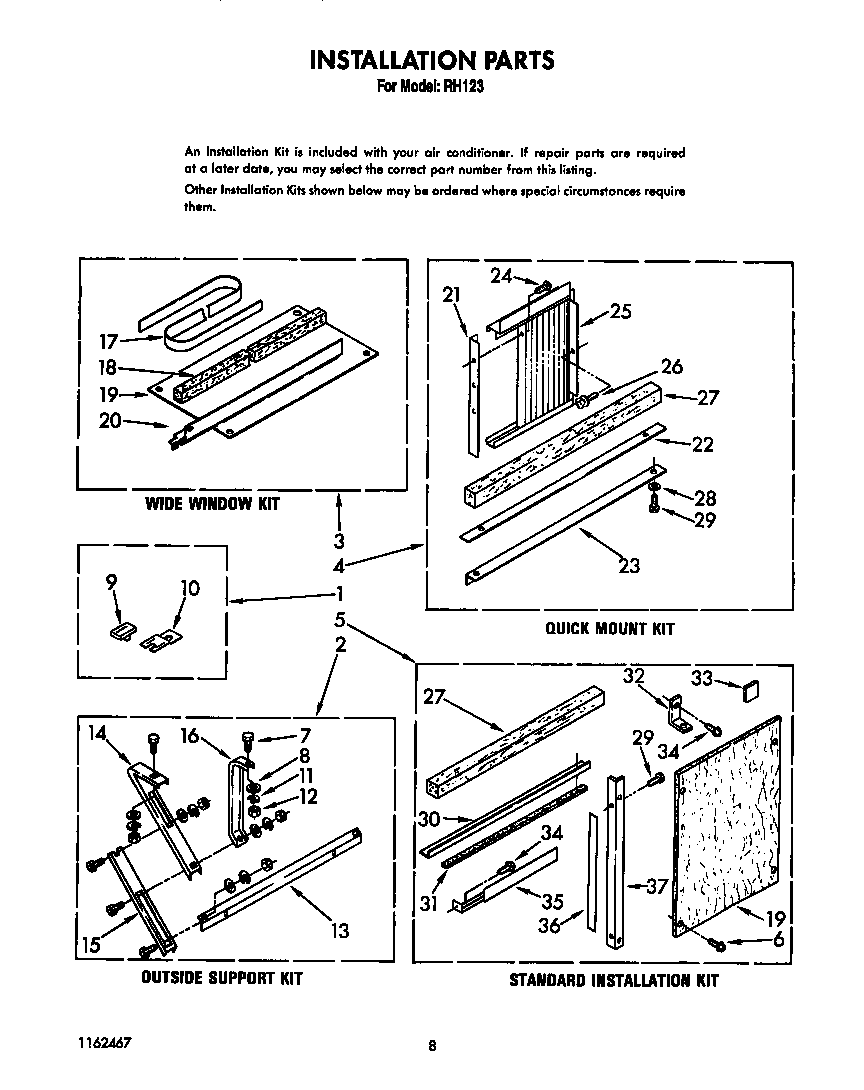

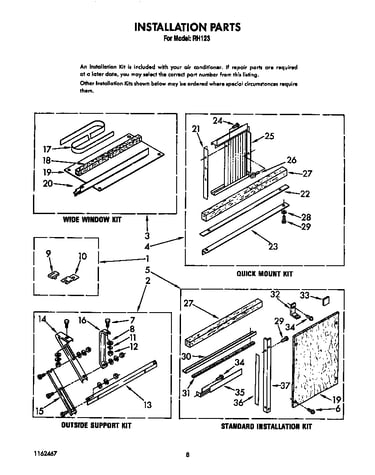

    Installation Diagram

    Bracket support

    Part #644281
    $42.20

    In Stock

    Room Air Conditioner Outdoor Cover

    #14D

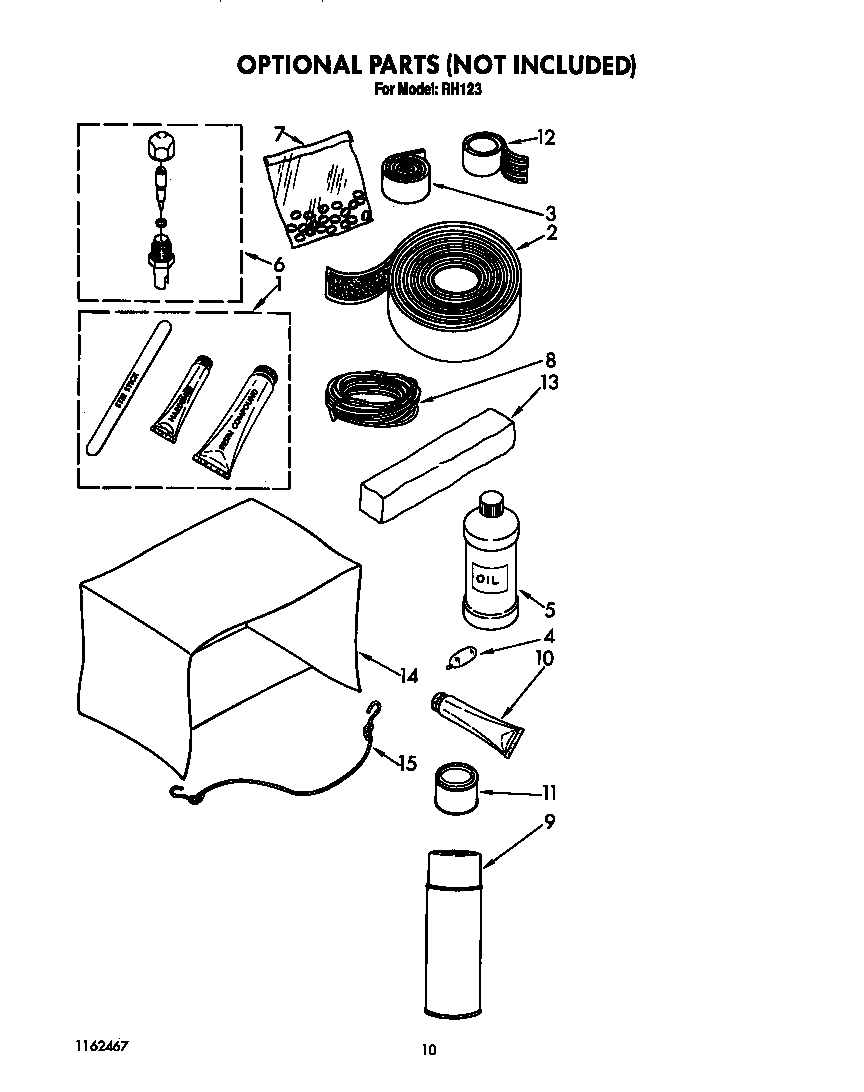

    Optional Diagram

    $48.13

    In Stock

    Wiring Diagram

    #1B

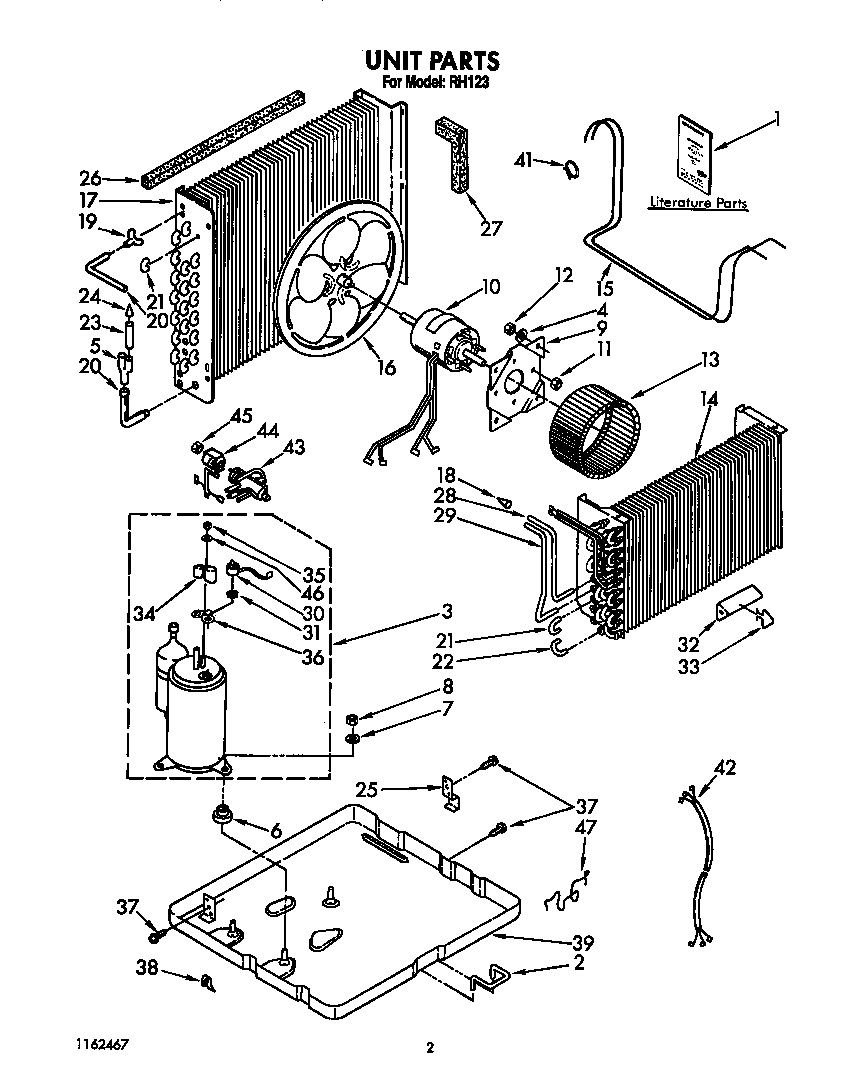

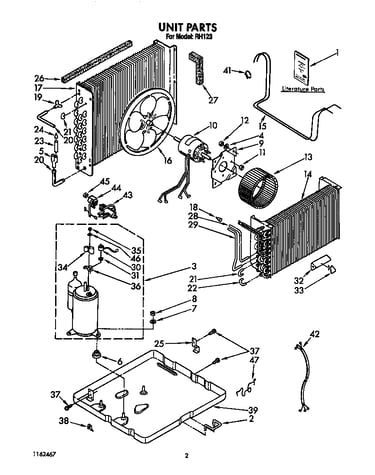

    Unit Diagram

    Wiring diagram

    Part #LIT1157105

    The manufacturer no longer makes this part, and there's no substitute part

    Appliance Screw

    #5

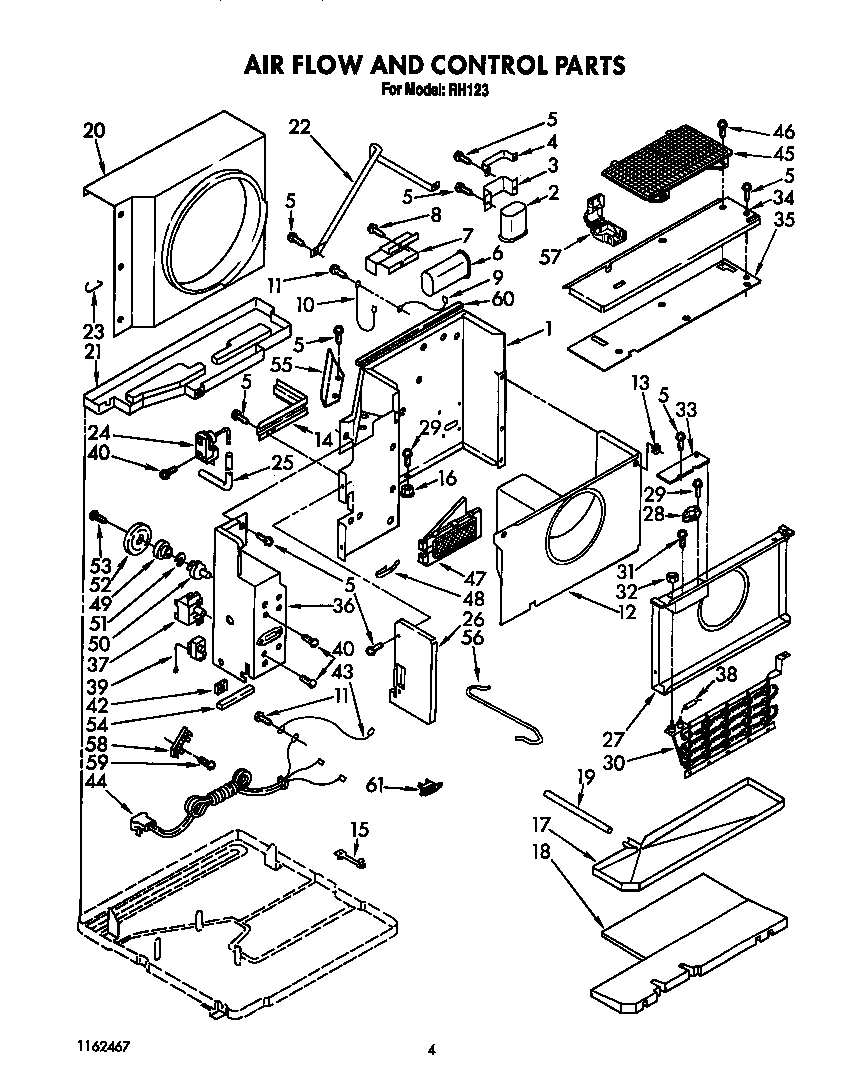

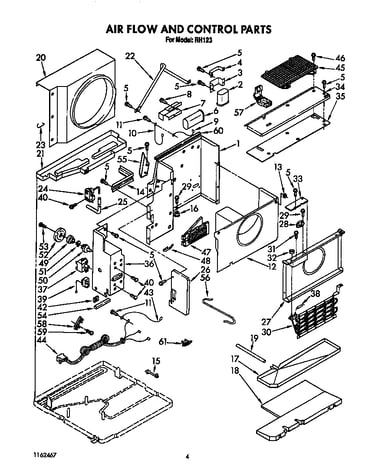

    Air flow and control Diagram

    Appliance screw

    Part #WP489069
    ?
    Manufacturer substitution
    This part replaces 488480. Substitute parts can look different from the original.
    This part replaces 488480
    This item is not returnable
    $2.58 |
    22% OFF MSRP:$3.29

    In Stock

    Washer

    #7

    Unit Diagram

    Washer

    Part #90315
    ?
    Manufacturer substitution
    This part replaces 489108. Substitute parts can look different from the original.
    This part replaces 489108
    This item is not returnable
    $4.20

    In Stock

    Nut

    #35

    Unit Diagram

    Nut

    Part #WP950027
    ?
    Manufacturer substitution
    This part replaces 950027. Substitute parts can look different from the original.
    This part replaces 950027
    This item is not returnable
    $3.29

    In Stock

    Gasket

    #36

    Unit Diagram

    Gasket

    Part #WP950035
    ?
    Manufacturer substitution
    This part replaces 950035. Substitute parts can look different from the original.
    This part replaces 950035
    $32.40

    In Stock

    Refrigerator Service Valve

    #6B

    Optional Diagram

    Refrigerator service valve

    Part #WP978025
    ?
    Manufacturer substitution
    This part replaces 978025. Substitute parts can look different from the original.
    This part replaces 978025
    $33.74 |
    13% OFF MSRP:$39.00

    In Stock

    Refrigerator Permagum Sealer

    #13

    Optional Diagram

    Refrigerator permagum sealer

    Part #4318168
    ?
    Manufacturer substitution
    This part replaces 99344. Substitute parts can look different from the original.
    This part replaces 99344
    $30.97 |
    6% OFF MSRP:$33.00

    In Stock

    Motor Run Capacitor

    #6

    Air flow and control Diagram

    Motor run capacitor

    Part #12929
    ?
    Manufacturer substitution
    This part replaces 999786. Substitute parts can look different from the original.
    This part replaces 999786
    This item is not returnable
    $5.94

    In Stock
