Kenmore
Countertop Microwave

Model #72169211890 Official Kenmore microwave

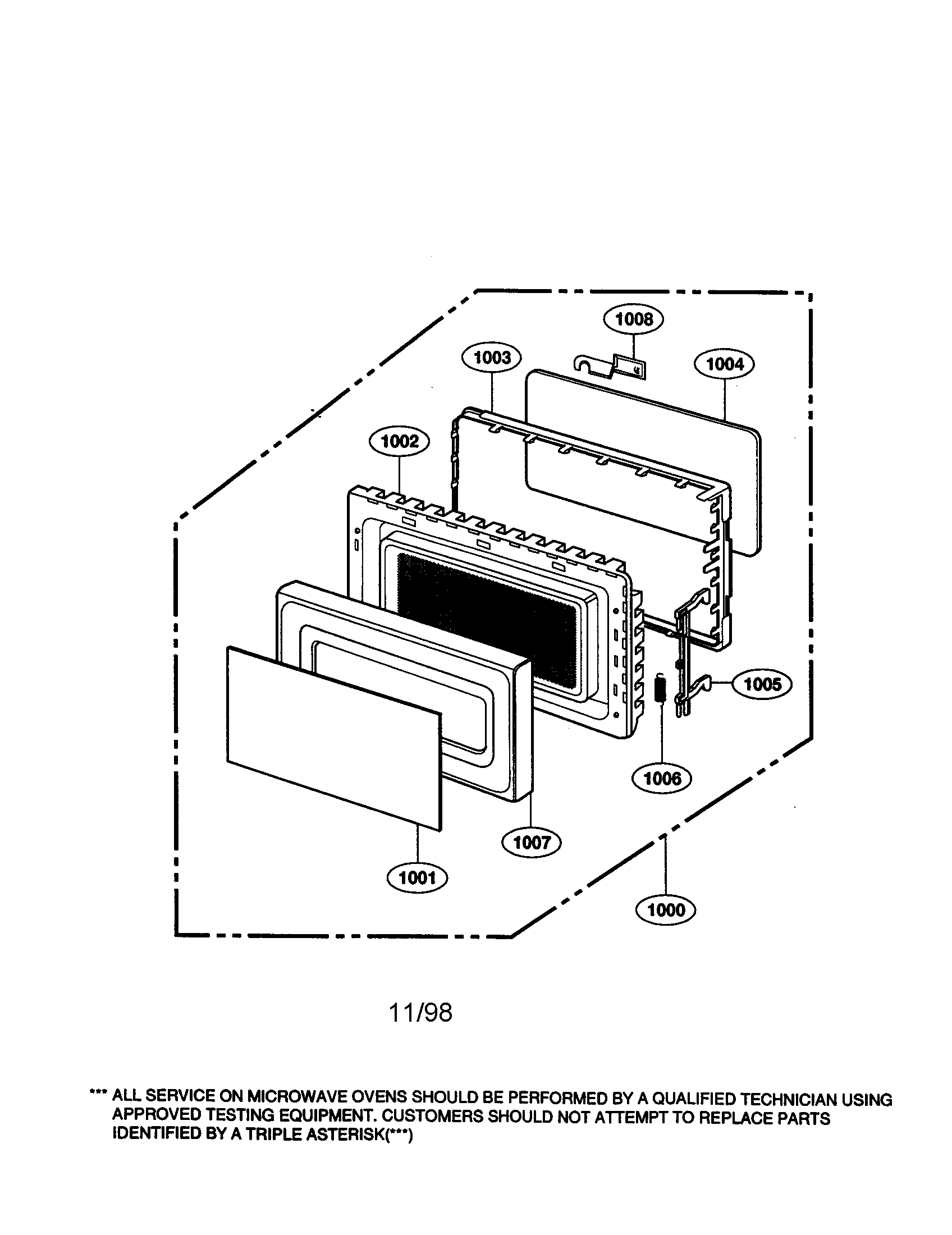

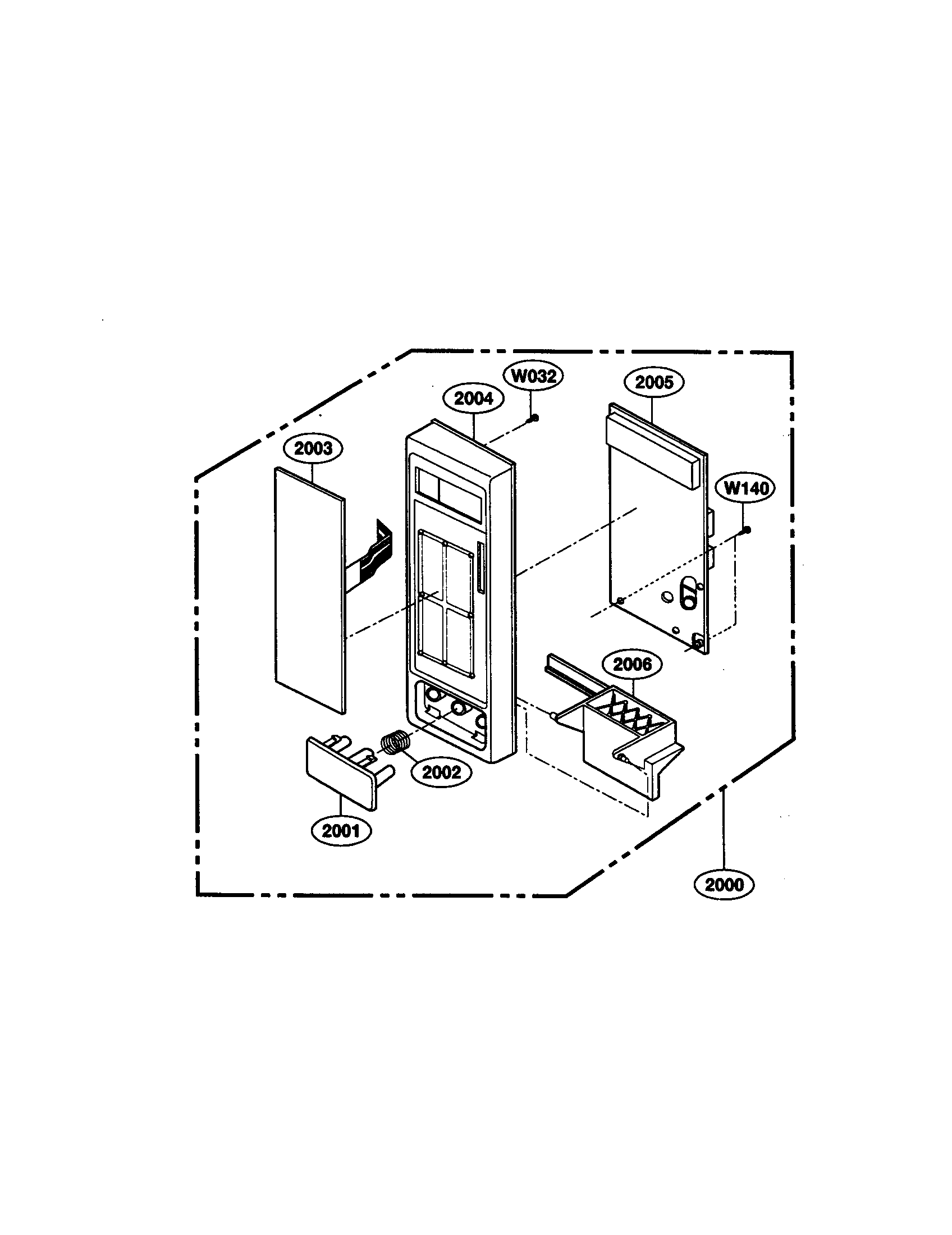

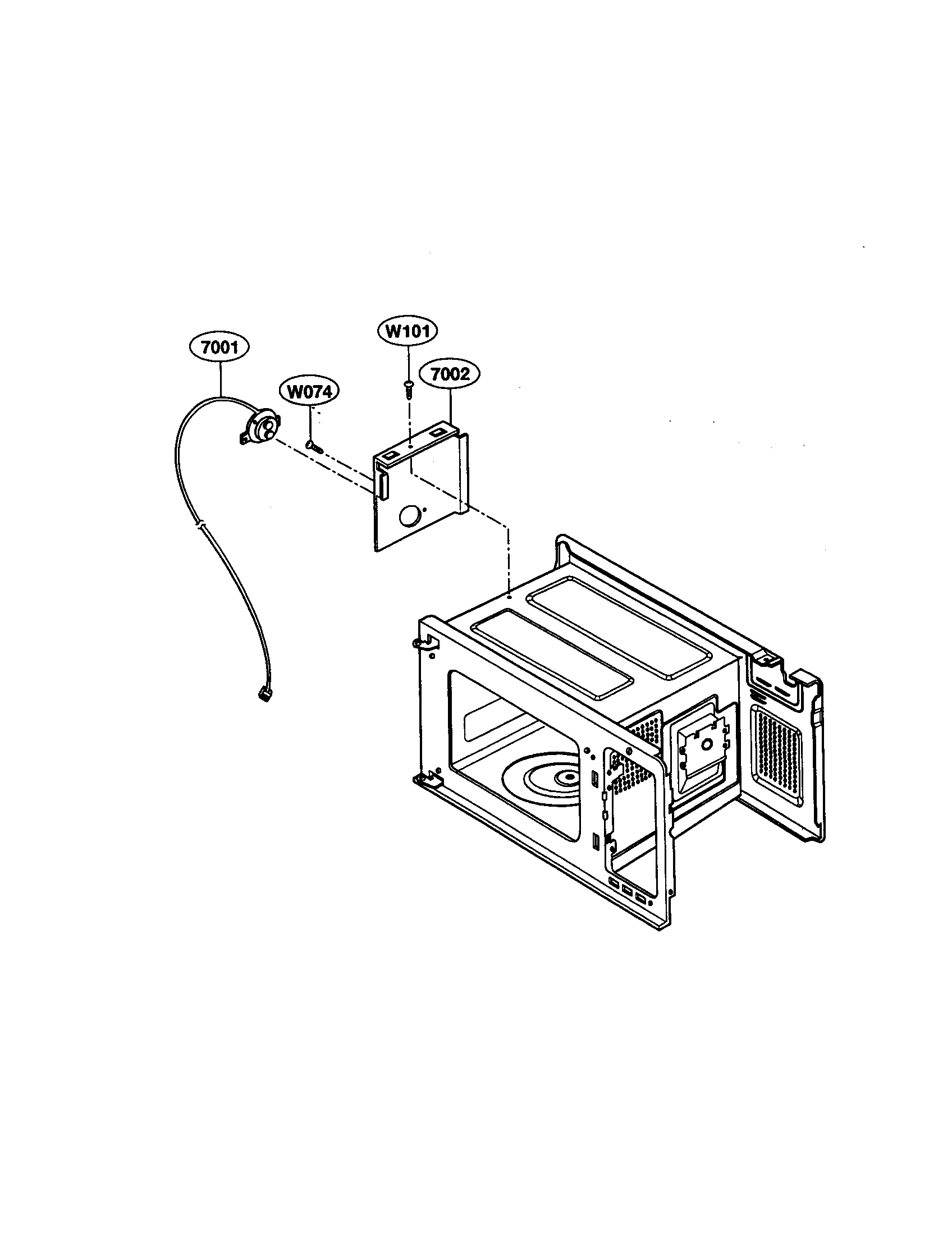

Here are the diagrams and repair parts for Kenmore 72169211890 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 113 parts

Microwave Door Interlock Switch#4003

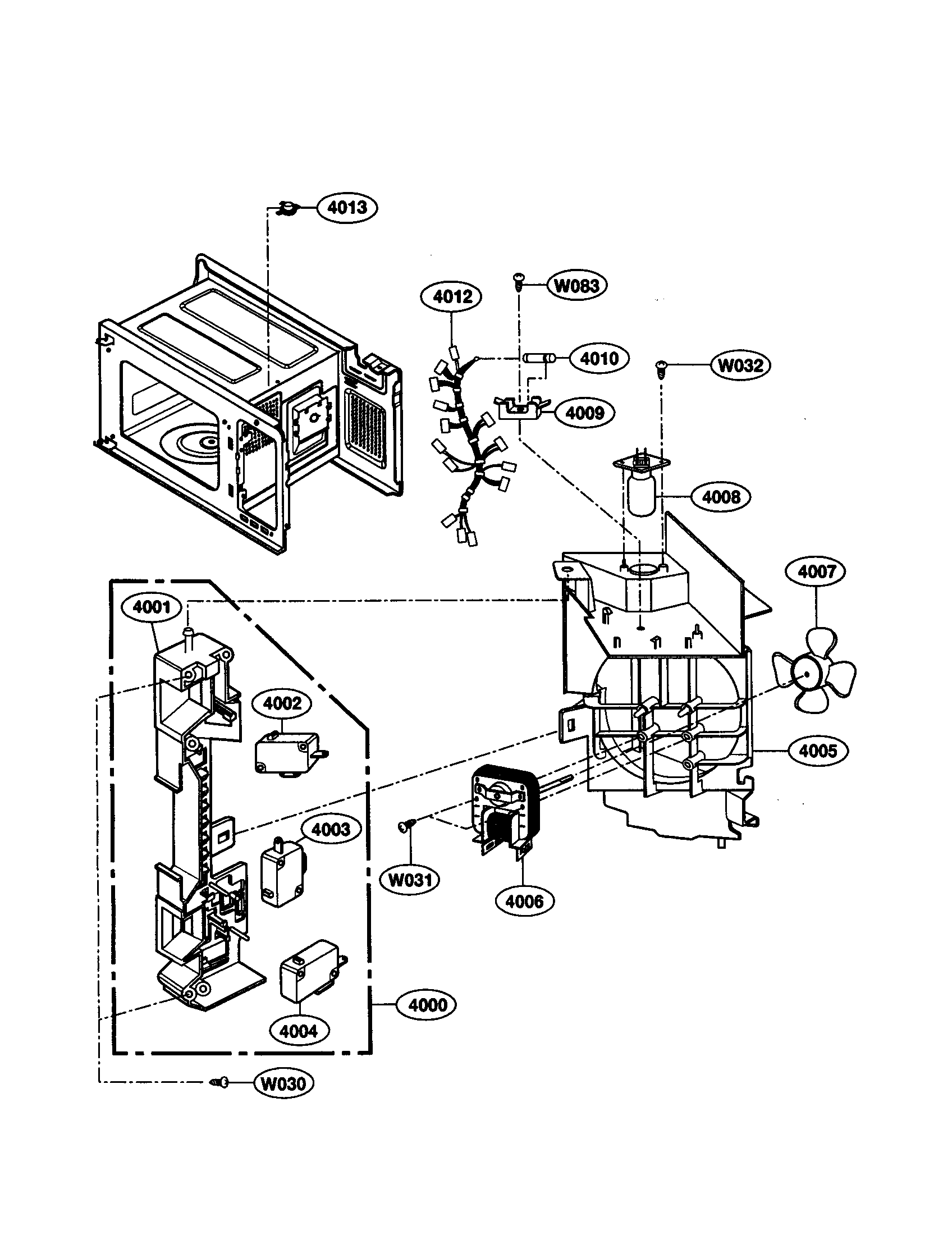

Suction guide Diagram

Microwave door interlock switch

Part #3B73361E
Replaced by #6600W1K001C
?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.29 |
12% OFF
Phone Price: $8.29
Microwave Light Bulb (replaces 6912W3B002G)#4008

Suction guide Diagram

Lamp

Part #6912W3B002G
Replaced by #6912W3B002L
?
Manufacturer substitution
This part replaces 6912W3B002G. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$9.57 |
9% OFF
Phone Price: $10.57
Microwave Micro-Switch

See All Related Diagrams

Oven switch

Part #503387
Replaced by #3B73362F
?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.27 |
16% OFF
Phone Price: $6.27
Microwave Diode#6006

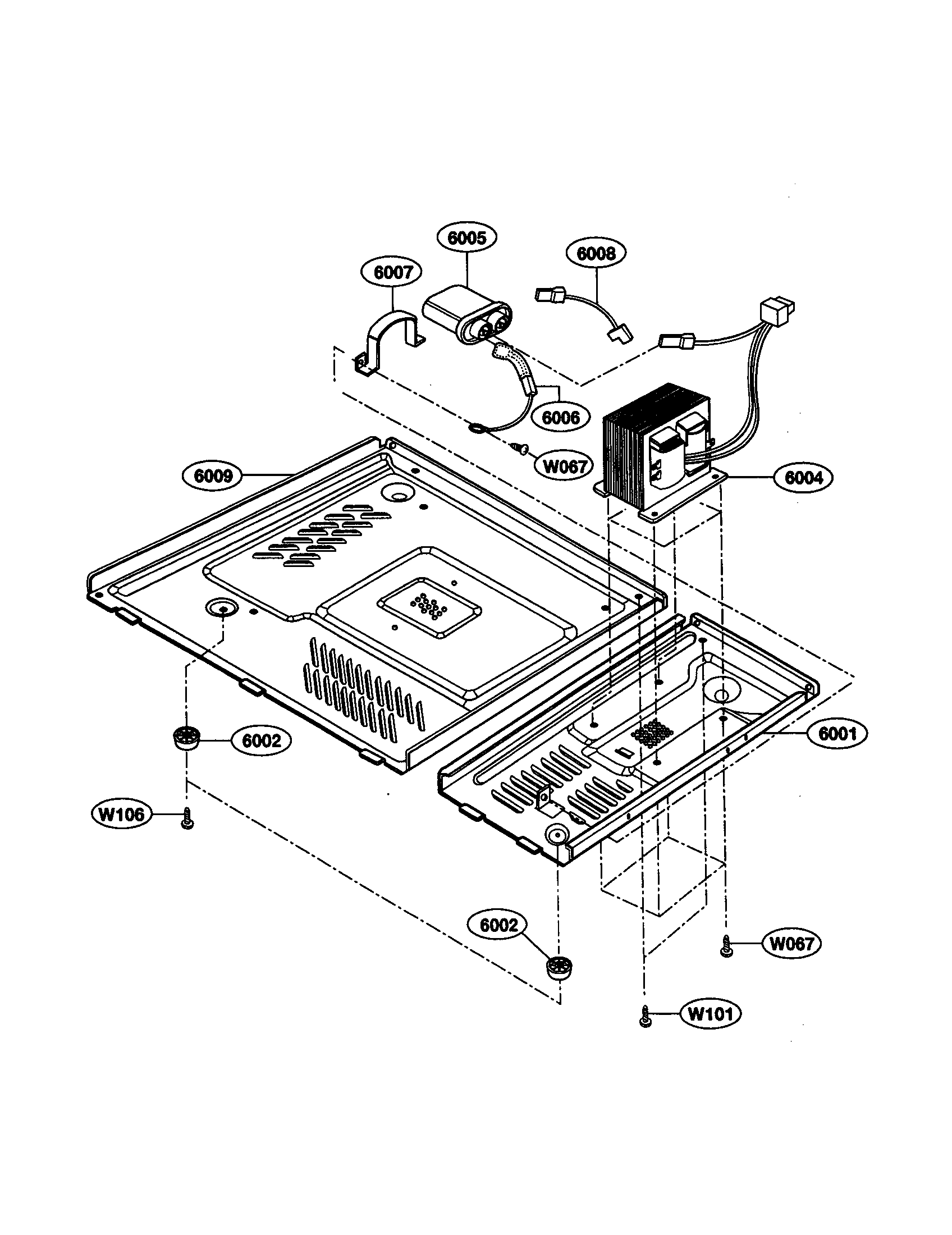

Base plate Diagram

High-voltage diode

Part #6021W3B001A
Replaced by #6851W1A002E
?
Manufacturer substitution
This part replaces 6021W3B001A. Substitute parts can look different from the original.
BEST SELLER
In Stock
$8.96 |
10% OFF
Phone Price: $9.96
Microwave Door Latch Housing and Interlock Switch Assembly#4000

Suction guide Diagram

Latch board

Part #3501W1A003H
Replaced by #3501W1A053A
?
Manufacturer substitution
This part replaces 3501W1A003H. Substitute parts can look different from the original.
In Stock
$20.77 |
19% OFF
Phone Price: $25.77
Microwave Screw

See All Related Diagrams

Microwave screw

Part #1TTL0402818
This item is not returnable
In Stock
$5.41 |
16% OFF
Phone Price: $6.41
Microwave Fuse#4010

Suction guide Diagram

Microwave fuse

Part #3B74133H
This item is not returnable
In Stock
$6.03
Microwave Screw

See All Related Diagrams

Microwave screw

Part #1SBF0402418
This item is not returnable
In Stock
$5.41 |
16% OFF
Phone Price: $6.41
Microwave Screw#W094

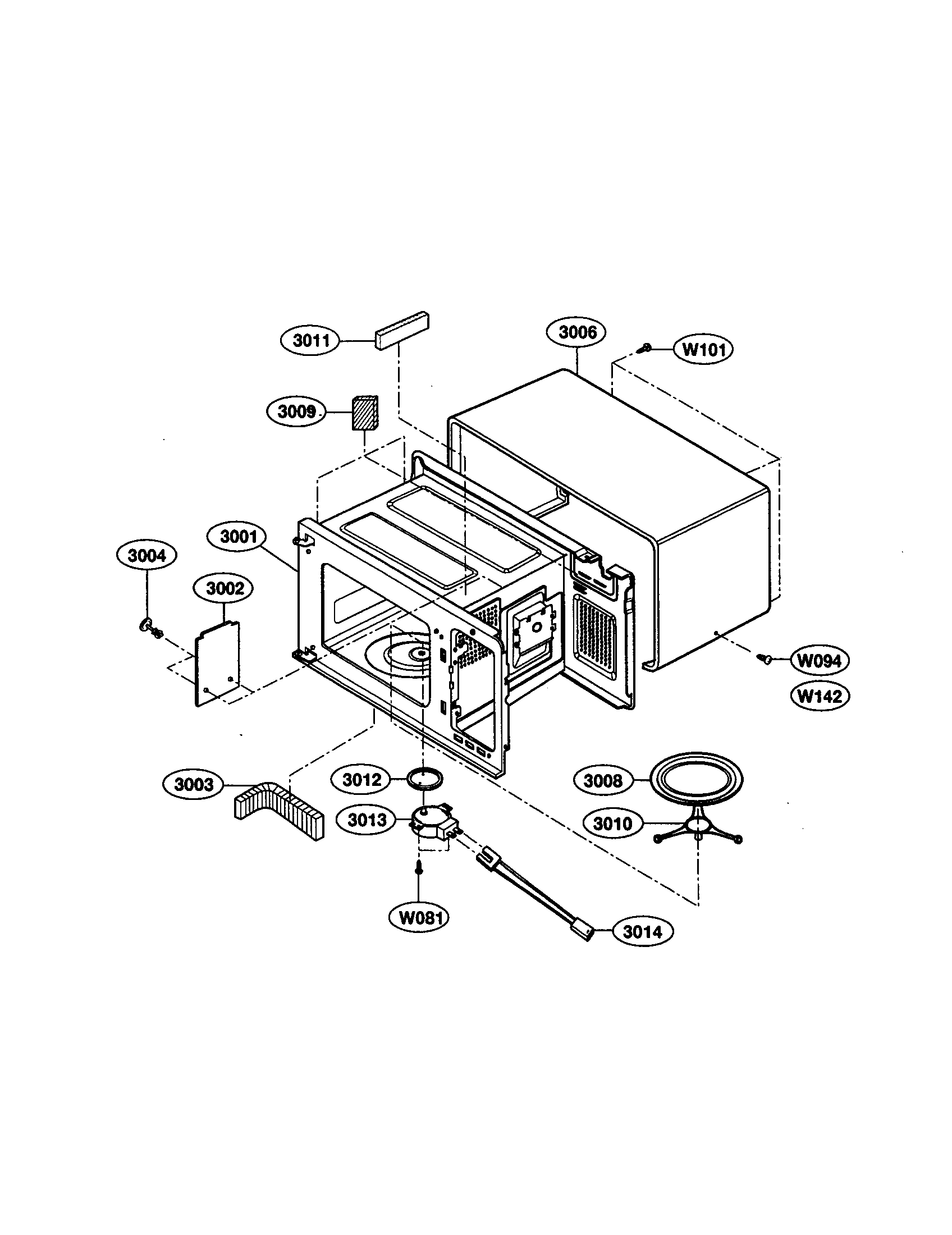

Oven cavity Diagram

Microwave screw

Part #1TTG0402422
This item is not returnable
In Stock
$5.41 |
16% OFF
Phone Price: $6.41
Magnetron#5002

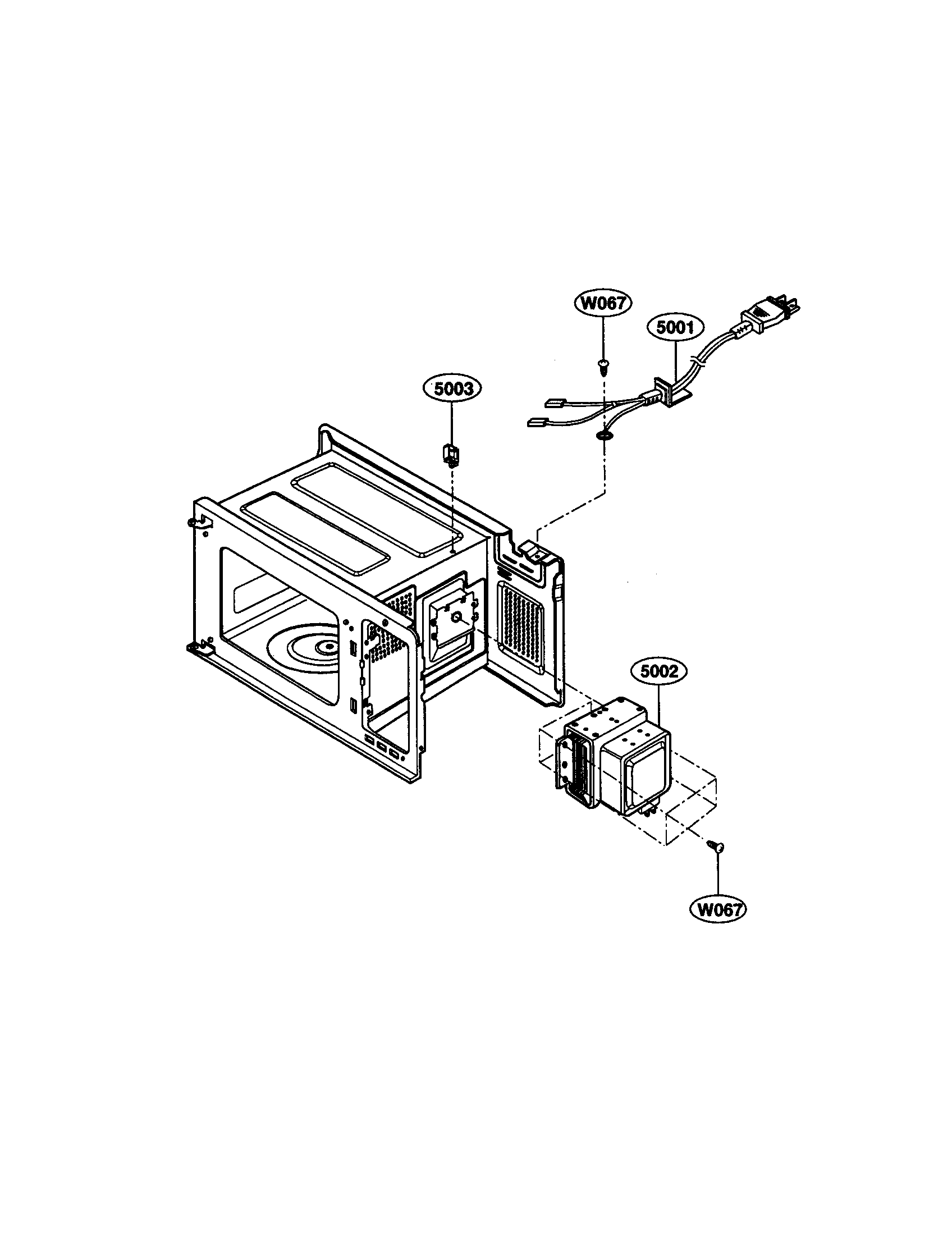

Oven interior Diagram

Magnetron

Part #2B73104A

The manufacturer no longer makes this part, and there's no substitute part
