Craftsman 234795420 line trimmer

Craftsman 234795420 line trimmer Parts

Here are the diagrams and repair parts for Craftsman 234795420 line trimmer, as well as links to manuals and error code tables, if available.

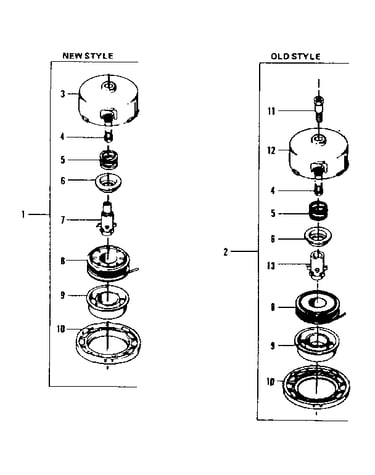

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 234795420 Line Trimmer

  • Line Trimmer Fuel Tank Cap for Craftsman 234795420 - Part 530014347

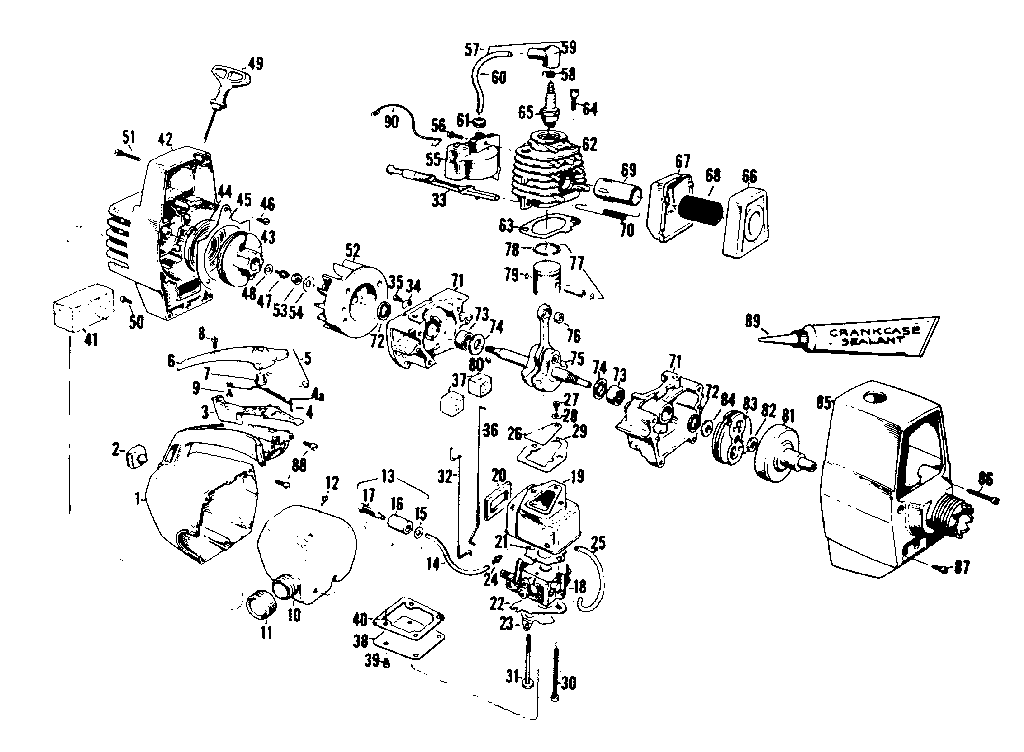

    Sears line trimmer diagram

    Cap

    Part #10294-01

    Replaced by #530014347

    Info Icon
    Manufacturer substitution
    This part replaces 10294-01. Substitute parts can look different from the original.
    In Stock
    $15.85
    11% OFF Phone Price : $17.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Ayp Chainsaw Fuel Line Fitting for Craftsman 234795420 - Part 530023877

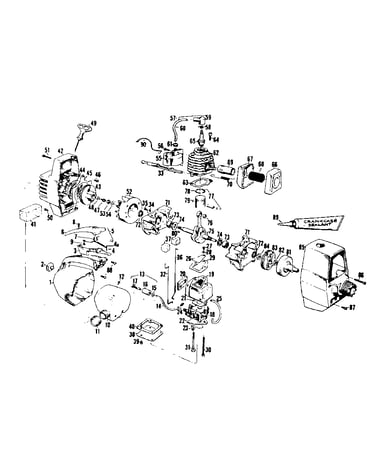

    Sears line trimmer diagram

    Fuel Connector

    Part #10307-01

    Replaced by #530023877

    Info Icon
    Manufacturer substitution
    This part replaces 10307-01. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.42
    16% OFF Phone Price : $6.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Ayp Hedge Trimmer Carburetor Rebuild Kit for Craftsman 234795420 - Part 530035185

    #NI

    All parts diagram

    Repair Kit

    Part #35185

    Replaced by #530035185

    Info Icon
    Manufacturer substitution
    This part replaces 35185. Substitute parts can look different from the original.
    In Stock
    $36.80
    14% OFF Phone Price : $42.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Weed Eater Hedge Trimmer Air Filter for Craftsman 234795420 - Part 530024371

    Sears line trimmer diagram

    Air Filter

    Part #10324-01

    Replaced by #530024371

    Info Icon
    Manufacturer substitution
    This part replaces 10324-01. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $10.55
    16% OFF Phone Price : $12.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Ayp Chainsaw Check Valve for Craftsman 234795420 - Part 530026119

    Sears line trimmer diagram

    Vent

    Part #10295-01

    Replaced by #530026119

    Info Icon
    Manufacturer substitution
    This part replaces 10295-01. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.97
    Minus Item
    Qty
    Plus Item
  • Weed Eater Line Trimmer Carburetor Diaphragm Gasket for Craftsman 234795420 - Part 504130906

    Throttle assembly diagram

    Gasket

    Part #35164

    Replaced by #504130906

    Info Icon
    Manufacturer substitution
    This part replaces 35164. Substitute parts can look different from the original.
    In Stock
    $37.03
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Washer for Craftsman 234795420 - Part 530015127

    Sears line trimmer diagram

    Washer

    Part #10337-01

    Replaced by #530015127

    Info Icon
    Manufacturer substitution
    This part replaces 10337-01. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.97
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Screw for Craftsman 234795420 - Part 503214974

    Sears line trimmer diagram

    Screw

    Part #10370-01

    Replaced by #503214974

    Info Icon
    Manufacturer substitution
    This part replaces 10370-01. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.97
    Minus Item
    Qty
    Plus Item
  • Flat Washer for Craftsman 234795420 - Part STD551025

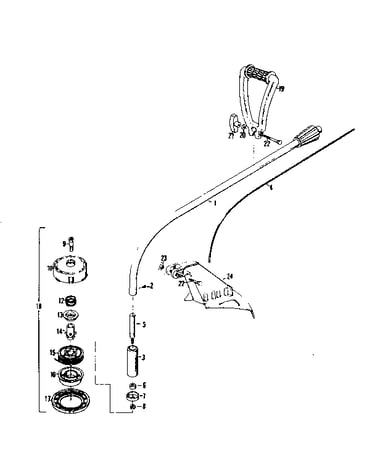

    Drive shaft housing diagram

    Washer

    Part #6772-00

    Replaced by #STD551025

    Info Icon
    Manufacturer substitution
    This part replaces 6772-00. Substitute parts can look different from the original.
    In Stock
    $36.61
    Minus Item
    Qty
    Plus Item
  • Line Trimmer Carburetor Diaphragm for Craftsman 234795420 - Part 503896701

    Throttle assembly diagram

    Diaphragm

    Part #35014

    Replaced by #503896701

    Info Icon
    Manufacturer substitution
    This part replaces 35014. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $103.12
    Minus Item
    Qty
    Plus Item
